Multimode Fibers new

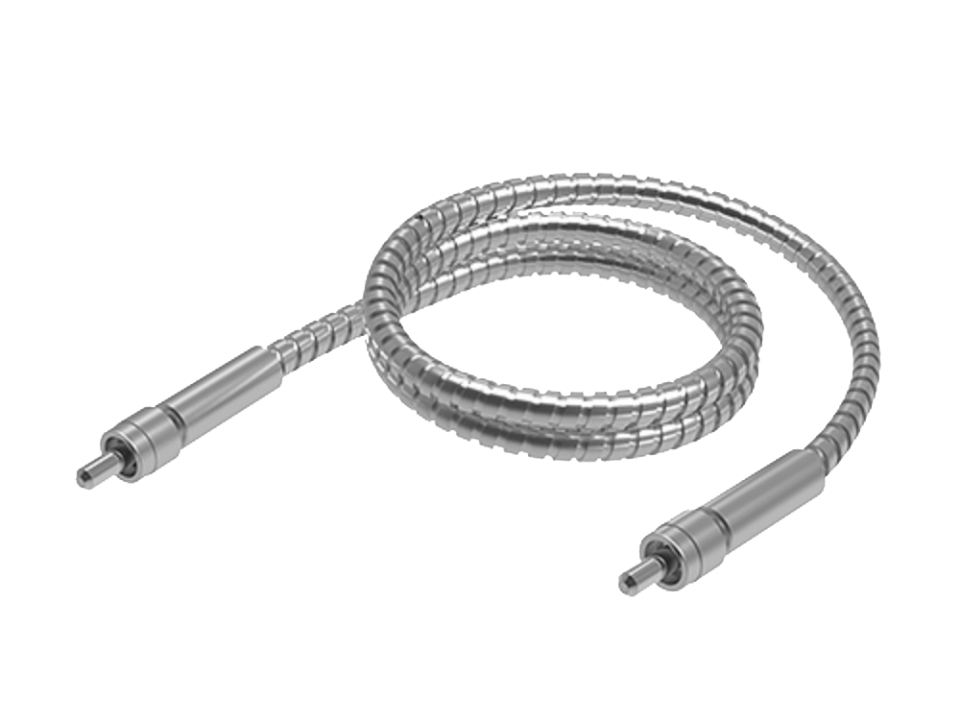

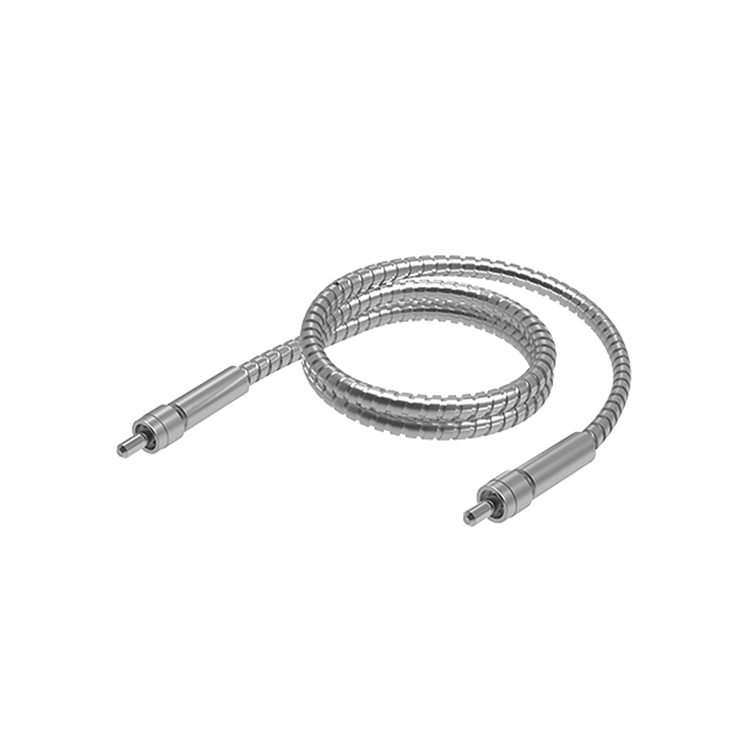

Our Multimode Fibers are durable and high-quality patch cords that consistently deliver uniform results with the minimal signal or energy variance. These products offer a wide range of fiber-optic cables, which can be made in a variety of lengths and configurations to meet your needs. We recommend that the fibers are used in the operation condition under 15 watts of optical power.



*Currency : US DOLLAR only
*CHECK the SPEC SHEET for the exact specifications of the products

Product Number Specific Description Product Size(mm) Availability Price(USD) Order
OF-CUS-200-PV-1 400-1700 nm, Fiber Core Size 0.2 mm Numerical Aperture 0.22, Length 1 m, Jacket Φ3 mm PVC Tube Connector : SMA to FC/APC IN STOCK TBD
OF-CUS-200-SS-1 400-1700 nm, Fiber Core Size 0.2 mm Numerical Aperture 0.22, Length 1 m, Jacket Φ4.6 mm Flexible Stainless Jacket Connector : SMA to FC/APC IN STOCK TBD
OF-LOH-200-PV-1 Low-OH(400-2000 nm), Fiber Core Size 0.2 mm Numerical Aperture 0.37, Length 1 m Connector : SMA to SMA IN STOCK TBD
OF-LOH-600-PV-1 Low-OH(400-2000 nm), Fiber Core Size 0.6 mm Numerical Aperture 0.37, Length 1 m Connector : SMA to SMA IN STOCK TBD
OF-LOH-1000-PV-1 Low-OH(400-2000 nm), Fiber Core Size 1 mm Numerical Aperture 0.37, Length 1 m Connector : SMA to SMA IN STOCK TBD
OF-LOH-1500-SS-1 Low-OH(400-2000 nm), Fiber Core Size 1.5 mm Numerical Aperture 0.37, Length 1 m Connector : SMA to SMA IN STOCK TBD
OF-HOH-200-PV-1 High-OH(250-1200 nm), Fiber Core Size 0.2 mm Numerical Aperture 0.22, Length 1 m Connector : SMA to SMA IN STOCK TBD
OF-HOH-400-PV-1 High-OH(250-1200 nm), Fiber Core Size 0.4 mm Numerical Aperture 0.22, Length 1 m Connector : SMA to SMA IN STOCK TBD
OF-HOH-600-PV-1 High-OH(250-1200 nm), Fiber Core Size 0.6 mm Numerical Aperture 0.22, Length 1 m Connector : SMA to SMA IN STOCK TBD
OF-HOH-800-PV-1 High-OH(250-1200 nm), Fiber Core Size 0.8 mm Numerical Aperture 0.22, Length 1 m Connector : SMA to SMA IN STOCK TBD
OF-HOH-1000-PV-1 High-OH(250-1200 nm), Fiber Core Size 1 mm Numerical Aperture 0.22, Length 1 m Connector : SMA to SMA IN STOCK TBD
OF-HOH-1500-PV-1 High-OH(250-1200 nm), Fiber Core Size 1.5 mm Numerical Aperture 0.22, Length 1 m Connector : SMA to SMA IN STOCK TBD
OF-BRD-400-PV-1 Broad spectrum fiber(200-2100 nm), Fiber Core Size 0.4 mm Numerical Aperture 0.22, Length 1 m Connector : SMA to SMA IN STOCK TBD
OF-BRD-600-PV-1 Broad spectrum fiber(200-2100 nm), Fiber Core Size 0.6 mm Numerical Aperture 0.22, Length 1 m Connector : SMA to SMA IN STOCK TBD
LG-Basic GS10-1000F/Pp G.O.F. Φ10mmx 1M SUS FLEXIBLE TUBE IN STOCK TBD
LG-Ring Ring Φ63.5mmx 0.76M Light Inlet 350℃ heat resistance specification SUS FLEXIBLE TUBE IN STOCK TBD
LG-Line Line 250 x 0.55mm x 1.1M Light Inlet 350℃ heat resistance specification SUS FLEXIBLE TUBE IN STOCK TBD

/ Key Product Advantages

  • Can resist up to 15 watts of optical power
  • Superior quality and handling for demanding applications
  • Ideal for research, industrial use, or other applications

High Quality

Our Multimode Fibers are durable and high-quality patch cords that consistently

deliver uniform results with the minimal signal or energy variance.

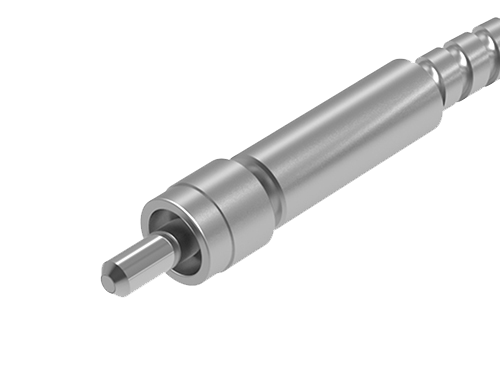

SMA Type

Our Multimode Fibers have SMA Type connectors which can be applied in different configurations.
