Mono

Any λ(lamda) any Δλ (delta lamda)





Broadband spectral range

255–1700 nm



High damage threshold

< 2 MW/(CW)

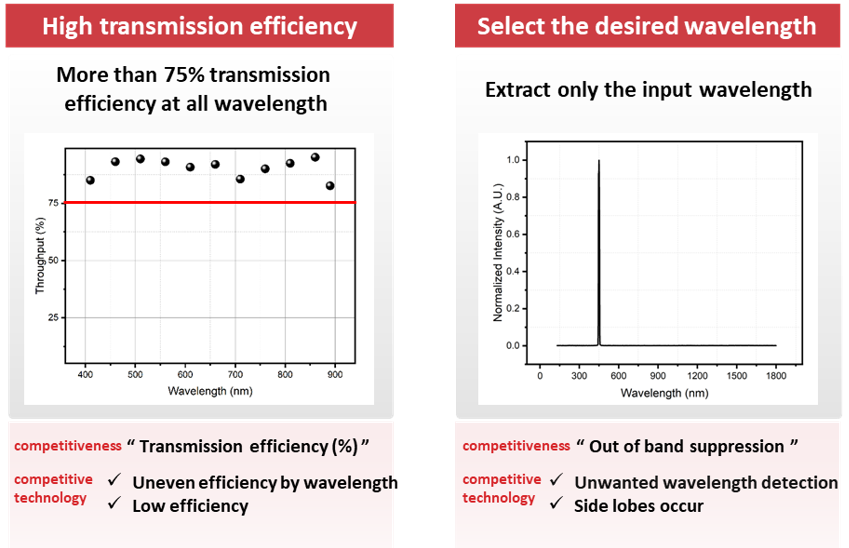

High throughput

> 75 %



Diverse aperture size

5 or 10 mm



Great out of band blocking

Mono
                 OD 10 in tuning range,                   OD 5 in spectral range up to 1700 nm



Does not affect beam shape

Distortion free











Product Highlights

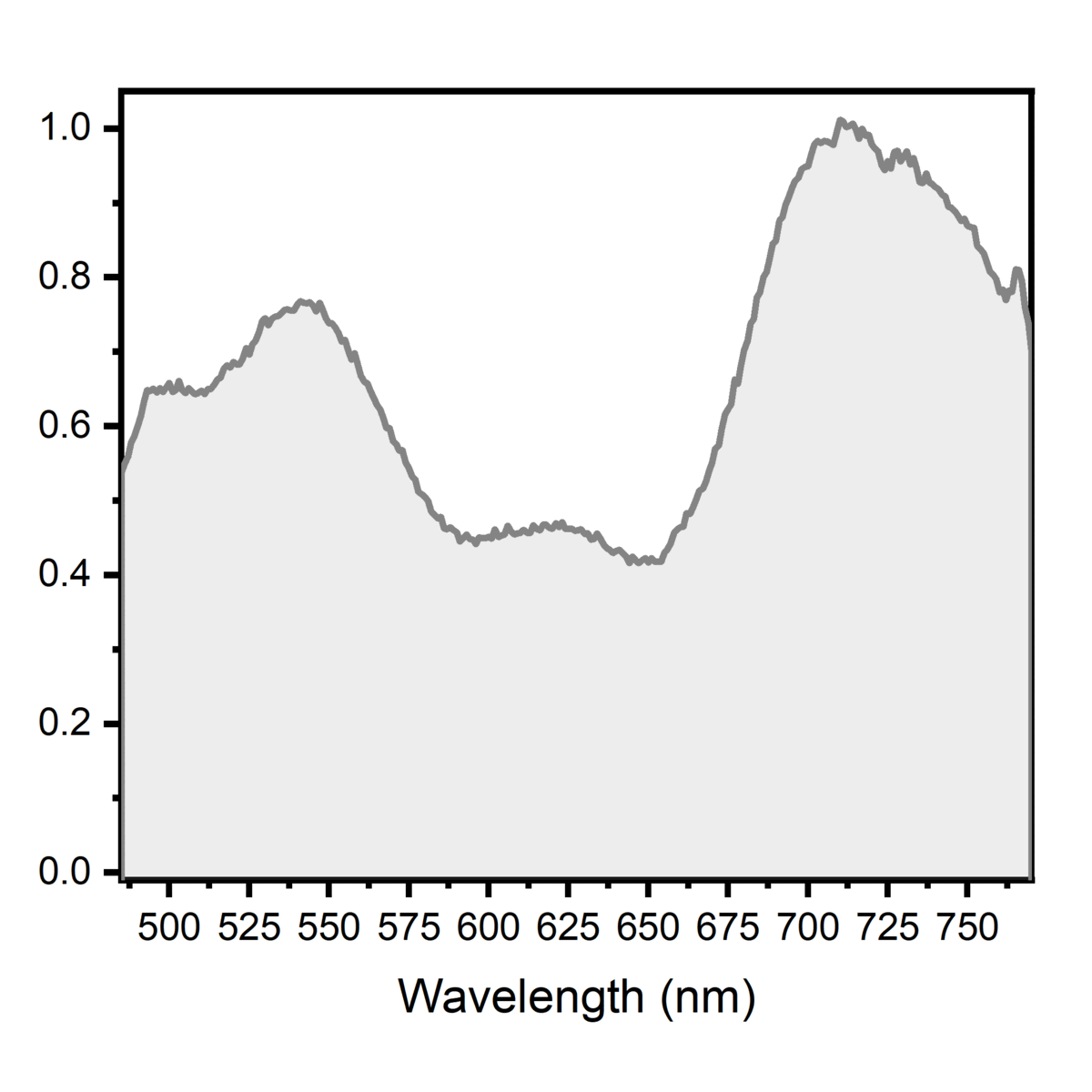

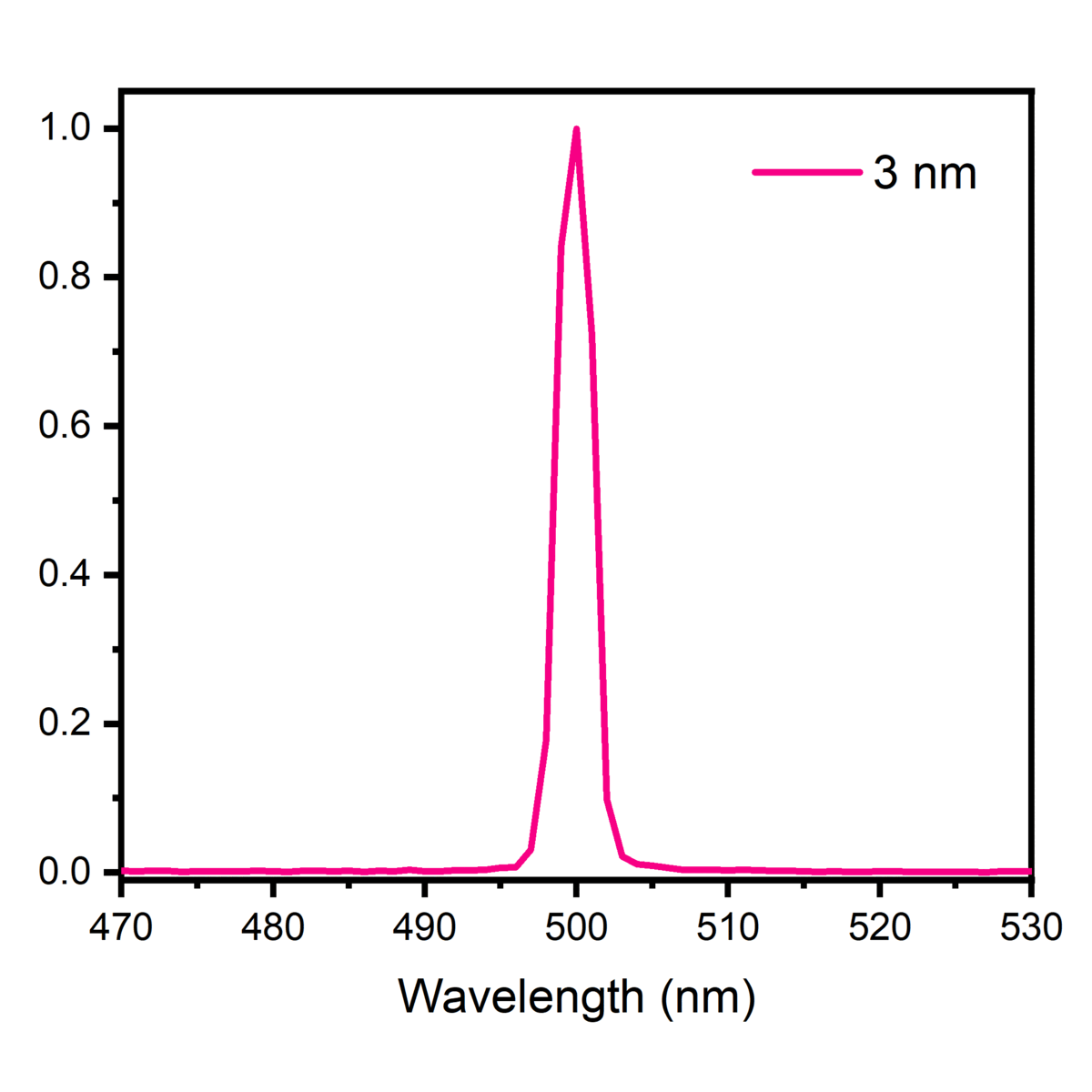

This data shows the tunability of CWL and FWHM.

Once the wavelength, FWHM, and time delay are set, the system accurately outputs the configured wavelength.













Who Needs FWS-Mono?

For users who need precise spectral control in compact, flexible systems.

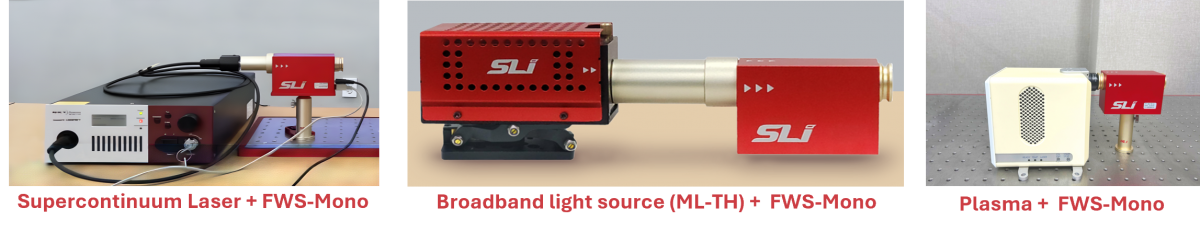

1. Build a tunable light source from white light

 - Select wavelengths in 1 nm steps

 - Replace AOTFs, monochromators, or LLTFs with software control

 - Use safely with femtosecond or high-power lasers

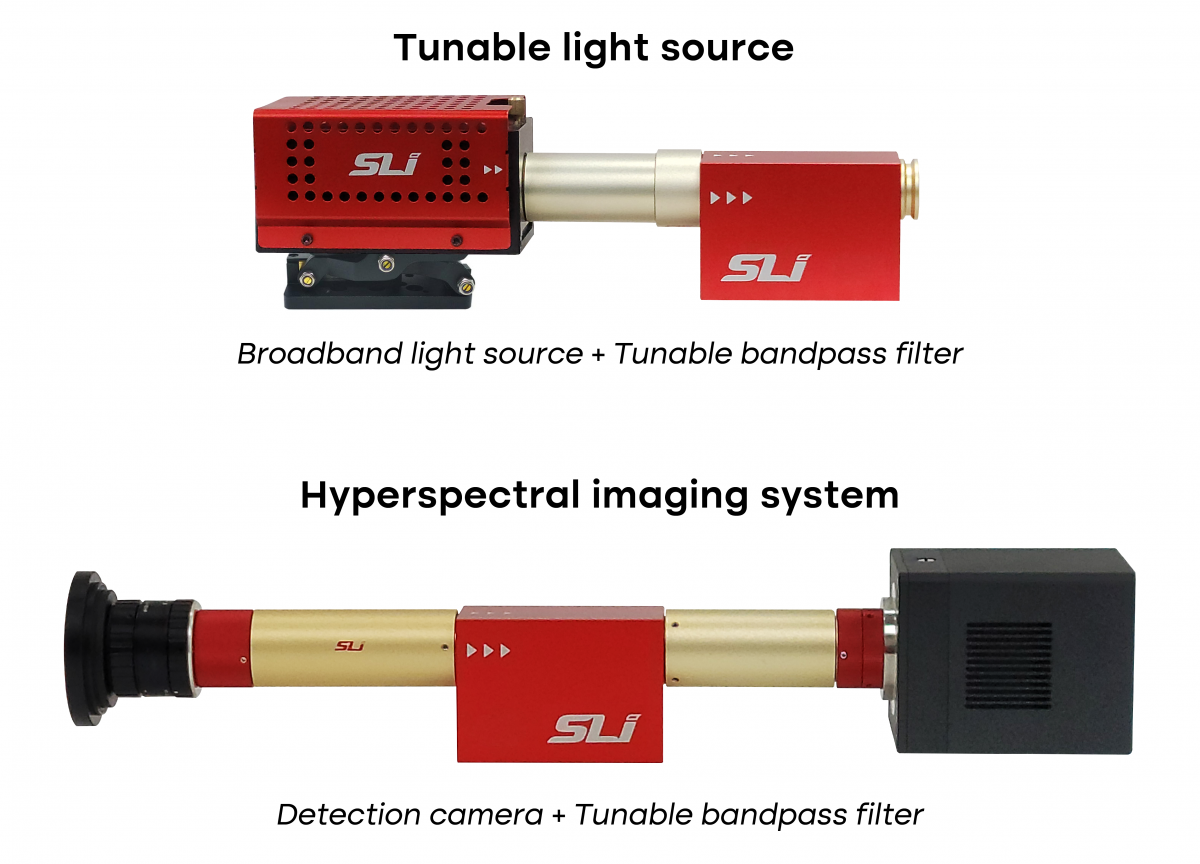

Tunable light source







2. Enable precise imaging or analysis

– Create a hyperspectral imaging system

– Analyze specific wavelengths with high accuracy

– Adjust bandwidth dynamically for various conditions

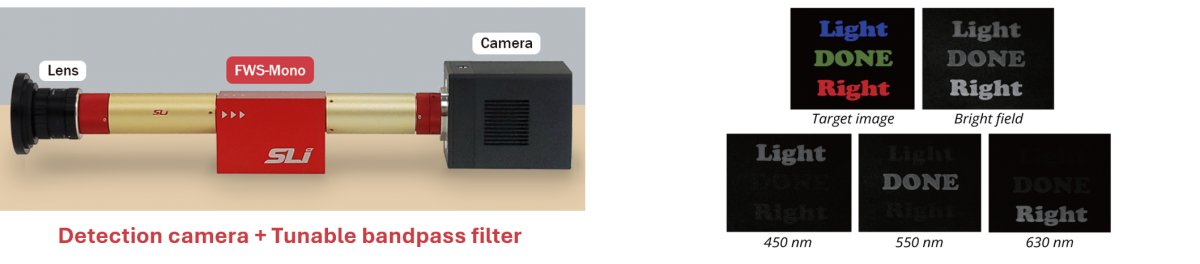

Hyperspectral imaging system













Specifications

  Product
  Model   Mono-A5   Mono-A10
  Spectral range (nm)1)   255–1700 nm
  Bandwidth (FWHM) (nm) (nominal)2)   Max: 3–15 nm / Min: 7–13 nm
  Aperture size (mm)   5 mm   10 mm
  Out of band Blocking3)   OD 10 in tuning range, OD 5 in spectral range up to 1700 nm
  Step size of center                                         wavelength & Bandwidth (nm)   1 nm
  Damage threshold   Pulse : Peak Fluence < 1.75 joules/cm2 (~70 um spot diam., 10 ns, 10 Hz, 532 nm LASER)                           CW (Continuous wave) : Intensity < 2 MW/cm2 (1064 nm, ~ 90 m spot diam.)
  Transmission efficiency (%) (nominal) 4)   > 75 % (avg.)
  Scanning speed (ms)   30–300 ms (depending on step size)5)
  Software   FWS-Auto ver 3.1
  Dimension (L x W x H, mm)   48 mm x 92 mm x 64 mm
  Electric requirement   AC 100–240 V, 50/60 Hz
  Data interface   USB 2.0
  Weight (kg)   0.4 kg

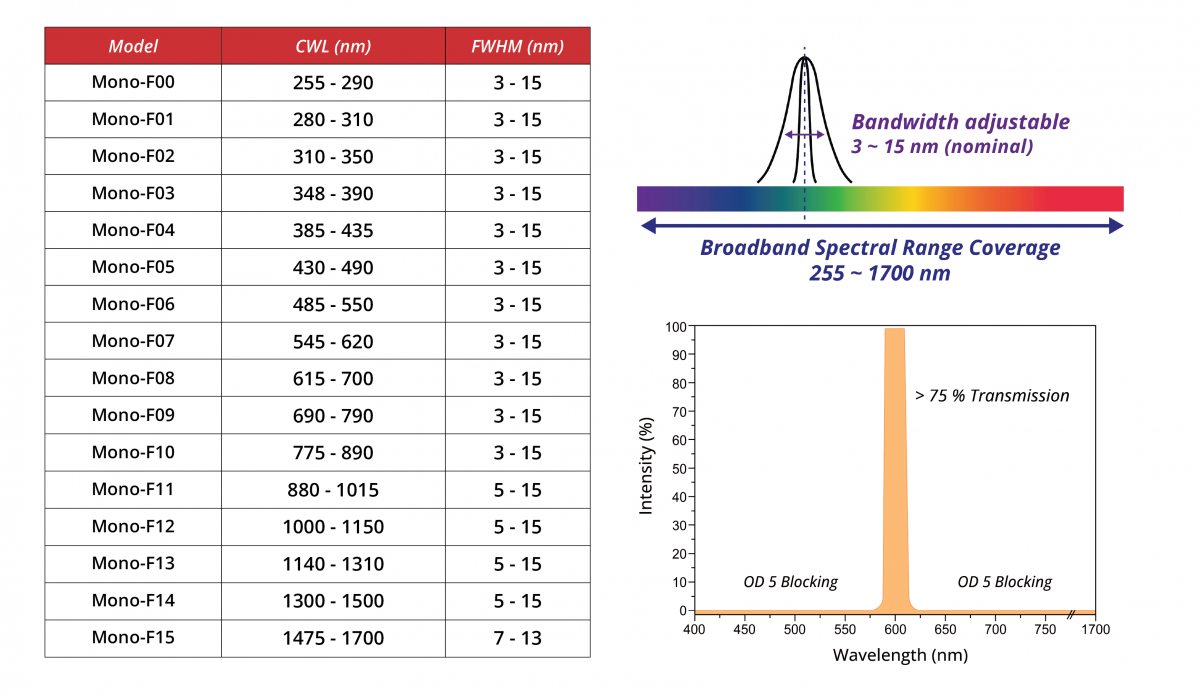

Choose Your Model: Mono



Select the filter slot that covers your desired wavelength range.
The center wavelength and bandwidth (FWHM) are tunable via software within the predefined range of each model.



Step 1: Select a filter model based on your target wavelength range





Step 2: Choose the appropriate aperture size for your light source



 Mono-A5  5 mm Suitable for lasers with small beam size, such as supercontinuum lasers
 Mono-A10  10 mm Suitable for light sources with large beam size (tungsten-halogen, plasma, LED)











Application



Main Category Sub-Application Area

 Basic Scientific Research  (Physics, Chemistry, Optics, etc.)

  General Optical Experimentation & Photo Detection
  Precision Spectral Measurements with Broadband Sources
  Laser-Based Systems
  Adaptive Optics & High-Precision Optical Metrology (e.g., piston sensing)
  Holographic & Interferometric Measurements
  Quantum Computing & Quantum Optics
  Life Sciences & Biotechnology   Fluorescence Imaging & Microscopy
  Laser Scanning Confocal Microscopy
  Cell Analysis, Drug Discovery & Screening
  Optogenetics
  Bio-inspired Photoreceptor Research & Artificial Visual Systems
  Materials Science & Advanced Materials Research   Photoluminescence (PL) & Spectroscopy
  Nearfield Optics & Advanced Optical Phenomena                                                 (e.g., Magnetic Light-   Matter Interactions)
  Supercontinuum Laser-based Spectral Measurements
  Thin Film & Nanomaterial Analysis
  Industrial Metrology & Quality Control / Sensor Calibration   High-Precision Sensor Calibration & Photo Detection Systems
  Display & Camera Testing
  Optical Component Characterization
  Medical Diagnostics & Environmental Analysis   Non-invasive Medical Imaging
  Water & Air Quality Monitoring
  Hyperspectral Imaging   -
  Energy & Photovoltaics   Solar Cell Spectral Responsivity Testing

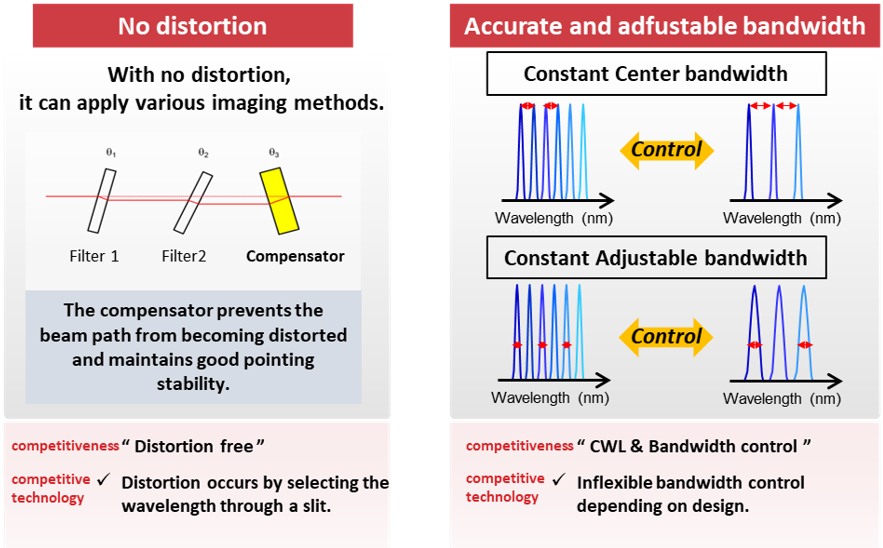

Why Choose FWS?

Comparison with Conventional Filter Technologies











Input and Output Linkers

Various accessories for the FWS including input and output linkers, extender and mounting bases.
