CenterLine-A5 new

The Flexible Wavelength Selector utilizes TwinFilm™ technology to deliver the tunable wavelength filtering characteristics of a grating monochromator together with the circular aperture imaging capabilities of a bandpass filter.

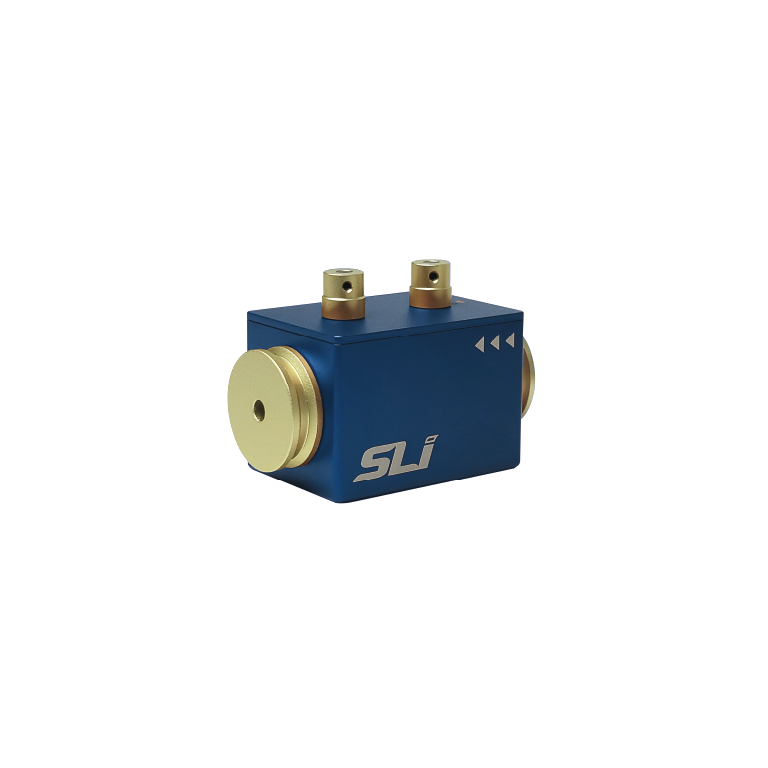

The Flexible Wavelength Selector (FWS) CenterLine is a manually tunable filter that features two knurled knob – one for adjusting the center wavelength with a fixed bandwidth of around 20 nm and one for compensating the beam direction offset.





A5 : Suitable for lasers, supercontinuum lasers

A10 : Suitable for light sources with large beam size (tungsten-halogen, plasma, LED)





*Note : For the optimal performance of Wavelength Selectors, the incident light should be collimated.



*Note : F00 - F02 models can block up to 600 nm.

*Currency : US DOLLAR only
*CHECK the SPEC SHEET for the exact specifications of the products

Product Number Product Size(mm) Spectral Range FWHM Aperture Size Transmission Availability Price(USD) Order
CL-F00-A5 40 x 58 x 40 255 - 290 nm 20 nm (nominal) 5 mm > 75 % IN STOCK $1,400
CL-F01-A5 40 x 58 x 40 280 - 310 nm 20 nm (nominal) 5 mm > 75 % IN STOCK $1,400
CL-F02-A5 40 x 58 x 40 310 - 350 nm 20 nm (nominal) 5 mm > 75 % IN STOCK $1,400
CL-F03-A5 40 x 58 x 40 348 - 390 nm 20 nm (nominal) 5 mm > 75 % IN STOCK $1,400
CL-F04-A5 40 x 58 x 40 385 - 435 nm 20 nm (nominal) 5 mm > 75 % IN STOCK $1,400
CL-F05-A5 40 x 58 x 40 430 - 490 nm 20 nm (nominal) 5 mm > 75 % IN STOCK $1,400
CL-F06-A5 40 x 58 x 40 485 - 550 nm 20 nm (nominal) 5 mm > 75 % IN STOCK $1,400
CL-F07-A5 40 x 58 x 40 545 - 620 nm 20 nm (nominal) 5 mm > 75 % IN STOCK $1,400
CL-F08-A5 40 x 58 x 40 615 - 700 nm 20 nm (nominal) 5 mm > 75 % IN STOCK $1,400
CL-F09-A5 40 x 58 x 40 690 - 790 nm 20 nm (nominal) 5 mm > 75 % IN STOCK $1,400
CL-F10-A5 40 x 58 x 40 775 - 890 nm 20 nm (nominal) 5 mm > 75 % IN STOCK $1,400
CL-F11-A5 40 x 58 x 40 880 - 1015 nm 20 nm (nominal) 5 mm > 75 % IN STOCK $1,500
CL-F12-A5 40 x 58 x 40 1000 - 1150 nm 20 nm (nominal) 5 mm > 75 % IN STOCK $1,500
CL-F13-A5 40 x 58 x 40 1140 - 1310 nm 20 nm (nominal) 5 mm > 75 % IN STOCK $1,500
CL-F14-A5 40 x 58 x 40 1300 - 1500 nm 20 nm (nominal) 5 mm > 75 % IN STOCK $1,500
CL-F15-A5 40 x 58 x 40 1475 - 1700 nm 20 nm (nominal) 5 mm > 75 % IN STOCK $1,500

/ Key Product Advantages

  • Broad wavelength tuning
  • Fixed bandwidth (FWHM 20 nm, nominal)
  • Circular uniform aperture
  • Compact optomechanical device
  • High (10-6) out of band rejection

/ Optical Specifications

  • Transmission : > 75%   (in proportion to an input light power / FWHM > 10 nm)
  • Tunable spectral wavelength : 255 - 1700 nm
  • Out-of-band blocking : OD 6 (0.0001 % Transmission)
  • FWHM : fixed at nominal value of 20 nm
  • F00 - F02 : Blocks up to 600 nm
  • F03 - F15 : Blocks up to 1700 nm
  • Stable operation span : 5 years



/ General Specifications

  • Aperture size : 5 mm

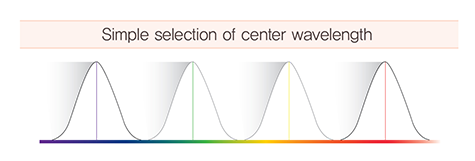

Center Wavelength Adjustable

The center wavelength is adjustable to any value ranging between 255 - 1700 nm. (FWHM : 20 nm (nominal))





Simple Manual Adjustment

Separate knobs enable independent manual setting of both the center wavelength and the transmission bandwidth. (Gear 1:1)





Imaging Detection

Simple integration into microscopes, telescopes, cameras, light sources and other common photonic instruments.











High Out-of-band Rejection

High (10-6) out of band rejection avoids unwanted spectral leakage

and associated background noise typical of liquid crystal based filtering systems.
