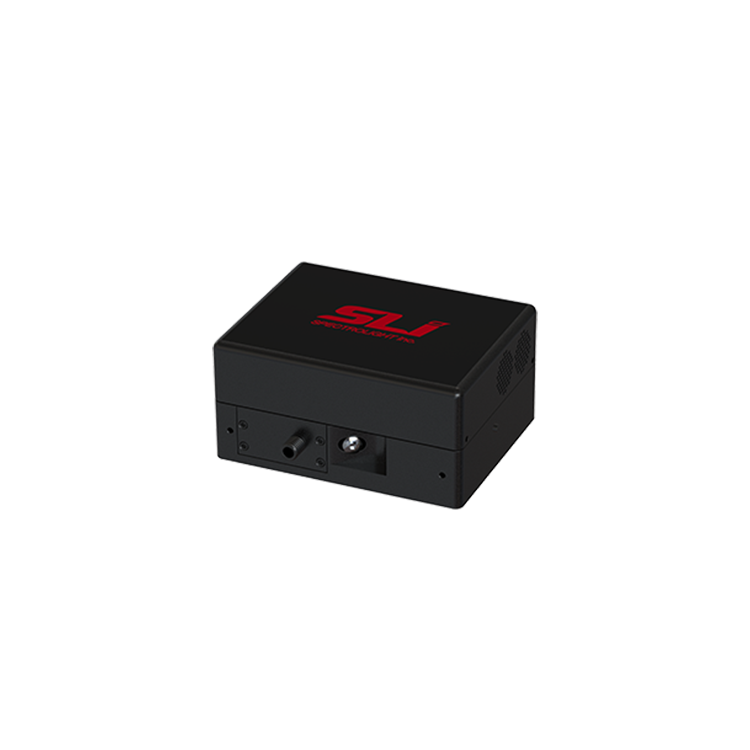

SP245

Low Noise Compact CCD Spectrometer             

  • Low dark noise and stray light

  • Flexible optical input direct to slit or via fiber

  • Designed from the ground up for a wide range of applications

  • High speed data acquisition

  • Standard design allows up to 200-1050nm range

  • USB 1.1/2.0 interface with 16bit

  • Supports up to 8 USB multi-channel configuration

  • NEW UV enhancing coating

*Currency : US DOLLAR only
*CHECK the SPEC SHEET for the exact specifications of the products

Product Number Specific Description Product Size(mm) Availability Price(USD) Order
SP-245 Low noise compact CCD spectrometer IN STOCK $3,300

/ Detector :

     Sony ILX511 (UV Enhanced Coated)

         ▶ Number of Pixels : 2048

         ▶ Sensing Pixel Size : 14 μm X 200 μm

         ▶ Sensitivity : 180V/(lx s)@660 nm

         ▶ Well depth : 62,500e-



/ Dark Noise RMS : < 35 RMS counts @ 35 msec

/ Signal to noise ratio : 250:1

/ Fiber Coupler : SMA905 of FC standard



/ Wavelength Range :

       Full Range : 200 ~ 1050 nm
       UV Range : 200 ~ 450 nm
       VIS Range : 380 ~ 760 nm
       NIR Range : 550 ~ 1050 nm



Order Sorting Filter : Longpass filter or linear variable filter installed per wavelength coverage

Optical Resolution : 0.3 – 10 nm FWHM

Stray Light Level : < 0.03% @632 nm (<0.1% AVG)

Computer interface : USB 1.1/2.0 compatible

Min. Exposure Time : 1 msec

Trigger Mode : Free Run S/W Trigger H/W Trigger

Operation System : Windows 7/10 (32/64 bit)

SDK Support : Visual C++ / Visual Basic / LabVIEW

Dimensions/Weight : 90mm X 70mm X 44 mm / 0.4 Kg

High Performance

SP245 uses SONY ILX511 detectors ideal for wide range of applications.





High Signal To Noise Ratio

The array driver electronics have been designed for highly sensitive yet stable operation with a signal to noise ratio of  250 : 1.
