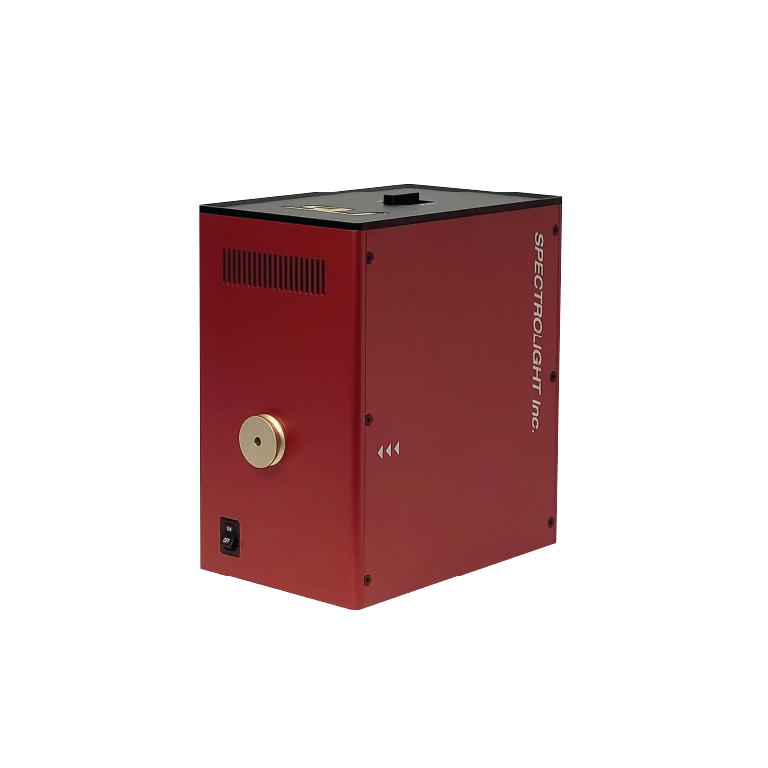

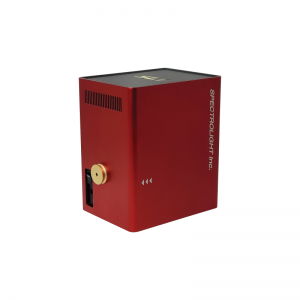

FWS-Poly new

The Flexible Wavelength Selector Poly (FWS-Poly) is a tunable filter which utilizes TwinFilm™ technology to provide a simple software control (scanning or setting) of the center wavelength and the bandwidth via a USB communication. The bandwidth can be adjusted from around 3 to 15 nm (nominal) depending on the specific model.



FWS-Poly is compatible with any type of broadband lamps or supercontinuum sources. Accessories are available here. For more information about compatibility please contact us at info@spectrolightinc.com.





*Note : For the optimal performance of Wavelength Selectors, the incident light should be collimated.

*Currency : US DOLLAR only
*CHECK the SPEC SHEET for the exact specifications of the products

Product Number Product Size(mm) Spectral Range FWHM Aperture Size Transmission Availability Price(USD) Order
FWS-Poly-UV
(Promotion Deal)
170 x 129 x 200 255 ~ 400 nm 3 ~ 15 nm 5 mm > 75 % LEADTIME $32,000
FWS-Poly-VIS
(Promotion Deal)
170 x 129 x 200 350 ~ 890 nm 3 ~ 15 nm 5 mm > 75 % LEADTIME $29,900
FWS-Poly-NIR
(Promotion Deal)
170 x 129 x 200 615 ~ 1015 nm 3 ~ 15 nm 5 mm > 75 % LEADTIME $29,900
FWS-Poly-SWIR
(Promotion Deal)
170 x 129 x 200 1005 ~ 1650 nm 5 ~ 15 nm 5 mm > 75 % LEADTIME $32,000
FWS-Poly-IR-Plus
(Promotion Deal)
170 x 129 x 200 615 ~ 1650 nm 3 ~ 15 nm 5 mm > 75 % LEADTIME $35,000
FWS-Poly-Custom 170 x 129 x 200 ~ User Defined nm 3 ~ 15 nm 5 mm > 75 % LEADTIME $0

/ Key Product Advantages

  • Fast software-controlled wavelength tuning
  • Software bandwidth adjustment (FWHM 3 – 15 nm, nominal)
  • Circular aperture (5 mm)
  • High (106) out of band extinction
  • Compact Size (170x129x200 mm)

/ Optical Specifications

  • Transmission: > 75%  (in proportion to an input light power / FWHM > 10 nm)
  • Spectral Range :  255 ~ 1650 nm
  • Center Wavelength accuracy (nominal) : ± 0.5 nm
  • FWHM Range
           - 255 ~ 790 nm : 3 ~ 15 nm
           - 880 ~ 1505 nm : 5 ~ 15 nm
           - 1475 ~ 1650 nm : 7 ~ 13 nm
  • FWHM resolution : 1 nm
  • Out-of-Band Blocking : OD 6 (0.00001 % Transmission)
  • Stable operation span : 5 years

/ General Specifications

  • Dimensions: 170 x 129 x 200 mm
  • Aperture Size: 5 mm
  • Input Power: 12 V , 5A
  • Data Interface: USB



Broadband Wavelength and Adjustable Bandwidth

Wavelength becomes tunable in the broadband range and the transmission bandwidth becomes adjustable.





Applications with Various Light Sources

- NKT, LEUKOS, YSL Supercontinuum lasers
- Energetiq, ISTEQ Laser-Driven Light Source
- LED, Xenon and other lamp types







Imaging Detection

Versatile Applications

- Fluorescent Imaging
- Hyperspectral Imaging
- Global Raman Imaging





High Out-of-band Extinction

High (106) out-of-band extinction avoids unwanted spectral leakage and

associated background noise typical of liquid crystal-based filtering systems.







Simple Software Control

Simple and Easy control of the center wavelength and the transmission bandwidth with the automated software.

Custom wavelength scanning, setting and stepping are supported.
