Accessories

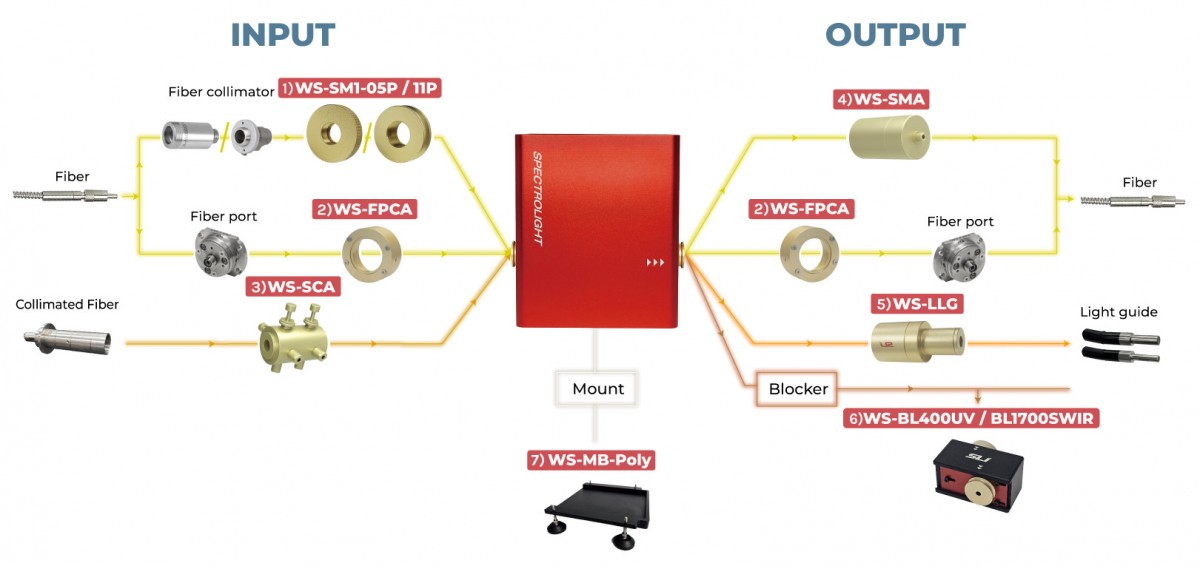

Optical Connection Path for FWS

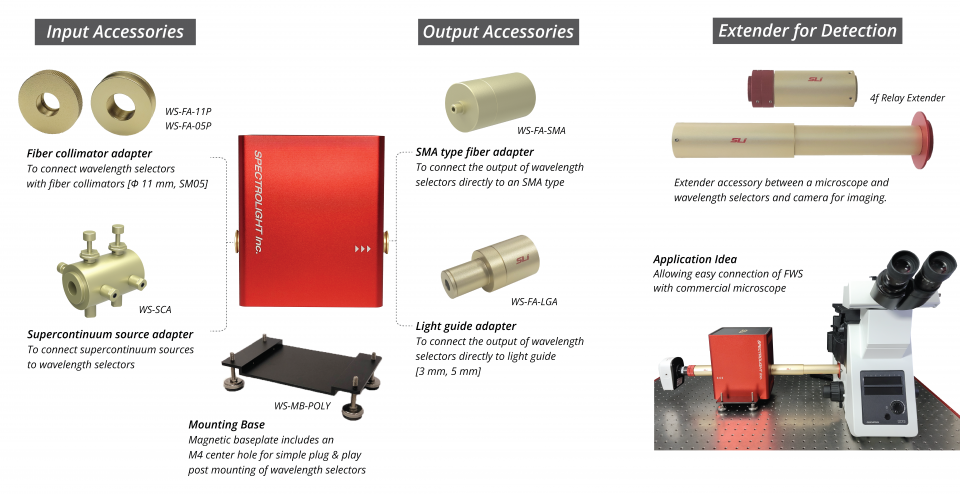

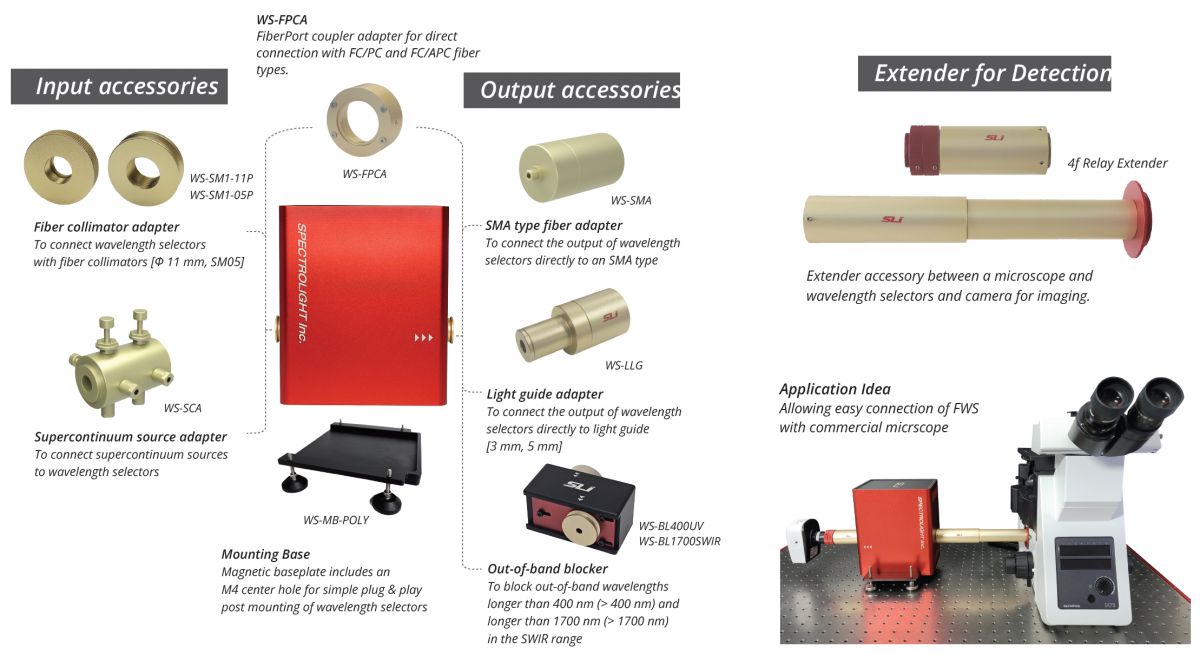

Spectrolight accessory configuration example

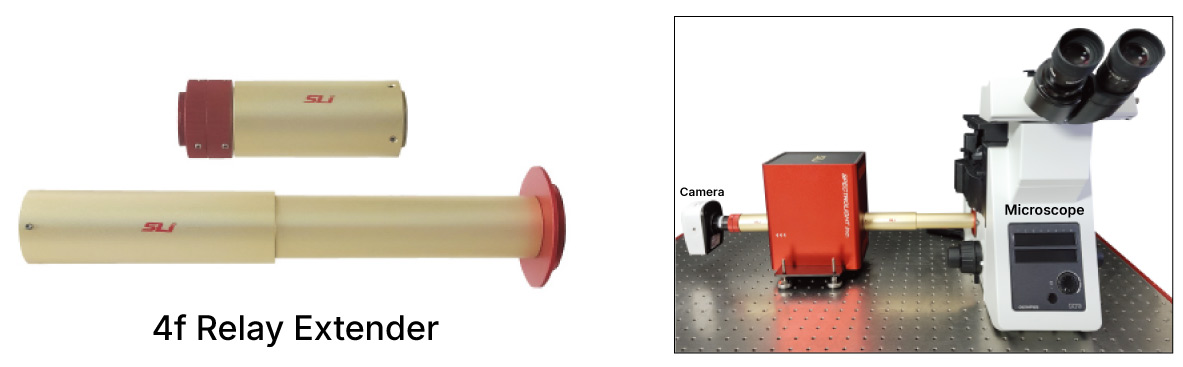

Extender for Detection
An extender accessory for easily connecting a commercial microscope
with a wavelength selector and camera for imaging.
| 1-1) WS-SM1-05P |
Input accessory for connecting commercial fiber collimators with a housing outer diameter of 11 mm to the FWS. - Allows SMA, FC/PC and FC/APC type fiber compatibility
|
| 1-2) WS-SM1-11P |
Input accessory for connecting commercial fiber collimators with SM05 external threads(0.535"-40) to the FWS. - Allows SMA, FC/PC and FC/APC type fiber compatibility
|
| 2) WS-FPCA |
FiberPort coupler adapter for direct connection with FC/PC and FC/APC fiber types. (Can be used for both input and output of FWS.) * Recommended for use with lasers
|
| 3) WS-SCA |
Input accessory for connecting supercontinuum laser light sources. - SCAY model is for connection with supercontinuum laser of SLi. - SCAN model is for connection with supercontinuum laser of NKT.
|
| 4) WS-SMA |
Output accessory for connecting SMA type fiber as an output.
|
| 5) WS-LLG |
Output accessory for connecting liquid light guide (LLG) as an output. - Comes in 3 mm and 5 mm models.
|
|
Output accessories for blocking out-of-band wavelengths - WS-BL400UV : Blocking longer than 400 nm -> To isolate UV wavelengths - WS-BL1700SWIR : Blocking longer than 1700 nm -> To isolate wavelengths between 400–1700 nm
|
|
| 7) WS-MB-Poly |
Magnetic baseplate includes an M4 center hole for simple plug & play post mounting of wavelength selectors. *Note : For Mono and Manual models, click here to view their mounting bases.
|
Note : For detailed specifications and compatible accessories, please refer to the product page or inquiry form.
