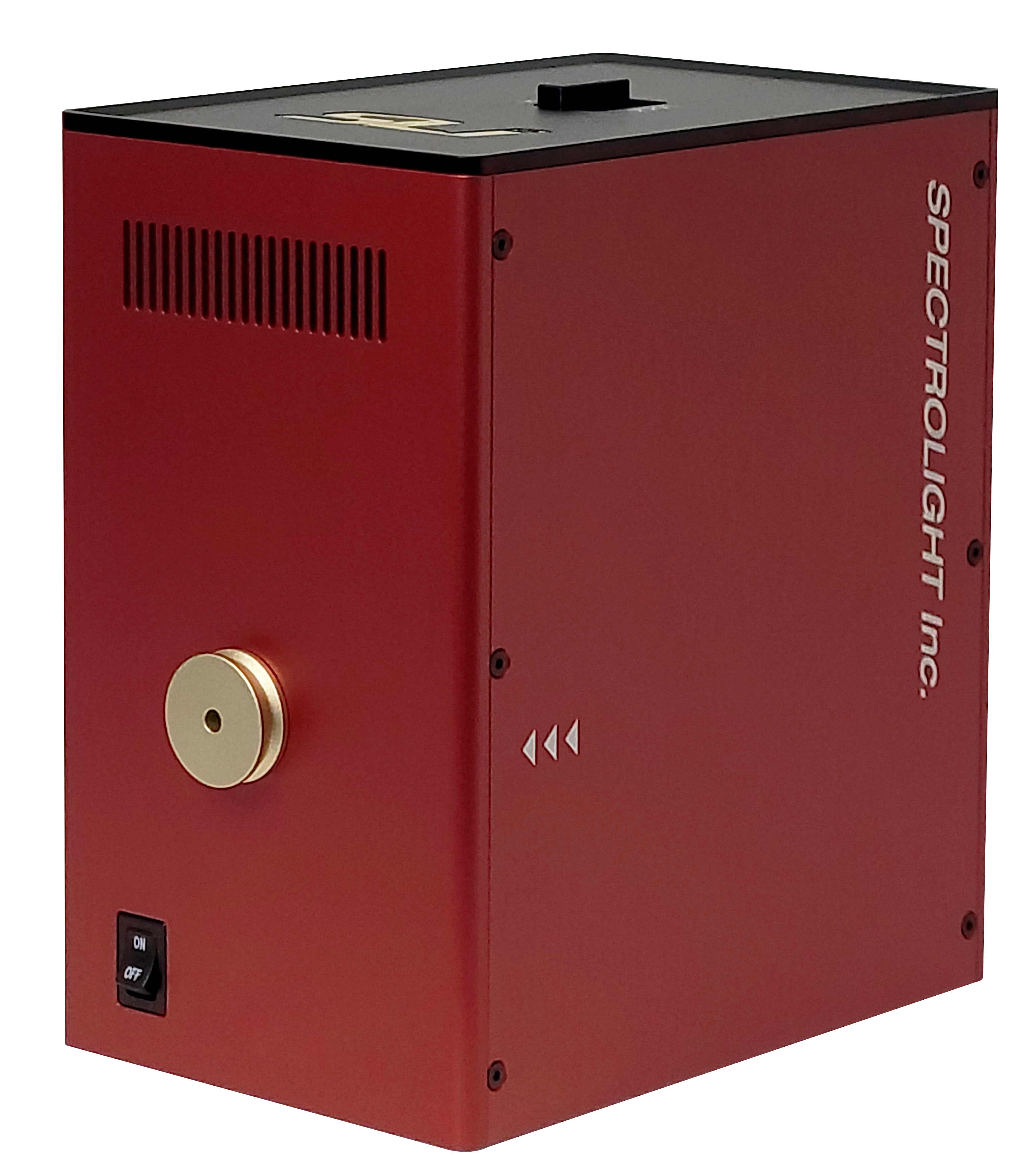

Poly















Product Highlights

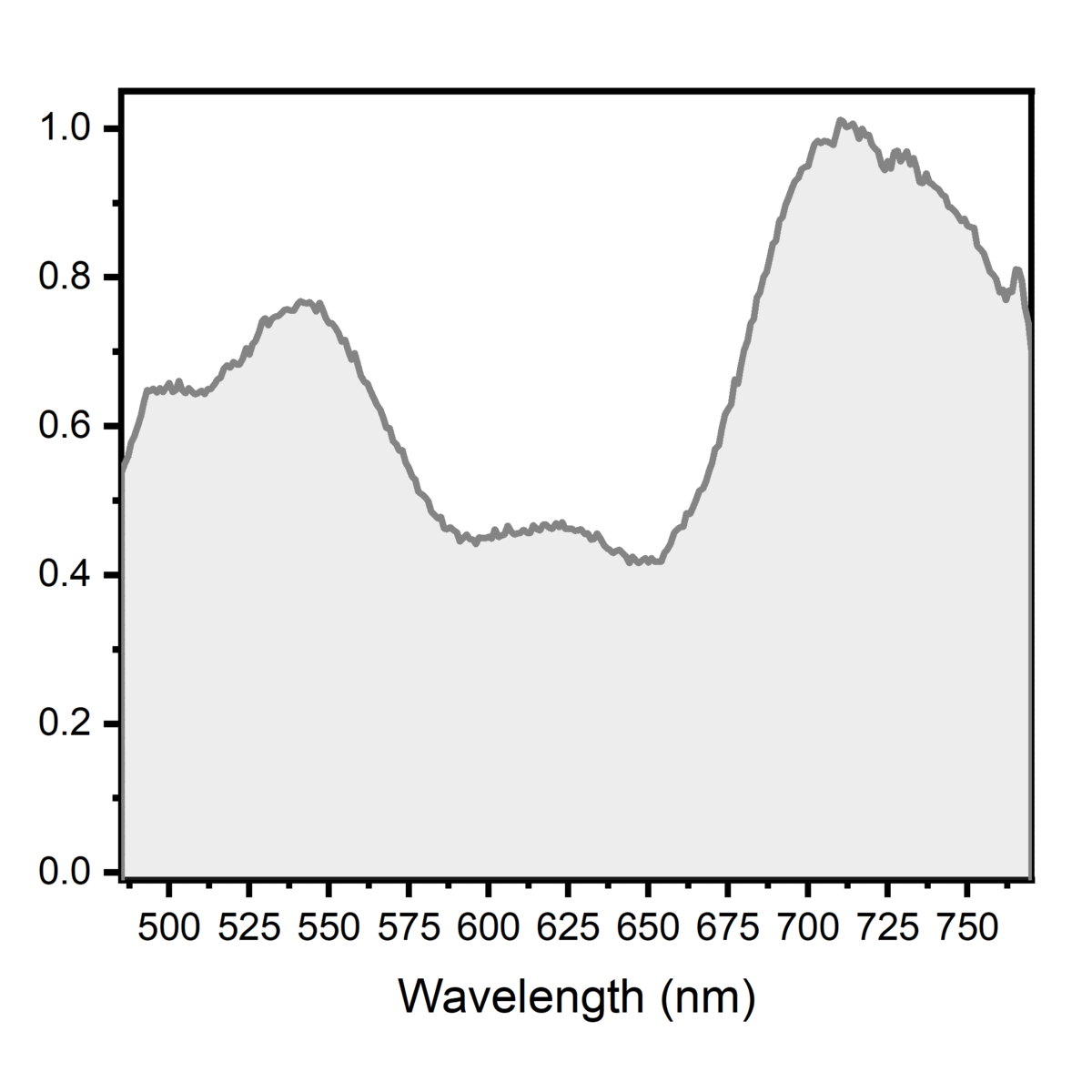

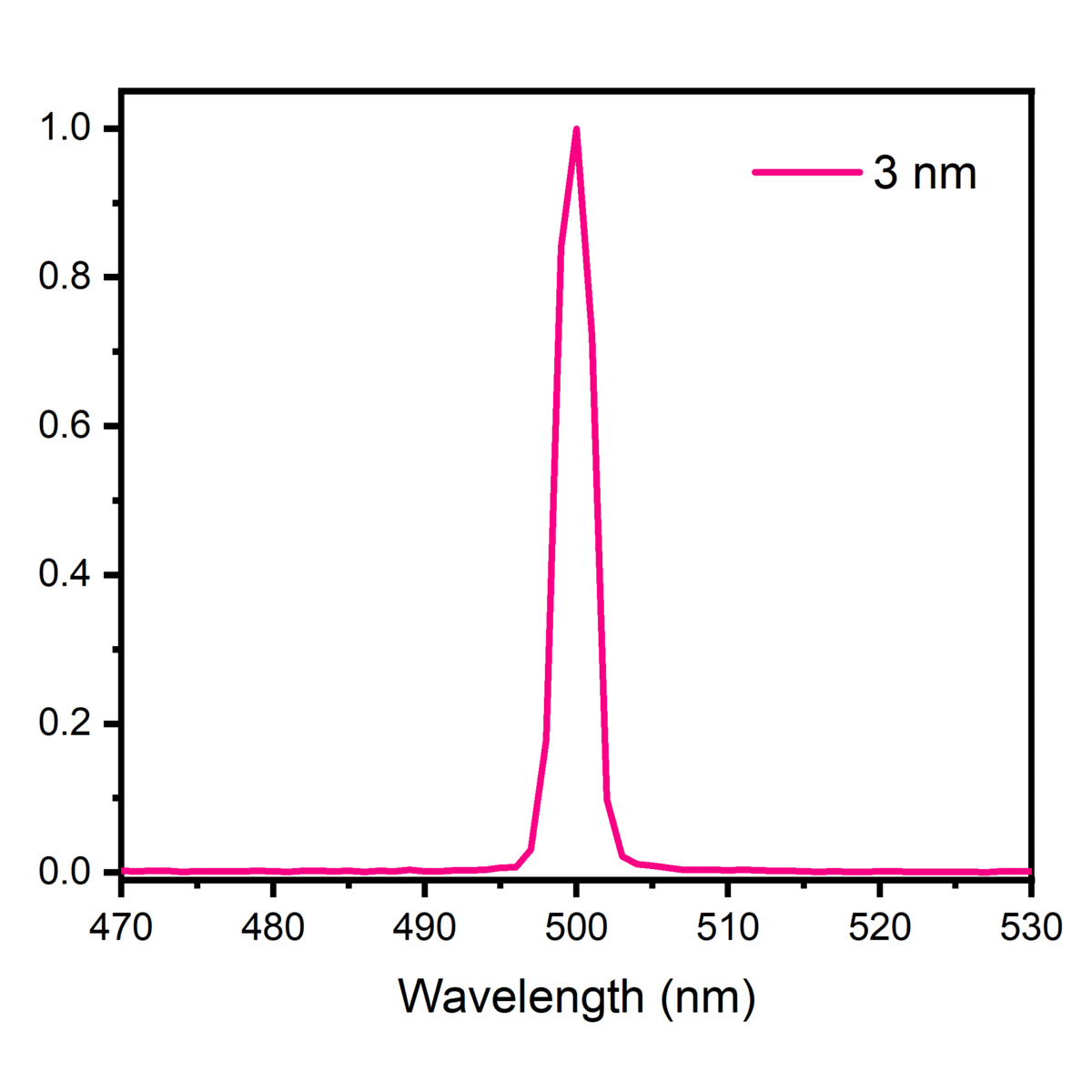

This data shows the tunability of CWL and FWHM.

Once the wavelength, FWHM, and time delay are set, the system accurately outputs the configured wavelength.











Who Needs FWS-Poly ?

For users who need precise spectral control in compact, flexible systems.



1. Build a tunable light source from white light
  - Select wavelengths in 1 nm steps
  - Replace AOTFs, monochromators, or LLTFs with software control
 - Use safely with femtosecond or high-power lasers

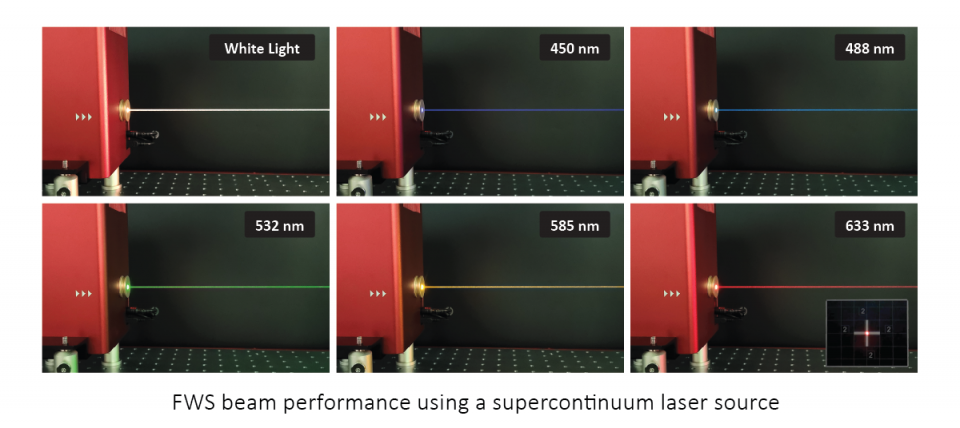

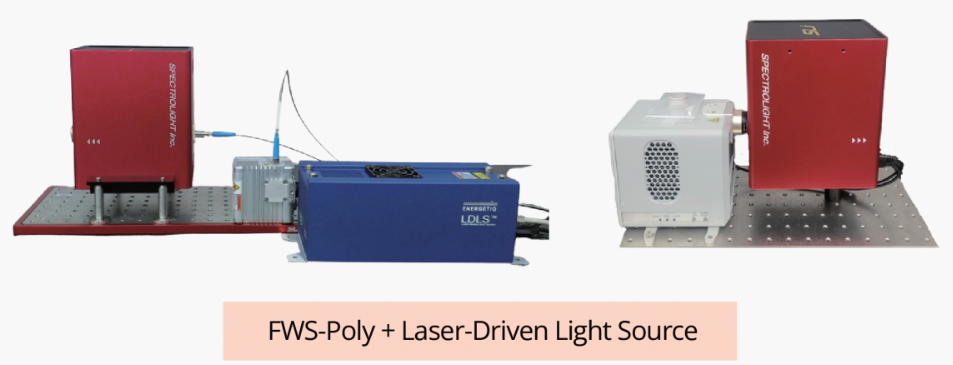

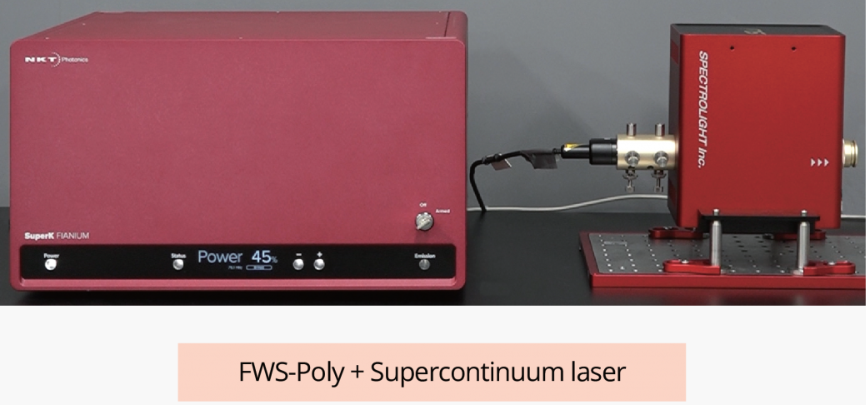

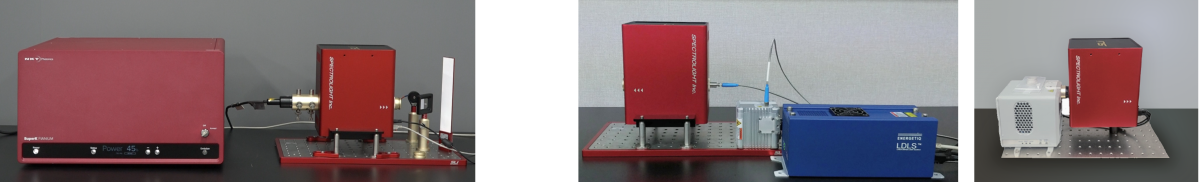

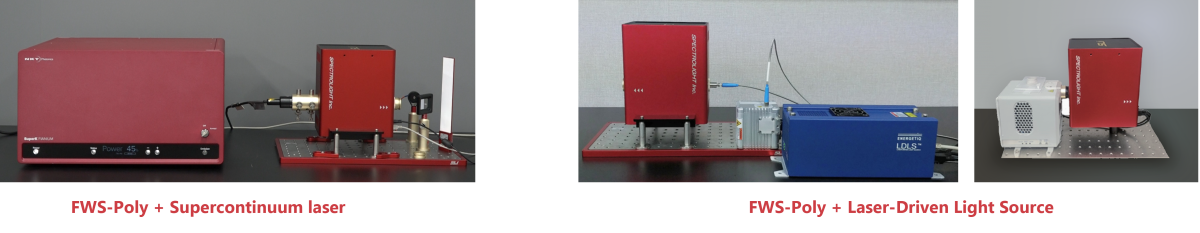

      FWS-Poly + Supercontinuum laser                                                                                     FWS-Poly + Laser-Driven Light Source



2. Enable precise imaging or analysis

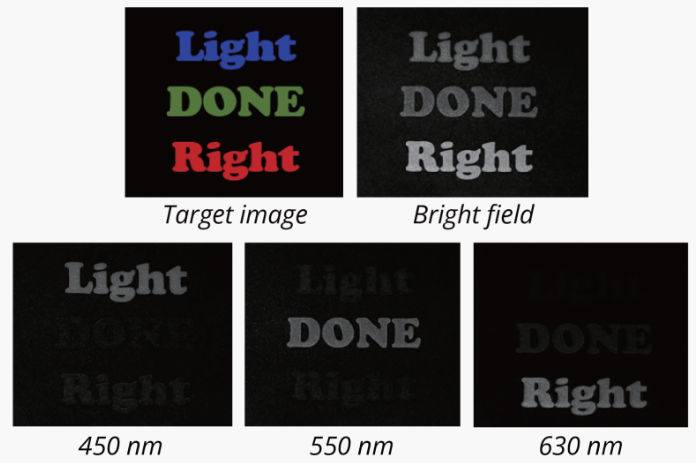

 - Create a hyperspectral imaging system
 - Analyze specific wavelengths with high accuracy
 - Adjust bandwidth dynamically for various conditions

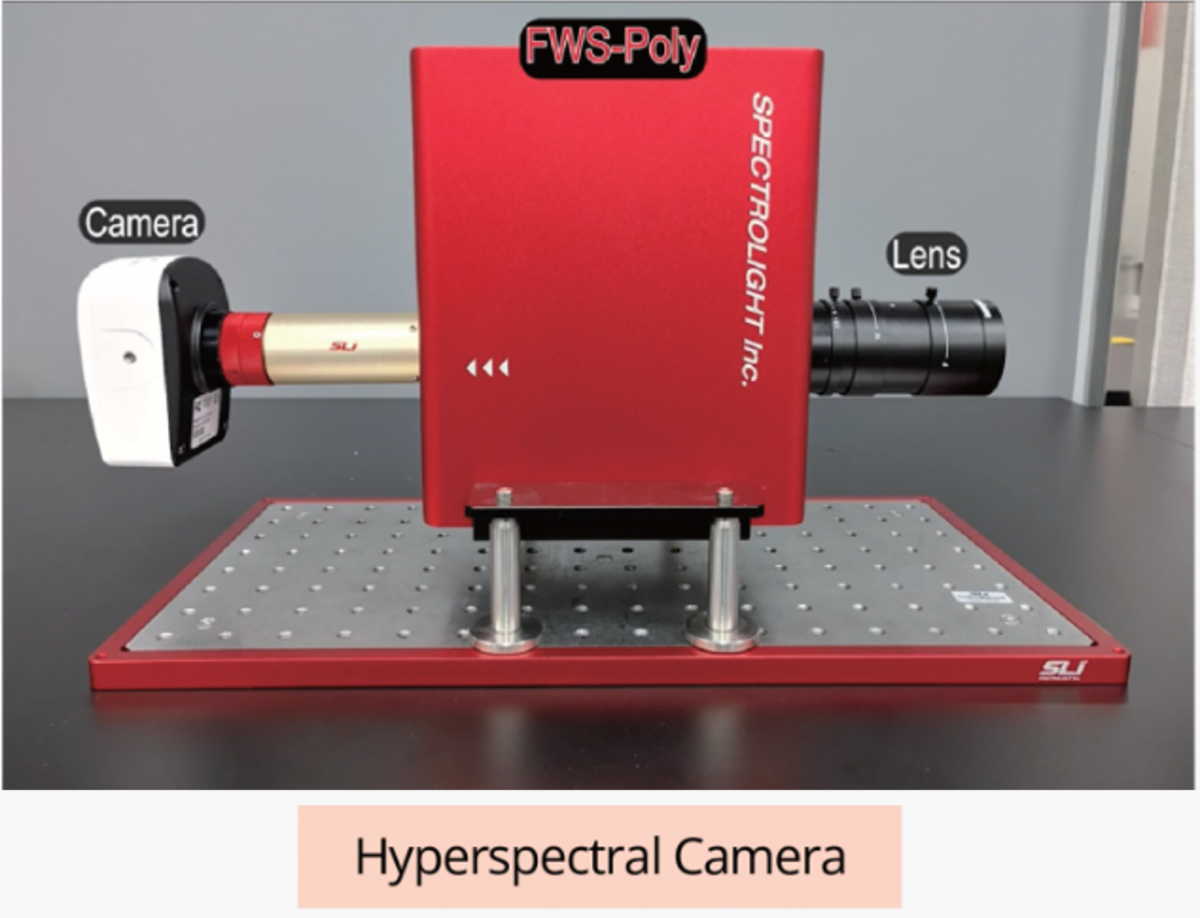

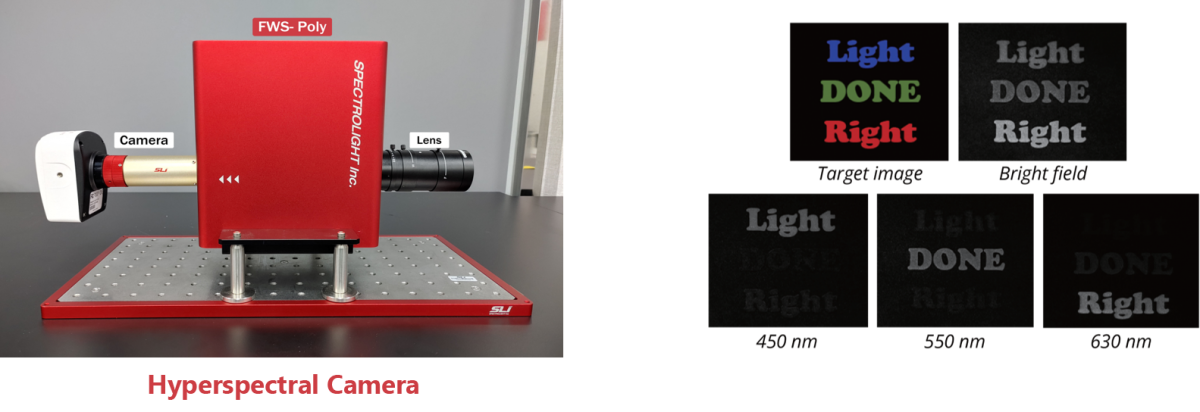

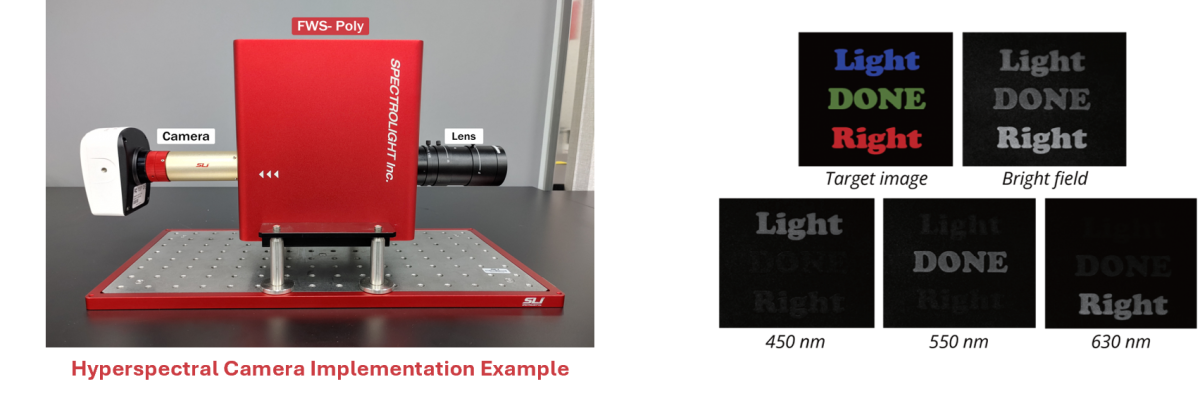

Hyperspectral Camera









Specifications



  Product
  Model   Poly-RED-A5   Poly-RED-A10   Poly-BLUE-A5   Poly-BLUE-A10
  Spectral range (nm)1)   255–1700 nm
  Bandwidth (FWHM) (nm) (nominal)2)   max: 2–15 nm / min: 7–13 nm   10 nm or 20 nm (fixed)
  Aperture size (mm)   5 mm   10 mm   5 mm   10 mm
  5mm : Suitable for supercontinuum lasers
  10mm : Suitable for light sources with large beam size(tungsten-halogen, plasma, LED)
  Out of band Blocking   OD 10 up to 1700 nm3)
  Step size of center wavelength &                  Bandwidth (nm)   1 nm
  Damage threshold   Pulse : Peak Fluence < 1.75 joules/cm (~70 um spot diam., 10 ns, 10 Hz, 532 nm LASER)
  CW (Continuous wave) : Intensity < 2 MW/cm (1064 nm, ~ 90 m spot diam.)
  Transmission efficiency (%) (nominal)   > 75 % (avg.)4)
  Scanning speed (ms)   30 - 300 ms (depending on step size)5)
  Software   FWS-Auto ver 4.2
  Dimension (L x W x H, mm)   186 mm x 124 mm x 214 mm   137 mm x 124 mm x 214 mm
  Electric requirement   AC 100–240 V, 50/60 Hz
  Power supply   DC 12 V, 5 A
  Data interface   USB 2.0
  Weight (kg)   4.2 kg   3.15 kg

1) Specified center wavelength (CWL) tolerance for Poly-RED and Poly-BLUE: ±1 nm.
2) Specified full width at half maximum (FWHM) tolerance: ±1 nm for Poly-RED, ±2.5 nm for Poly-BLUE.
3) OD 7 up to 600 nm for F00-F02 filters; for blocking beyond this range, dedicated out-of-band blockers such as WS-BL400UV and WS-BL1700SWIR are available..
4) Transmission efficiency values are based on filters with a 10 nm full width at half maximum (FWHM). At wavelengths below 400 nm, efficiency remains ≥50%.
5) Scanning speed represents time required for a single wavelength-to-wavelength transition, depending on step size.

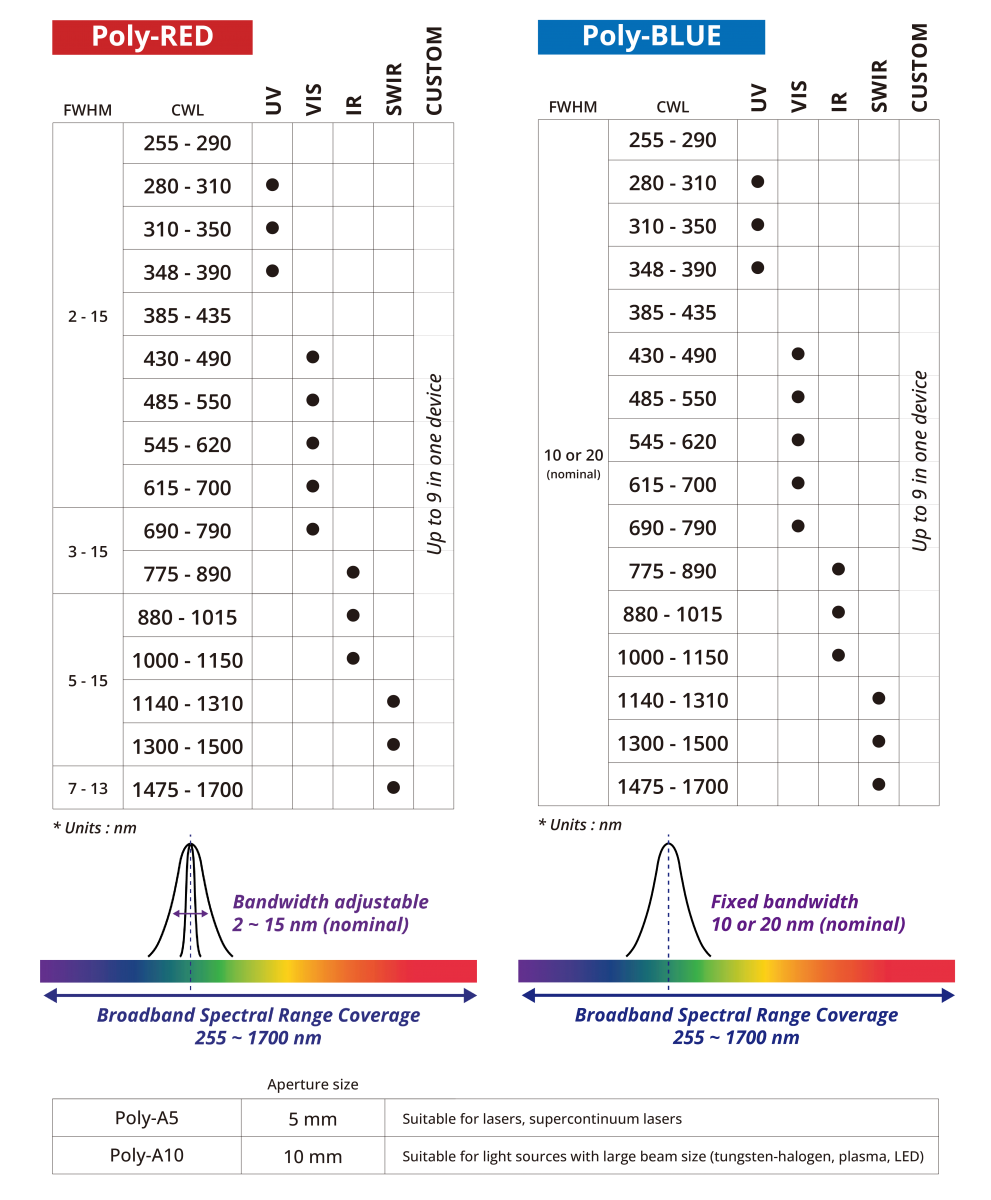

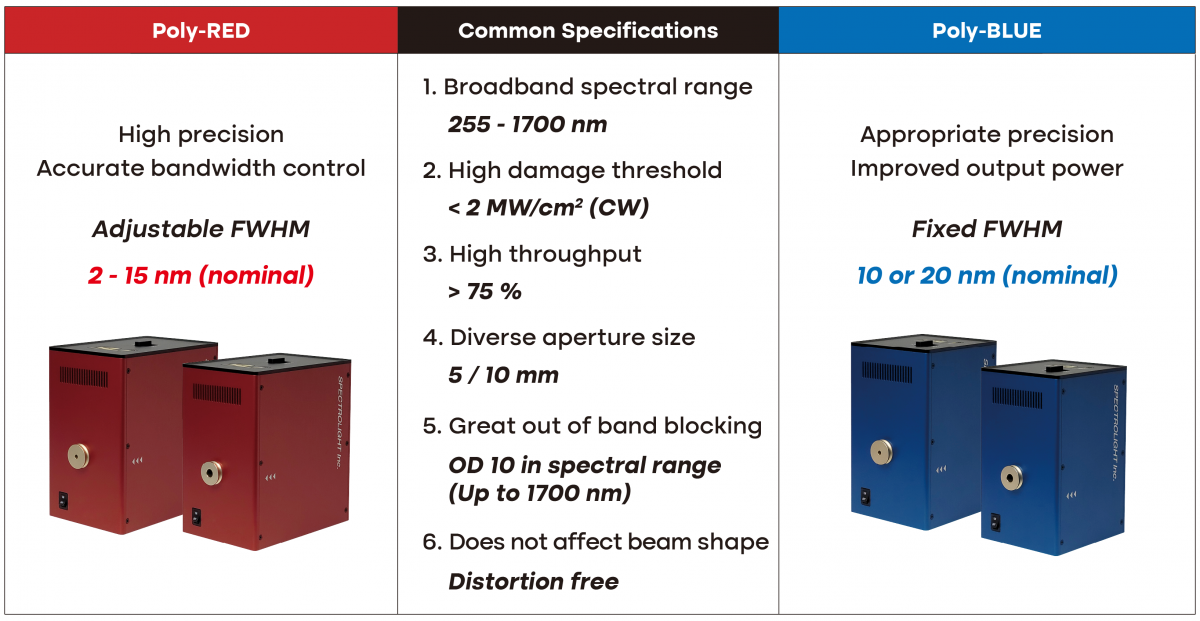

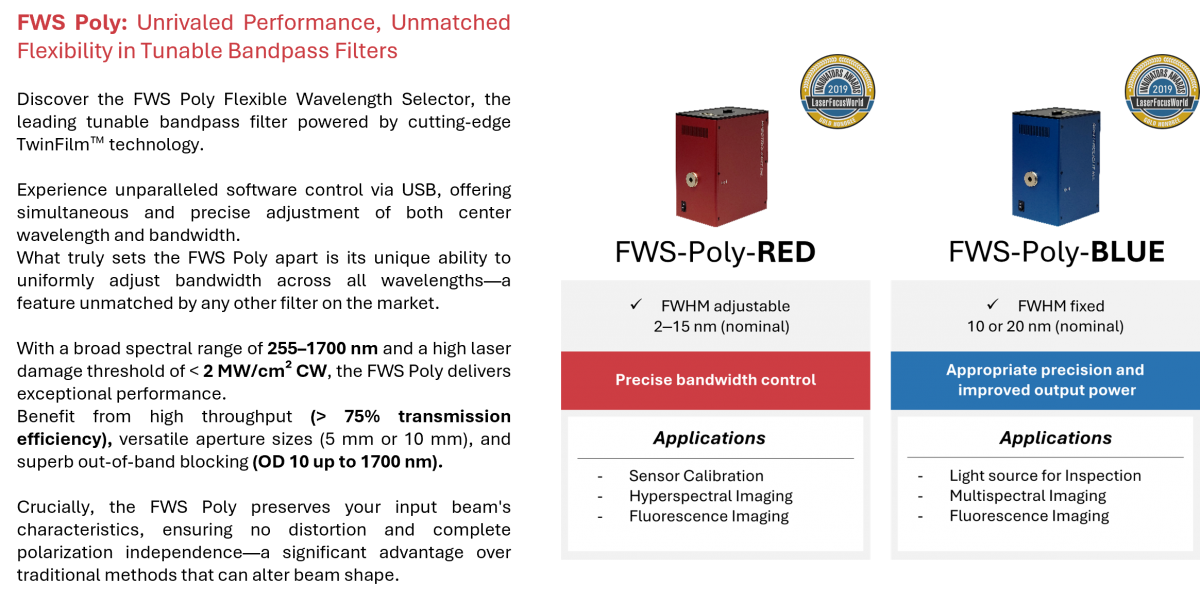

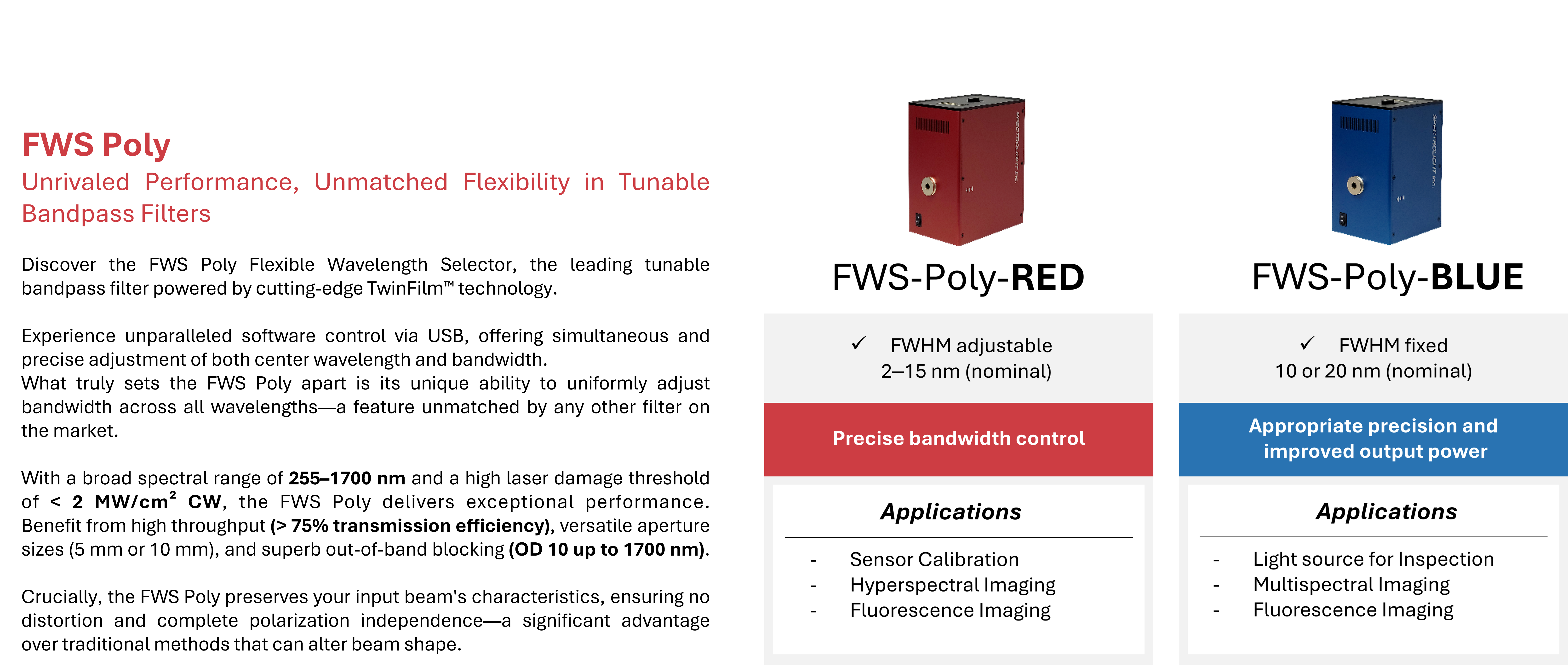

Choose Your Model: Poly-RED or Poly-BLUE

The main difference between the Poly-RED and Poly-BLUE lies in how the bandwidth can be adjusted.









The available tuning range for each selected wavelength is as follows

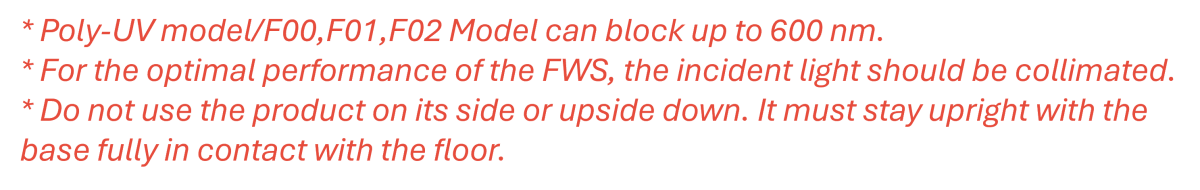

* Poly-UV model/F00,F01,F02 Model can block up to 600 nm.
* For the optimal performance of the FWS, the incident light should be collimated.
* Do not use the product on its side or upside down. It must stay upright with the base fully in contact with the floor.









Application



Main Category

Sub-Application Area

  Basic Scientific Research (Physics, Chemistry, Optics, etc.)   General Optical Experimentation & Photo Detection
  Precision Spectral Measurements with Broadband Sources
  Laser-Based Systems
  Adaptive Optics & High-Precision Optical Metrology (e.g., piston sensing)
  Holographic & Interferometric Measurements
  Quantum Computing & Quantum Optics
  Life Sciences & Biotechnology   Fluorescence Imaging & Microscopy
  Laser Scanning Confocal Microscopy
  Cell Analysis, Drug Discovery & Screening
  Optogenetics
  Bio-inspired Photoreceptor Research & Artificial Visual Systems
  Materials Science & Advanced Materials Research   Photoluminescence (PL) & Spectroscopy
  Nearfield Optics & Advanced Optical Phenomena                                                (e.g., Magnetic Light-Matter Interactions)
  Supercontinuum Laser-based Spectral Measurements
  Thin Film & Nanomaterial Analysis
  Industrial Metrology & Quality Control / Sensor Calibration     High-Precision Sensor Calibration & Photo Detection Systems
  Display & Camera Testing
  Optical Component Characterization
  Medical Diagnostics & Environmental Analysis   Non-invasive Medical Imaging
  Water & Air Quality Monitoring
  Hyperspectral Imaging   -
  Energy & Photovoltaics   Solar Cell Spectral Responsivity Testing

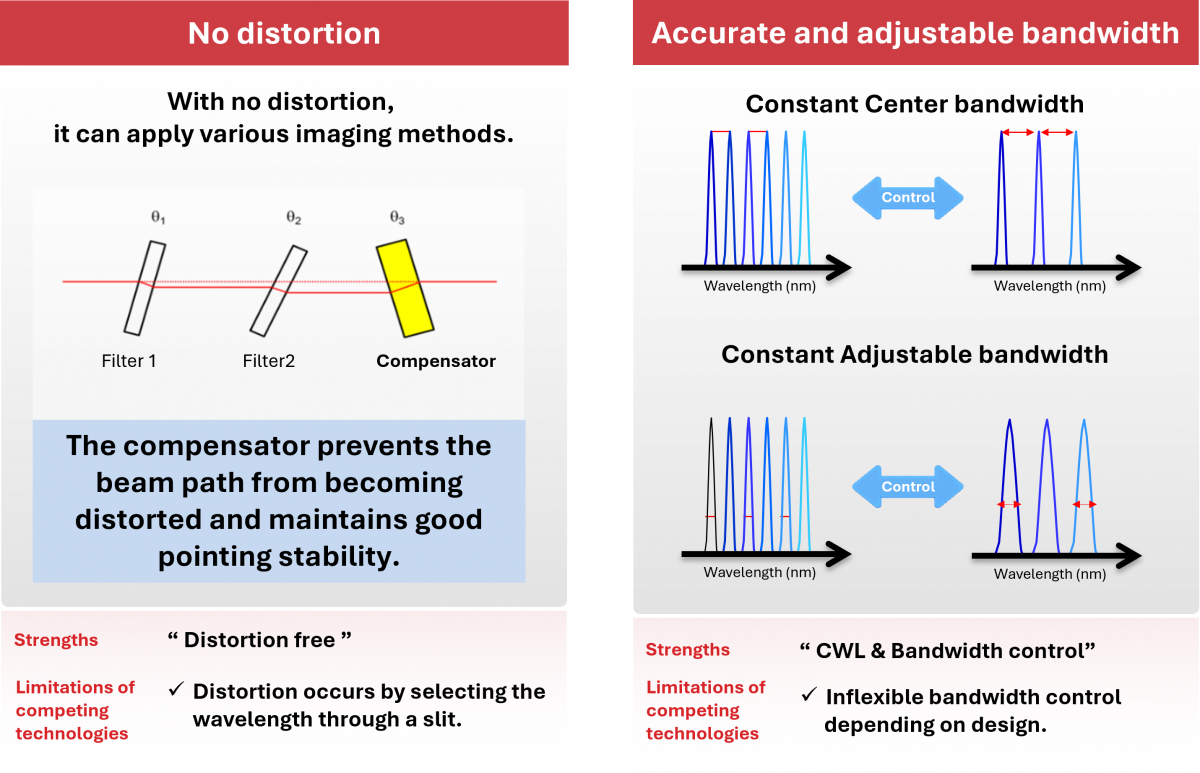

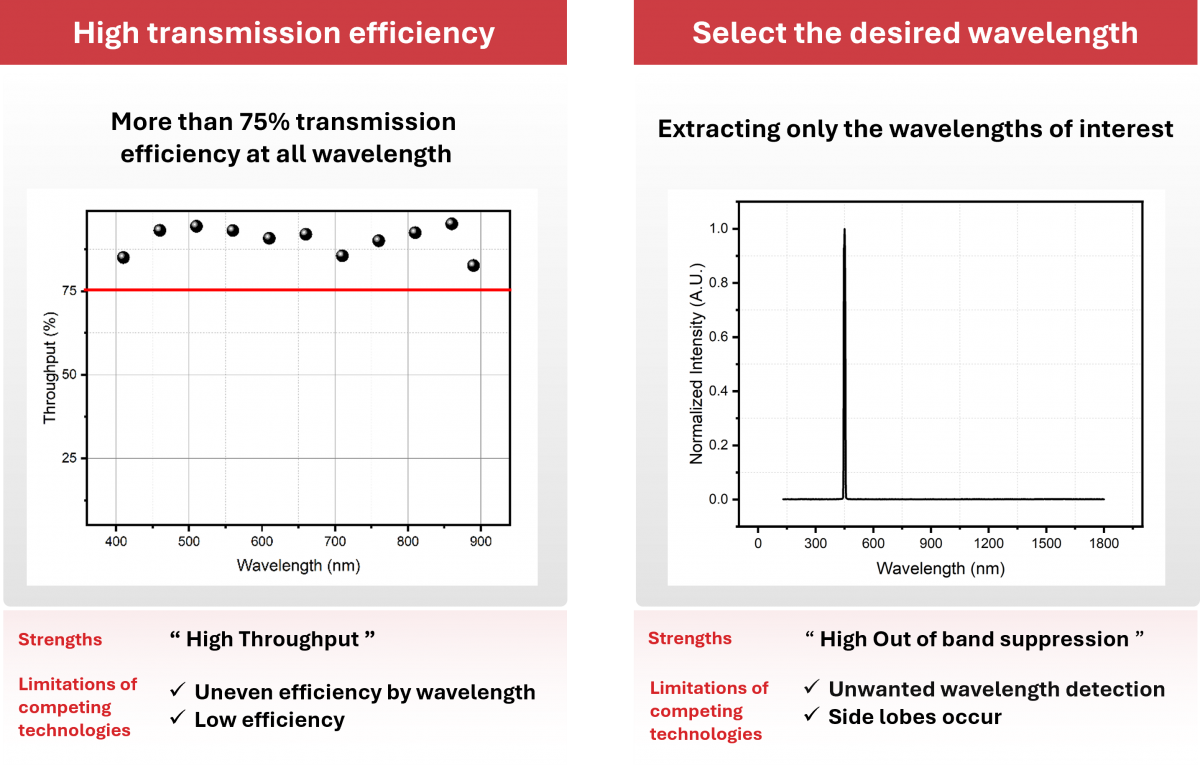

Why Choose FWS?

Comparison with Conventional Filter Technologies

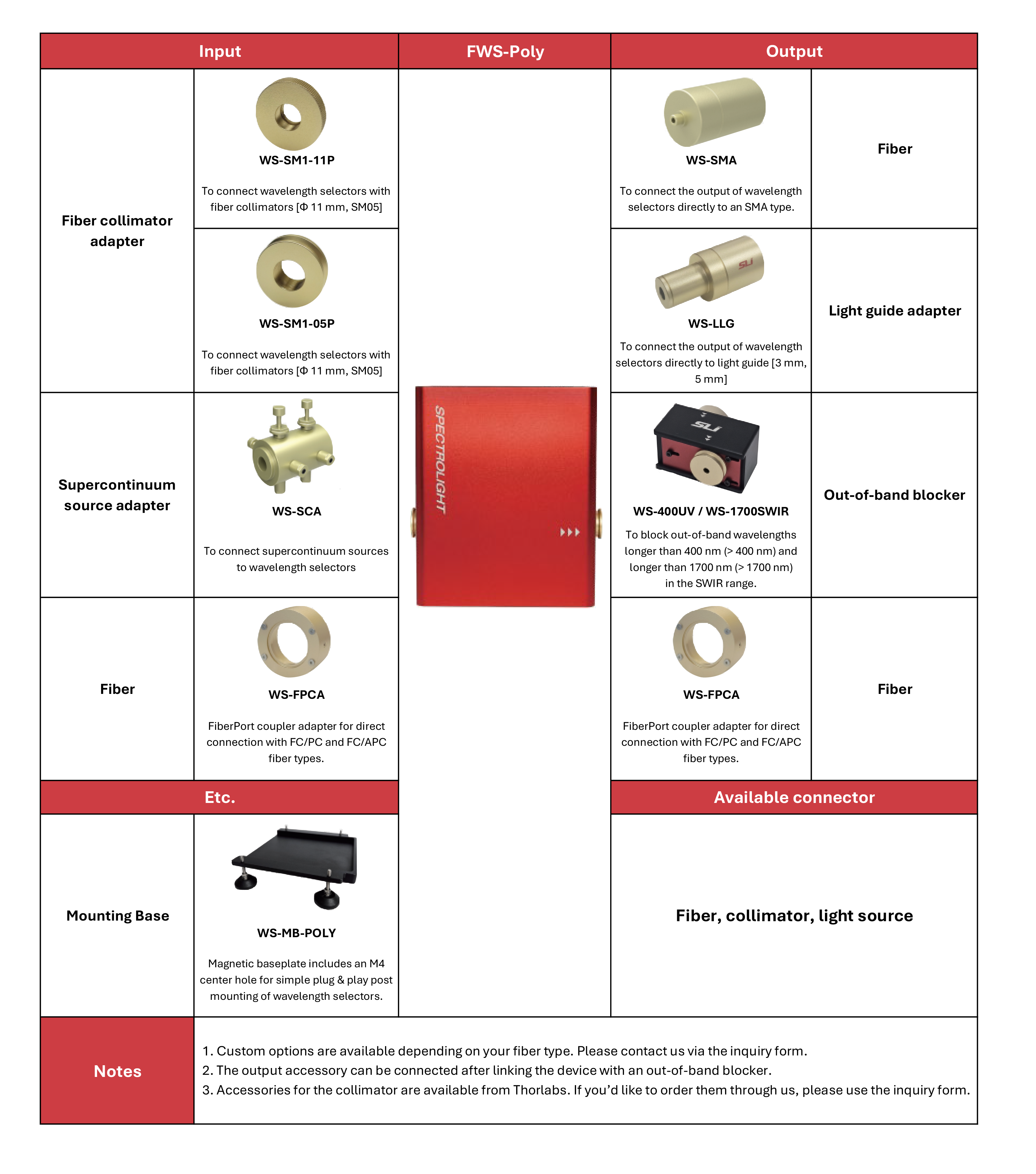

Input and Output Linkers

Various accessories for the FWS including input and output linkers, extender and mounting bases.
