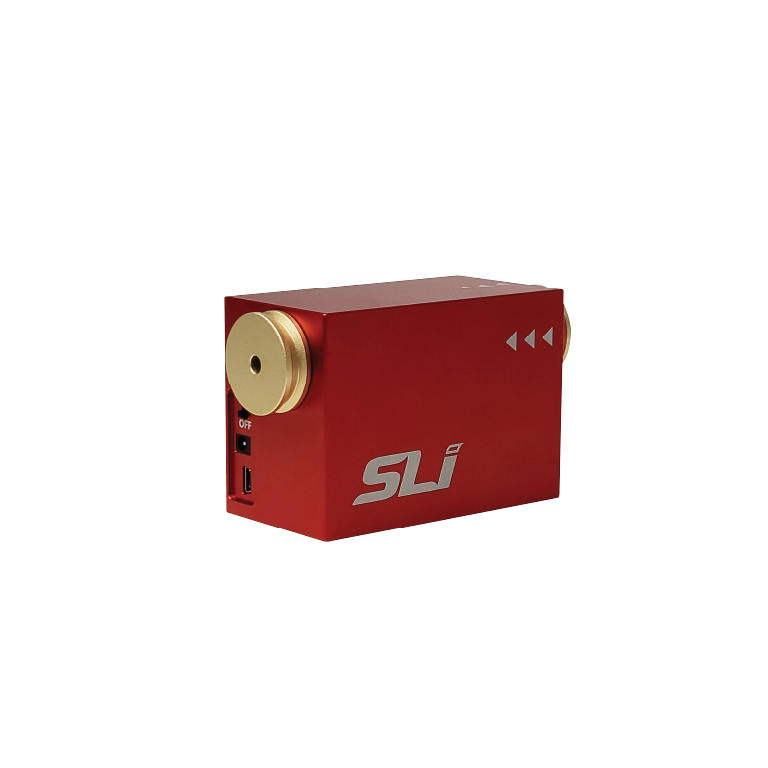

Mono-A5 new

The Flexible Wavelength Selector Mono is a tunable filter which utilizes TwinFilm™ technology to provide a simple software control (scanning or setting) of the center wavelength and the bandwidth via a USB communication. The bandwidth can be adjusted from around 2 to 15 nm also depending on the specific model(spectral range).

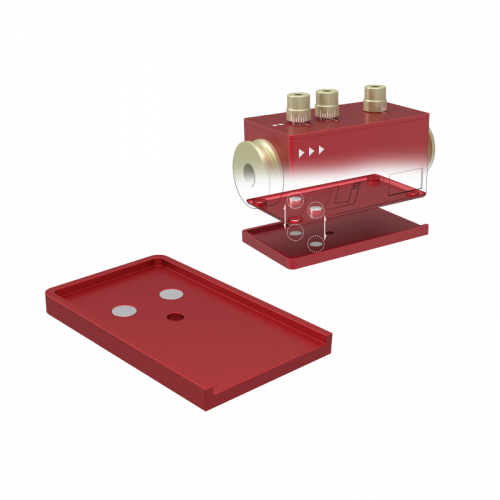

Mono is compatible with any type of broadband lamps or supercontinuum sources. Accessories are available here. For more information about compatibility please contact us at info@spectrolightinc.com.



Mono can also be used to convert a commercial fluorescence microscope into a hyperspectral imaging microscope. For more details click here.



A5 : Suitable for lasers, supercontinuum lasers

A10 : Suitable for light sources with large beam size (tungsten-halogen, plasma, LED)





*Note : For the optimal performance of Wavelength Selectors, the incident light should be collimated.



*Note : F00 - F02 models can block up to 600 nm.



*Currency : US DOLLAR only
*CHECK the SPEC SHEET for the exact specifications of the products

Product Number Product Size(mm) Spectral Range FWHM Aperture Size Transmission Availability Price(USD) Order
Mono-F00-A5 48 x 92 x 64 255 - 290 nm 2 - 15 nm 5 mm > 75 % IN STOCK $3,900
Mono-F01-A5 48 x 92 x 64 280 - 310 nm 2 - 15 nm 5 mm > 75 % LEADTIME $3,900
Mono-F02-A5 48 x 92 x 64 310 - 350 nm 2 - 15 nm 5 mm > 75 % LEADTIME $3,900
Mono-F03-A5 48 x 92 x 64 348 - 390 nm 2 - 15 nm 5 mm > 75 % LEADTIME $3,900
Mono-F04-A5 48 x 92 x 64 385 - 435 nm 2 - 15 nm 5 mm > 75 % LEADTIME $3,900
Mono-F05-A5 48 x 92 x 64 430 - 490 nm 2 - 15 nm 5 mm > 75 % LEADTIME $3,900
Mono-F06-A5 48 x 92 x 64 485 - 550 nm 2 - 15 nm 5 mm > 75 % LEADTIME $3,900
Mono-F07-A5 48 x 92 x 64 545 - 620 nm 2 - 15 nm 5 mm > 75 % LEADTIME $3,900
Mono-F08-A5 48 x 92 x 64 615 - 700 nm 2 - 15 nm 5 mm > 75 % LEADTIME $3,900
Mono-F09-A5 48 x 92 x 64 690 - 790 nm 3 - 15 nm 5 mm > 75 % LEADTIME $3,900
Mono-F10-A5 48 x 92 x 64 775 - 890 nm 3 - 15 nm 5 mm > 75 % LEADTIME $4,000
Mono-F11-A5 48 x 92 x 64 880 - 1015 nm 5 - 15 nm 5 mm > 75 % LEADTIME $4,100
Mono-F12-A5 48 x 92 x 64 1000 - 1150 nm 5 - 15 nm 5 mm > 75 % LEADTIME $4,000
Mono-F13-A5 48 x 92 x 64 1140 - 1310 nm 5 - 15 nm 5 mm > 75 % LEADTIME $4,000
Mono-F14-A5 48 x 92 x 64 1300 - 1500 nm 5 - 15 nm 5 mm > 75 % LEADTIME $4,100
Mono-F15-A5 48 x 92 x 64 1475 - 1700 nm 7 - 13 nm 5 mm > 75 % LEADTIME $4,100

Key Product Advantages

  • Fast software-controlled wavelength tuning
  • Software bandwidth adjustment (FWHM 2 - 15 nm, nominal)
  • Circular aperture (5 mm)
  • High (10-6) out of band rejection
  • Compact size (48 x 92 x 64 mm)

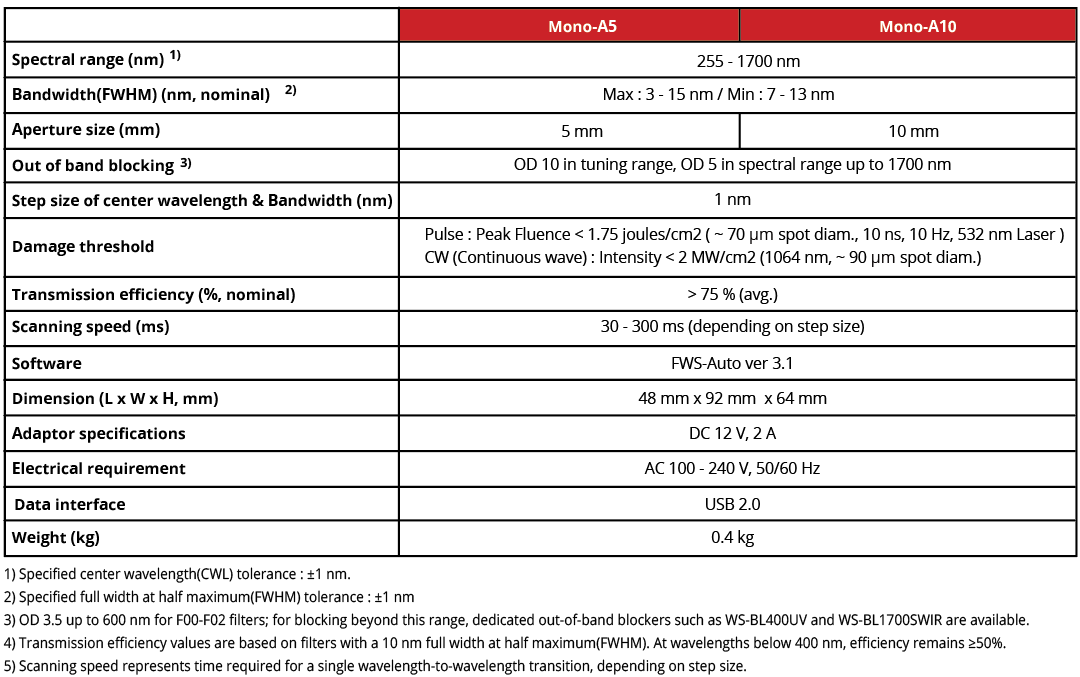

/ Optical Specifications

  • Transmission : > 75% (in proportion to the input light power / FWHM > 10 nm)
  • Tunable spectral wavelength : 255 - 1700 nm
  • Center wavelength accuracy (nominal): 1 nm
  • FWHM range
           - 255 - 700 nm : 2 - 15 nm
           - 690 - 890 nm : 3 - 15 nm
           - 880 - 1500 nm : 5 - 15 nm
           - 1475 - 1700 nm : 7 - 13 nm
  • FWHM resolution : 1 nm
  • Out-of-band blocking : OD 6 (0.0001 % Transmission)
  • F00 - F02 : Blocks up to 600 nm
  • F03 - F15 : Blocks up to 1700 nm

/ General Specifications

  • Dimensions : 48 x 92 x 64 mm
  • Aperture size : 5 mm
  • Input power : 12 V, 2A
  • Data interface : USB

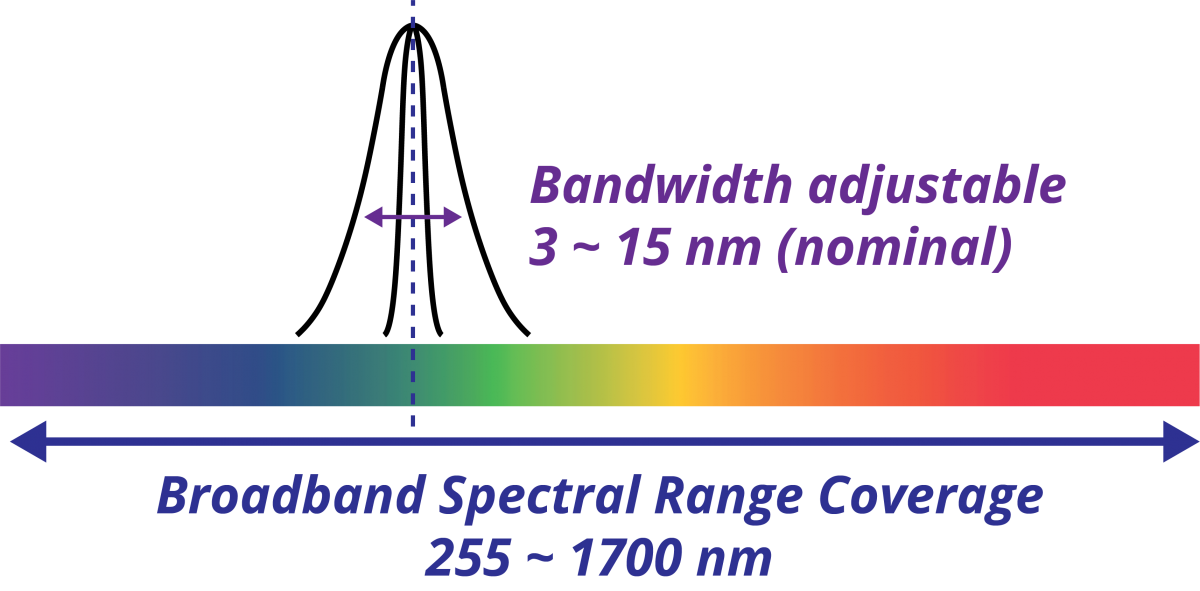

Broadband Tunable Spectral Wavelength and Adjustable Bandwidth

The broadband spectral range of the wavelength and the transmission bandwidth can be adjusted via quick and easy software control.



Applications with Various Light Sources

- NKT, LEUKOS, Spectrolight's Pico-second Pulsed supercontinuum laser
- Energetiq, ISTEQ Laser-Driven Light Source
- LED, Xenon and other lamp types













High Out-of-band Rejection

High (10-6) out-of-band rejection avoids unwanted spectral leakage and

associated background noise typical of liquid crystal-based filtering systems.







Simple Software Control

Simple and Easy control of the center wavelength and the transmission bandwidth with automated software.

Custom wavelength scanning, setting and stepping are supported.
