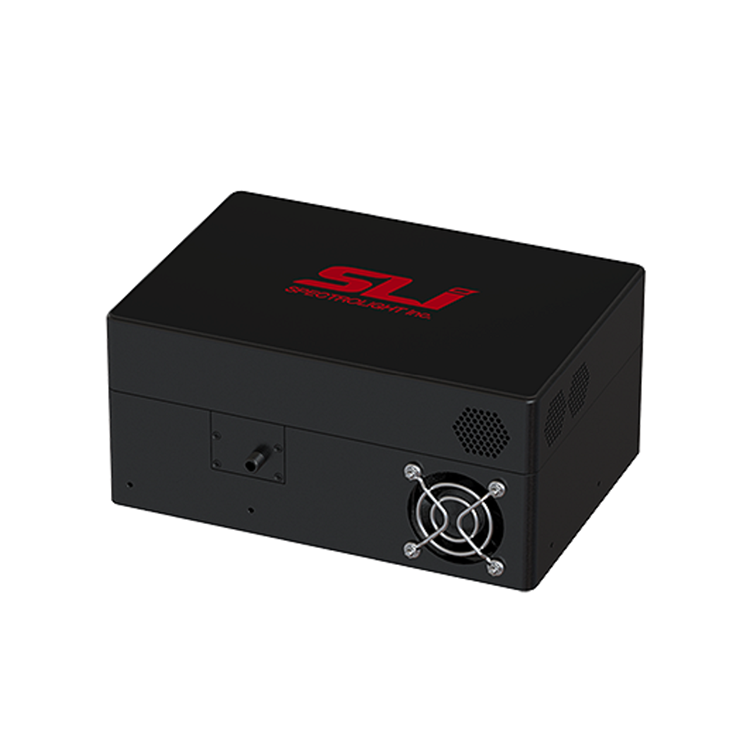

SP303HRS

High Resolution Low Noise Spectrometer         

  • High resolution optical bench

  • Scientific-grade high performance

  • Extremely low dark noise and stray light

  • Wide dynamic range and high signal to noise ratio

  • High Ultra-violet Quantum efficiency

  • Flexible optical input direct to slit or via fiber

  • Designed from the ground up for a wide range of applications

  • High speed data acquisition

  • Standard design allows up to 200-1050 nm range

*Currency : US DOLLAR only
*CHECK the SPEC SHEET for the exact specifications of the products

Product Number Specific Description Product Size(mm) Availability Price(USD) Order
SP303HRS High performance TE-cooled backthinned spectrometer (Resolution: < 0.2 nm) IN STOCK $13,900

/ Detector :

    Hamamatsu S7031-1006S backthined CCD
      ▶ Number of Pixels : 1024 X 58
      ▶ Sensing Pixel Size : 24 μm X 24 μm
      ▶ Pixel well depth : 300 Ke-(Vertical), 600 Ke-(Horizontal)
      ▶ Quantum efficiency : >90% @650 nm, 65% @250 nm
      ▶ Sensitivity : ~0.065 counts/e-
      ▶ Cooling : One-stage TE-Cooled(-10℃)



/ Dark Noise RMS : < 2 RMS counts @ 35msec

/ Signal to Noise Ratio : 1000:1

/ Fiber Coupler : SMA905 of FC standard



/ Wavelength Range

     Full Range : 200 ~ 1050 nm
     UV Range : 200 ~ 450 nm
     VIS Range : 380 ~ 760 nm
     NIR Range : 550 ~ 1050 nm



Order Sorting Filter : Longpass filter or linear variable filter installed per wavelength coverage

Optical Resolution : 0.2 – 7 nm FWHM

Stray Light Level : < 0.01% @ 532 nm (<0.05% AVG)

Computer interface : USB 1.1/2.0 compatible

Min. Exposure Time : 7 msec

Trigger Mode : Free Run S/W Trigger H/W Trigger

Operation System : Windows 7/10 (32/64 bit)

SDK Support : Visual C++ / Visual Basic / LabVIEW

Dimensions/ Weight : 235mm X 176.5mm X 95.3 mm / 3.7 K

High Performance

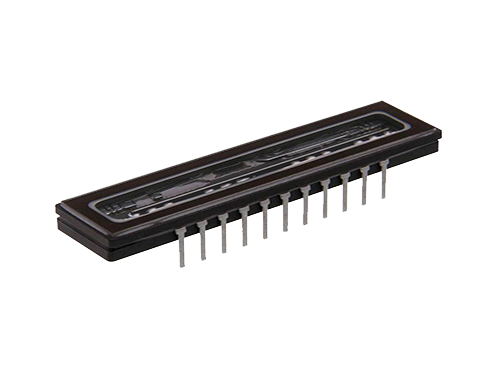

SP303HRS uses Hamamatsu S7031-1006 (UV Enhanced Coated) detectors ideal for UV/ViS/NIR spectrometry





High Signal To Noise Ratio

The array driver electronics have been designed for highly sensitive yet stable operation with a signal to noise ratio of 1000 : 1.
