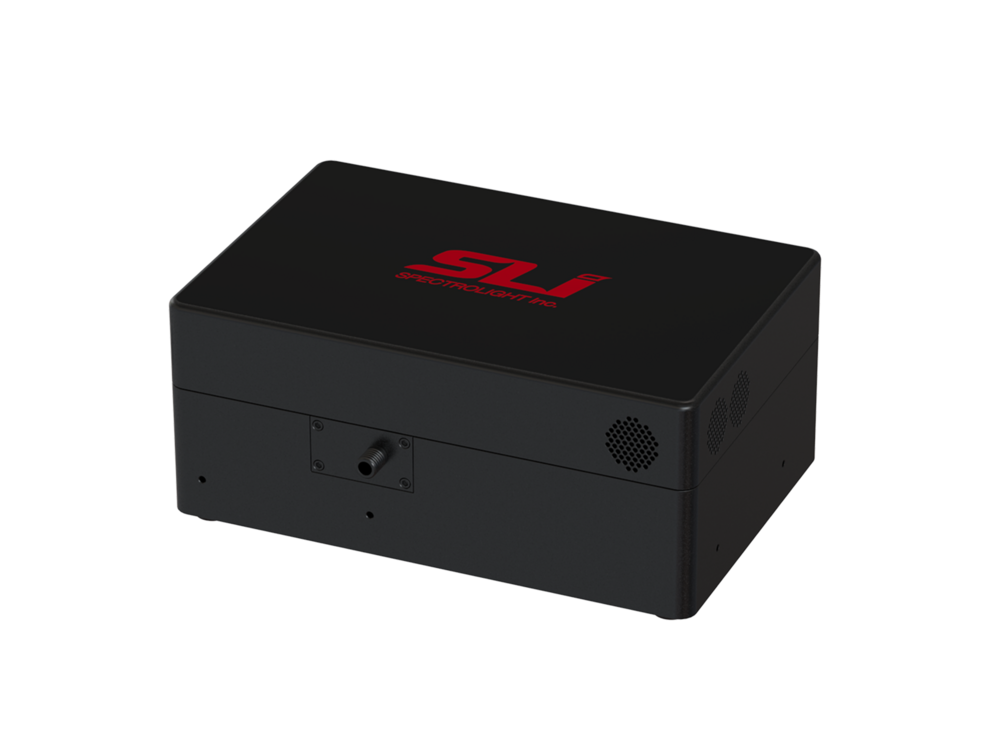

SP642

Low Noise Non TE-Cooled Backthinned Spectrometer               

  • Scientific-grade high performance with low cost

  • Low dark noise and stray light

  • Good dynamic range and high signal to noise ratio

  • High Ultra-Violet Quantum Efficiency

  • Flexible optical input direct to slit or via fiber

  • Designed from the ground up for a wide range of applications

  • High speed data acquisition

  • Standard design allows up to 200-1050 nm range

  • Auto shutter for dark condition

*Currency : US DOLLAR only
*CHECK the SPEC SHEET for the exact specifications of the products

Product Number Specific Description Product Size(mm) Availability Price(USD) Order
SP-642 High performance TE-cooled backthinned spectrometer IN STOCK $6,300

/ Detector :

    Hamamatsu S10420-1106(Non TE-Cooled Backthinned FFT CCD)

       ▶ Number of Pixels : 2048 X 64

       ▶ Sensing Pixel Size : 14 μm X 14 μm

       ▶ Well depth : 200Ke-

       ▶ Quantum efficiency : >90% @650 nm, 65% @250 nm



/ Dark Noise RMS : < 7 RMS counts @ 35 msec

/ Signal to noise ratio : 450:1

/ Fiber Coupler : SMA905 of FC standard



/ Wavelength Range :

      Full Range : 200 ~ 1050 nm
      UV Range : 200 ~ 450 nm
      VIS Range : 380 ~ 760 nm
      NIR Range : 550 ~ 1050 nm



Order Sorting Filter : Longpass filter or linear variable filter installed per wavelength coverage

Optical Resolution : 0.25 – 7 nm FWHM

Stray Light Level : < 0.01% @632 nm (<0.5% AVG)

Computer interface : USB 1.1/2.0 compatible

Min. Exposure Time : 7 msec

Trigger Mode : Free Run S/W Trigger H/W Trigger

Operation System : Windows 7/10 (32/64 bit)

SDK Support : Visual C++ / Visual Basic / LabVIEW

Dimensions/ Weight : 152mm X 100mm X 63.6 mm / 1.2 Kg

High Performance

SP642 uses Hamamatsu S10420-1106 (non TE-cooled backthinned FFT CCD detectors ideal for UV/ViS/NIR spectrometry

High Signal To Noise Ratio

The array driver electronics have been designed for highly sensitive yet stable operation with a signal to noise ratio of  450 : 1.
