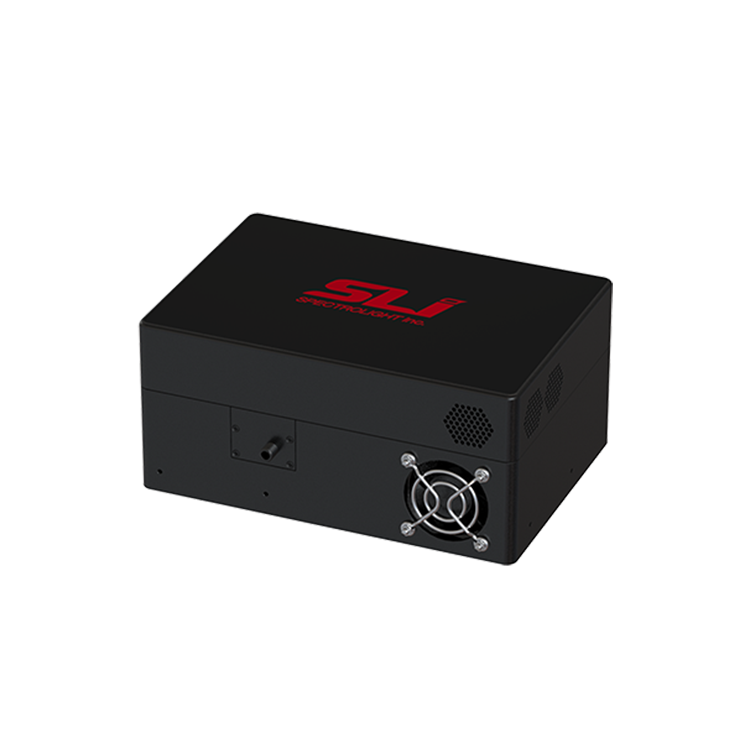

SP303

High Performance TE-Cooled Backthinned Spectrometer              

  • Scientific-grade High Performance

  • Extremely Low Dark Noise and Stray Light

  • Wide dynamic range and high signal to noise ratio

  • High Ultra-Violet Quantum Efficiency

  • Flexible optical input direct to slit or via fiber

  • Designed from the ground up for a wide range of applications

  • High speed data acquisition

  • Standard design allows up to 200-1050nm range

  • Auto shutter for dark condition

*Currency : US DOLLAR only
*CHECK the SPEC SHEET for the exact specifications of the products

Product Number Specific Description Product Size(mm) Availability Price(USD) Order
SP303 High performance TE-cooled backthinned spectrometer (Resolution: < 0.5 nm) IN STOCK $13,400

/ Detector :

      Hamamatsu S7031-1006S backthined CCD
        ▶ Number of Pixels : 1024
        ▶ Sensing Pixel Size : 24 μm X 24 μm
        ▶ Pixel well depth : 300 Ke-(Vertical), 600 Ke-(Horizontal)
        ▶ Quantum efficiency : >90% @650 nm, 65% @250 nm
        ▶ Sensitivity : ~0.065 counts/e-
        ▶ Cooling : One-stage TE-Cooled(-10℃)



/ Dark Noise RMS : TYP > 2 @Min. Integration Time

/ Signal to noise ratio : 1000:1

/ Fiber Coupler : SMA905 of FC standard



/ Wavelength Range :

     Full Range : 200 ~ 1050 nm
     UV Range : 200 ~ 450 nm
     VIS Range : 380 ~ 760 nm
     NIR Range : 550 ~ 1050 nm



Order Sorting Filter : Longpass filter or linear variable filter installed per wavelength coverage

Optical Resolution : 0.3 – 7 nm FWHM

Stray Light Level : < 0.05% AVG, <0.01% @632 nm

Computer interface : USB 1.1/2.0 compatible

Min. Exposure Time : 7 msec

Trigger Mode : Free Run S/W Trigger H/W Trigger

Operation System : Windows 7/10 (32/64 bit)

SDK Support : Visual C++ / Visual Basic / LabVIEW

Dimensions/Weight : 173mm X 120mm X 79.8 mm / 2.0 Kg

High Performance

SP303 uses Hamamatsu S7031-1006 (UV Enhanced Coated) detectors ideal for UV/ViS/NIR spectrometry

High Signal To Noise Ratio

The array driver electronics have been designed for highly sensitive yet stable operation with a signal to noise ratio of 1000 : 1.
