FWS-Basic new

The Flexible Wavelength Selector utilizes TwinFilm™ technology to deliver the tunable wavelength filtering characteristics of a grating monochromator together with the circular aperture imaging capabilities of a bandpass filter.

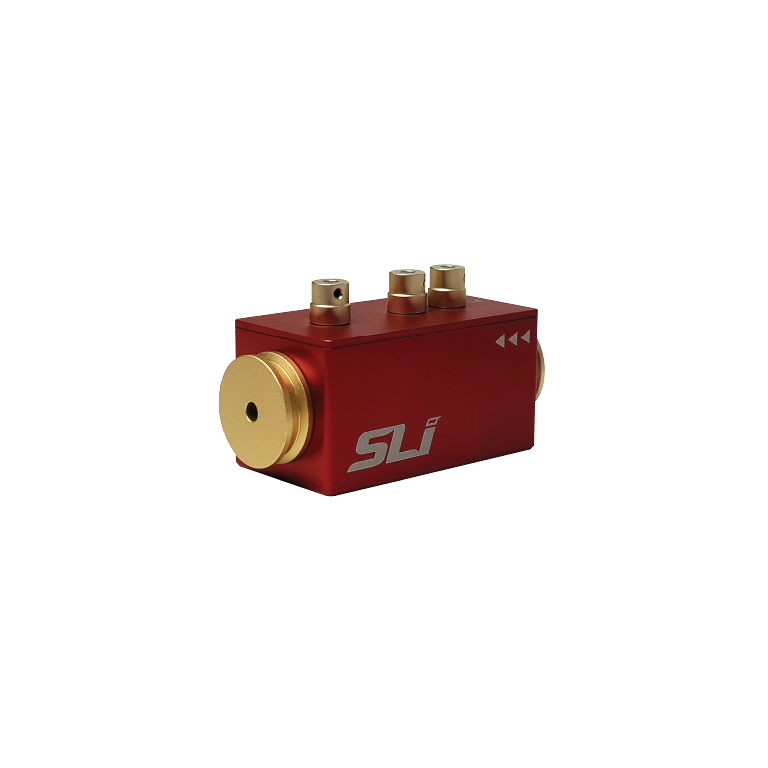

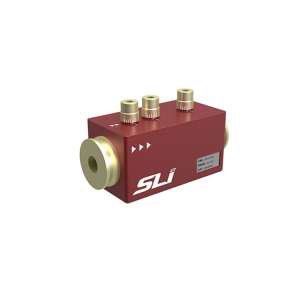

The Flexible Wavelength Selector Basic (FWS-Basic) is a manually tunable filter that features three knurled knobs – two for adjusting the center wavelength and the transmission bandwidth and one for compensating the beam direction offset.



For more information about compatibility please contact us at info@spectrolightinc.com.





*Note : For the optimal performance of Wavelength Selectors, the incident light should be collimated.



*Note : F00 - F02 models can block up to 600 nm.

*Currency : US DOLLAR only
*CHECK the SPEC SHEET for the exact specifications of the products

Product Number Product Size(mm) Spectral Range FWHM Aperture Size Transmission Availability Price(USD) Order
FWS-B-F00 40 X 76 X 50 255 - 290 nm 3 - 15 nm 5 mm > 75 % DEVELOPING $2,700
FWS-B-F01 40 X 76 X 50 280 - 310 nm 3 - 15 nm 5 mm > 75 % IN STOCK $2,700
FWS-B-F02 40 X 76 X 50 310 - 350 nm 3 - 15 nm 5 mm > 75 % IN STOCK $2,700
FWS-B-F03 40 X 76 X 50 348 - 390 nm 3 - 15 nm 5 mm > 75 % IN STOCK $2,700
FWS-B-F04 40 X 76 X 50 385 - 435 nm 3 - 15 nm 5 mm > 75 % IN STOCK $2,300
FWS-B-F05 40 X 76 X 50 430 - 490 nm 3 - 15 nm 5 mm > 75 % IN STOCK $2,300
FWS-B-F06 40 X 76 X 50 485 - 550 nm 3 - 15 nm 5 mm > 75 % IN STOCK $2,300
FWS-B-F07 40 X 76 X 50 545 - 620 nm 3 - 15 nm 5 mm > 75 % IN STOCK $2,300
FWS-B-F08 40 X 76 X 50 615 - 700 nm 3 - 15 nm 5 mm > 75 % IN STOCK $2,300
FWS-B-F09 40 X 76 X 50 690 - 790 nm 3 - 15 nm 5 mm > 75 % IN STOCK $2,300
FWS-B-F10 40 X 76 X 50 775 - 890 nm 3 - 15 nm 5 mm > 75 % IN STOCK $2,300
FWS-B-F11 40 X 76 X 50 880 - 1015 nm 5 - 15 nm 5 mm > 75 % IN STOCK $2,300
FWS-B-F12 40 X 76 X 50 1000 - 1150 nm 5 - 15 nm 5 mm > 75 % IN STOCK $2,700
FWS-B-F13 40 X 76 X 50 1140 - 1310 nm 5 - 15 nm 5 mm > 75 % IN STOCK $2,700
FWS-B-F14 40 X 76 X 50 1300 - 1500 nm 5 - 15 nm 5 mm > 75 % IN STOCK $2,700
FWS-B-F15 40 X 76 X 50 1475 - 1650 nm 7 - 13 nm 5 mm > 75 % IN STOCK $2,700

Key Product Advantages

  • Broad wavelength tuning
  • Smoothly adjustable bandwidth (FWHM 3 - 15 nm, nominal)
  • Circular uniform aperture (5 mm)
  • Compact optomechanical device
  • High (10-6) out of band rejection

/ Optical Specification

  • Transmission : > 75% (in proportion to the input light power / FWHM > 10 nm)
  • Tunable spectral wavelength : 255 - 1650 nm
  • FWHM range
           - 255 - 790 nm : 3 - 15 nm
           - 880 - 1505 nm : 5 - 15 nm
           - 1475 - 1650 nm : 7 - 13 nm
  • Out-of-band blocking : OD 6 (0.0001 % Transmission)
  • F00 - F02 : Blocks up to 600 nm
  • F03 - F15 : Blocks up to 1700 nm
  • Stable operation span : 5 years

/ General Specifications

  • Aperture size : 5 mm





Broadband Tunable Spectral Wavelength and Adjustable Bandwidth

The broadband range of the wavelength and the transmission bandwidth can be adjusted by manual control.





Simple Manual Adjustment

Separate knobs enable independent manual settings of both the center wavelength and the transmission bandwidth. (Gear 1:1)





Imaging Detection

Simple integration into microscopes, telescopes, cameras, light sources and other common photonic instruments.











High Out-of-band Rejection

High (10-6) out-of-band rejection avoids unwanted spectral leakage and

associated background noise typical of liquid crystal-based filtering systems.
