Mighty Light - Tungsten Halogen

The Mighty Light Tungsten Halogen (ML - TH) is a compact white light source that is ideal for microscopy, spectroscopy, machine vision, and spectral imaging applications.



The Mighty Light integrates a tungsten halogen bulb and power supply with a control board that delivers uniquely low-noise output.  A series of pre-aligned bolt-on accessories allow the broadband output to be coupled into a fiber or fiber bundle, homogenized and collimated, directly coupled into a microscope, or integrated with our unique Wavelength Selector devices to create a tunable, monochromatic beam.



*Currency : US DOLLAR only
*CHECK the SPEC SHEET for the exact specifications of the products

Product Number Specific Description Product Size(mm) Availability Price(USD) Order
ML-TH Broadband light source, Spectral coverage : 350 ~ 2500 nm, Color temperature : ~ 2900 K 125 x 75 x 70 IN STOCK $1,800
ML-TH-Bulb Spare bulb for Mighty Light Tungsten Halogen IN STOCK $250

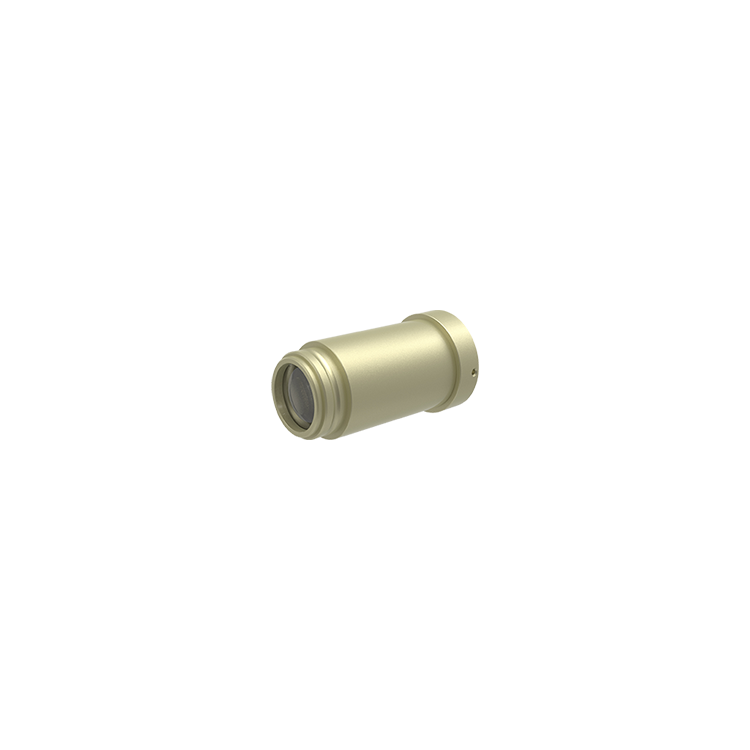

ML-CA Collimator accessory for Mighty Light Tungsten Halogen IN STOCK $500
ML-FA SMA type connector for Mighty Light Tungsten Halogen IN STOCK $400
/ Key Product Advantages
  • Type of lamp : Tungsten-Halogen
  • Lamp power Consumption : 12 W
  • Power stability : ±0.5%
  • Bulb lifetime : ~ 300 hours
  • Color temperature : ~ 2900 K
  • Dimensions : 125 mm x 75 mm x 70 mm
  • Electric requirement : 100 - 240 V AC, 50-60 Hz
  • Power supply : 9 V DC at 2 A
  • Broad continuous spectrum  350 nm ~ 2500 nm
  • Bolt-on options – no alignment required



Color Temperature

The Mighty Light Tungsten-Halogen lamp is operated at a color temperature of 2900 K.

This temperature delivers output from ~350 nm while also providing usable power beyond 2500 nm.

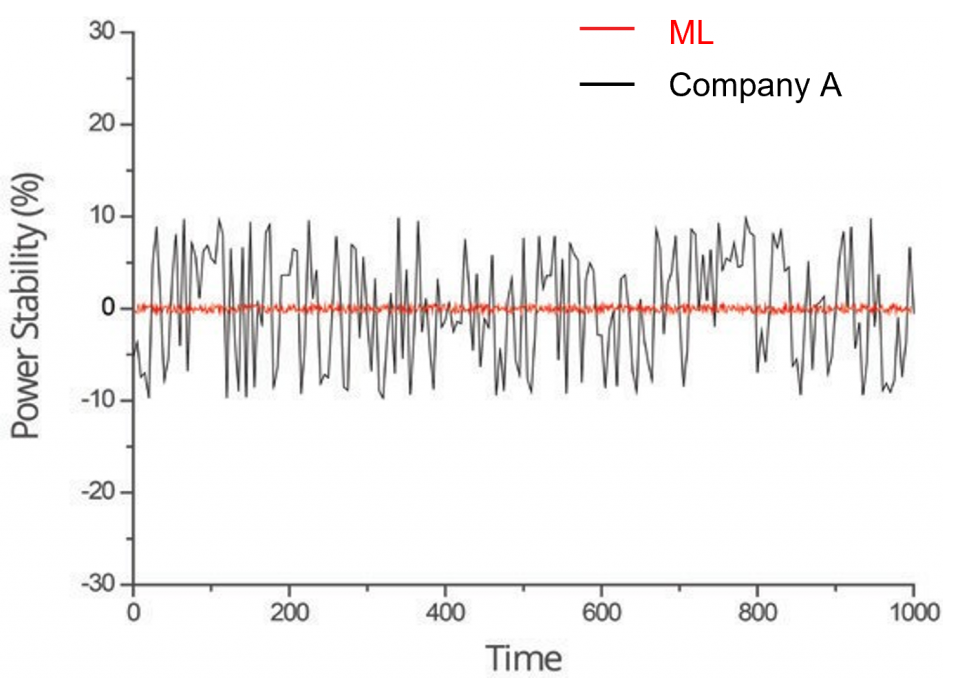

Stable Tunable Light Source

The Mighty Light power supply is operated closed loop by a custom control board.

This tight current control results in very low output noise (< 0.5%).

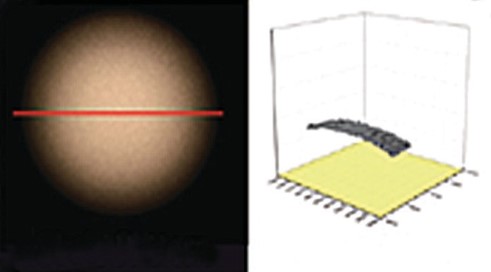

Uniform Circular Aperture

Uniform circular aperture simplifies spectral filtering of images and illumination sources,

avoiding the limitations of a typical monochromator slit geometry.





Demonstration Video

This short video shows how Mighty Light bolt-on accessories are used to provide a collimated beam,

a wavelength filtered beam, and fiber-coupled output.
