CenterLine20-A10 new

The Flexible Wavelength Selector utilizes TwinFilm™ technology to deliver the tunable wavelength filtering characteristics of a grating monochromator together with the circular aperture imaging capabilities of a bandpass filter.

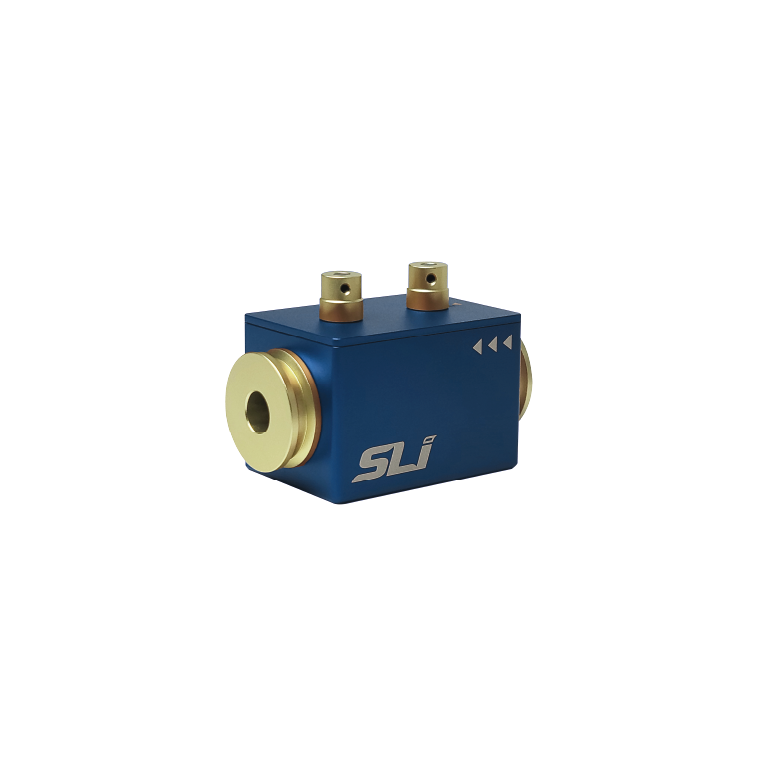

The Flexible Wavelength Selector (FWS) CenterLine is a manually tunable filter that features two knurled knob – one for adjusting the center wavelength with a fixed bandwidth of around 20 nm and one for compensating the beam direction offset.





A5 : Suitable for lasers, supercontinuum lasers

A10 : Suitable for light sources with large beam size (tungsten-halogen, plasma, LED)



/ Key Product Advantages

  • Broad wavelength tuning
  • Fixed bandwidth (FWHM 20 nm, nominal)
  • Circular uniform aperture
  • Compact optomechanical device
  • High (OD 5) out of band blocking





*Note : For the optimal performance of Wavelength Selectors, the incident light should be collimated.



*Note : F00 - F02 models can block up to 600 nm.

*Currency : US DOLLAR only

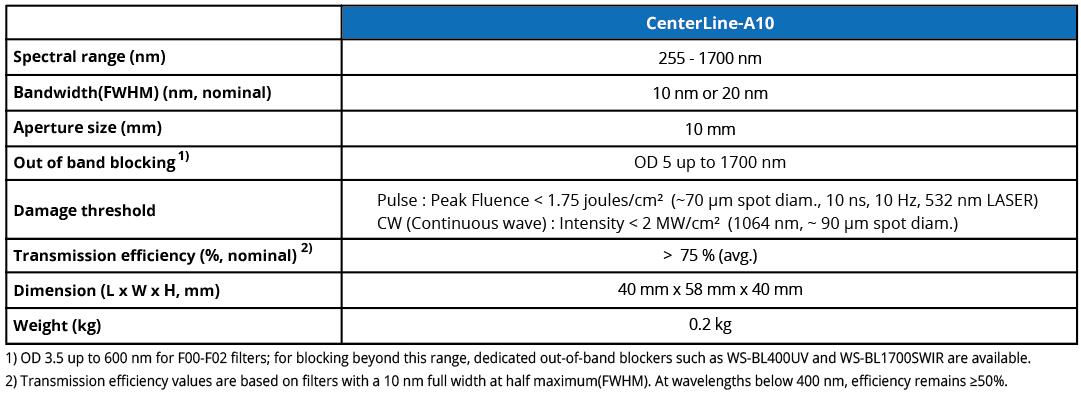

*CHECK the SPEC SHEET for the exact specifications of the products

Product Number Product Size(mm) Spectral Range FWHM Aperture Size Availability Price(USD) Order
CL20-F00-A10 40 x 58 x 40 255 - 290 nm 20 nm (nominal) 10 mm IN STOCK $2,300
CL20-F01-A10 40 x 58 x 40 280 - 310 nm 20 nm (nominal) 10 mm IN STOCK $2,300
CL20-F02-A10 40 x 58 x 40 310 - 350 nm 20 nm (nominal) 10 mm IN STOCK $2,300
CL20-F03-A10 40 x 58 x 40 348 - 390 nm 20 nm (nominal) 10 mm IN STOCK $2,400
CL20-F04-A10 40 x 58 x 40 385 - 435 nm 20 nm (nominal) 10 mm IN STOCK $2,400
CL20-F05-A10 40 x 58 x 40 430 - 490 nm 20 nm (nominal) 10 mm IN STOCK $2,400
CL20-F06-A10 40 x 58 x 40 485 - 550 nm 20 nm (nominal) 10 mm IN STOCK $2,400
CL20-F07-A10 40 x 58 x 40 545 - 620 nm 20 nm (nominal) 10 mm IN STOCK $2,400
CL20-F08-A10 40 x 58 x 40 615 - 700 nm 20 nm (nominal) 10 mm IN STOCK $2,400
CL20-F09-A10 40 x 58 x 40 690 - 790 nm 20 nm (nominal) 10 mm IN STOCK $2,400
CL20-F10-A10 40 x 58 x 40 775 - 890 nm 20 nm (nominal) 10 mm IN STOCK $2,500
CL20-F11-A10 40 x 58 x 40 880 - 1015 nm 20 nm (nominal) 10 mm IN STOCK $2,600
CL20-F12-A10 40 x 58 x 40 1000 - 1150 nm 20 nm (nominal) 10 mm IN STOCK $2,500
CL20-F13-A10 40 x 58 x 40 1140 - 1310 nm 20 nm (nominal) 10 mm IN STOCK $2,500
CL20-F14-A10 40 x 58 x 40 1300 - 1500 nm 20 nm (nominal) 10 mm IN STOCK $2,600
CL20-F15-A10 40 x 58 x 40 1475 - 1700 nm 20 nm (nominal) 10 mm IN STOCK $2,600

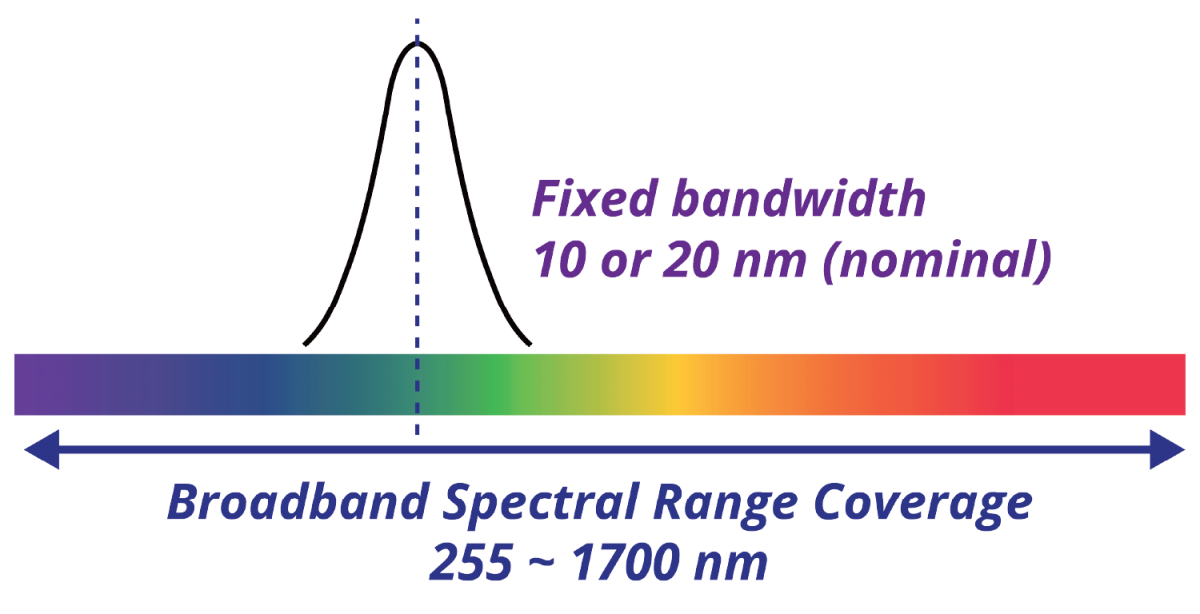

Center Wavelength Adjustable

The center wavelength is adjustable to any value ranging between 255 - 1700 nm. (FWHM : 10 or 20 nm (nominal))





Simple Manual Adjustment

Separate knobs enable independent manual setting of both the center wavelength and the transmission bandwidth. (Gear 1:1)





Imaging Detection

Simple integration into microscopes, telescopes, cameras, light sources and other common photonic instruments.





High Out-of-band Rejection

High (10-6) out of band rejection avoids unwanted spectral leakage

and associated background noise typical of liquid crystal based filtering systems.
