High Resolution-A10 new

The Flexible Wavelength Selector utilizes TwinFilm™ technology to deliver the tunable wavelength filtering characteristics of a grating monochromator together with the circular aperture imaging capabilities of a bandpass filter.

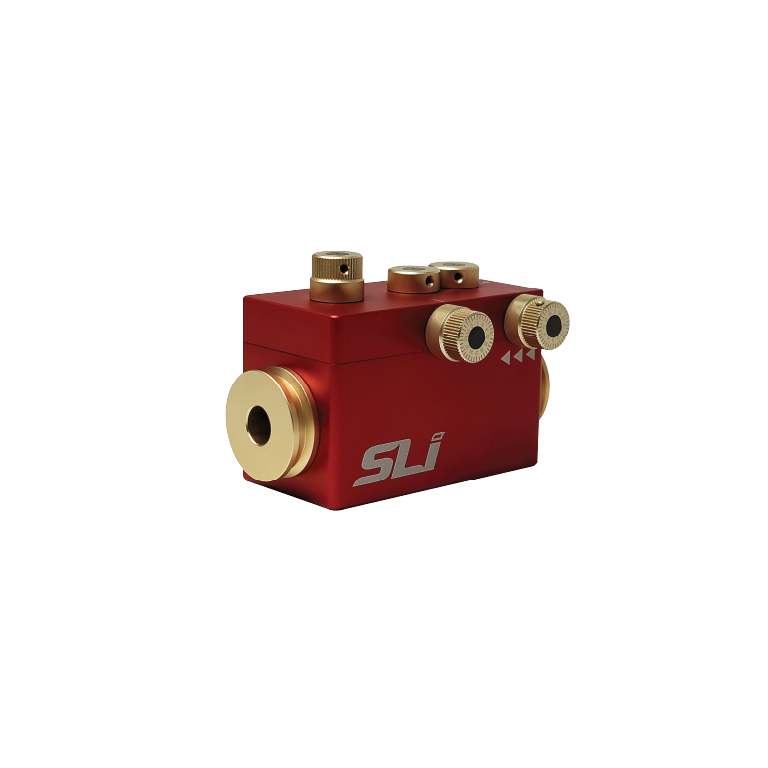

The Flexible Wavelength Selector (FWS) High Resolution is a manually tunable filter that provides smooth and precise manual adjustment; both the center wavelength and bandwidth are independently set with two multi-rotation manual dials for maximum resolution. An internal compensator maintains output alignment.





A5 : Suitable for lasers, supercontinuum lasers

A10 : Suitable for light sources with large beam size (tungsten-halogen, plasma, LED)





*Note : For the optimal performance of Wavelength Selectors, the incident light should be collimated.



*Note : F00 - F02 models can block up to 600 nm.

*Currency : US DOLLAR only
*CHECK the SPEC SHEET for the exact specifications of the products

Product Number Product Size(mm) Spectral Range FWHM Aperture Size Transmission Availability Price(USD) Order
HR-F00-A10 40 X 76 X 50 255 - 290 nm 2 - 15 nm 10 mm > 75 % IN STOCK $3,700
HR-F01-A10 40 X 76 X 50 280 - 310 nm 2 - 15 nm 10 mm > 75 % IN STOCK $3,700
HR-F02-A10 40 X 76 X 50 310 - 350 nm 2 - 15 nm 10 mm > 75 % IN STOCK $3,700
HR-F03-A10 40 X 76 X 50 348 - 390 nm 2 - 15 nm 10 mm > 75 % IN STOCK $3,700
HR-F04-A10 40 X 76 X 50 385 - 435 nm 2 - 15 nm 10 mm > 75 % IN STOCK $3,700
HR-F05-A10 40 X 76 X 50 430 - 490 nm 2 - 15 nm 10 mm > 75 % IN STOCK $3,700
HR-F06-A10 40 X 76 X 50 485 - 550 nm 2 - 15 nm 10 mm > 75 % IN STOCK $3,700
HR-F07-A10 40 X 76 X 50 545 - 620 nm 2 - 15 nm 10 mm > 75 % IN STOCK $3,700
HR-F08-A10 40 X 76 X 50 615 - 700 nm 2 - 15 nm 10 mm > 75 % IN STOCK $3,700
HR-F09-A10 40 X 76 X 50 690 - 790 nm 3 - 15 nm 10 mm > 75 % IN STOCK $3,700
HR-F10-A10 40 X 76 X 50 775 - 890 nm 3 - 15 nm 10 mm > 75 % IN STOCK $4,000
HR-F11-A10 40 X 76 X 50 880 - 1015 nm 5 ~ 15 nm 10 mm > 75 % IN STOCK $4,500
HR-F12-A10 40 X 76 X 50 1000 - 1150 nm 5 ~ 15 nm 10 mm > 75 % IN STOCK $4,200
HR-F13-A10 40 X 76 X 50 1140 - 1310 nm 5 ~ 15 nm 10 mm > 75 % IN STOCK $4,200
HR-F14-A10 40 X 76 X 50 1300 - 1500 nm 5 ~ 15 nm 10 mm > 75 % IN STOCK $4,500
HR-F15-A10 40 X 76 X 50 1475 - 1700 nm 7 - 13 nm 10 mm > 75 % IN STOCK $4,500

/ Key Product Advantages

  • Broad spectral wavelength tuning
  • Precise bandwidth adjustment (FWHM 2 - 15 nm)
  • Circular uniform aperture
  • High (10-6) out of band rejection
  • Compact (40 x 76 x 50 mm)
  • Precise manual adjustment (Gear 27 : 1)

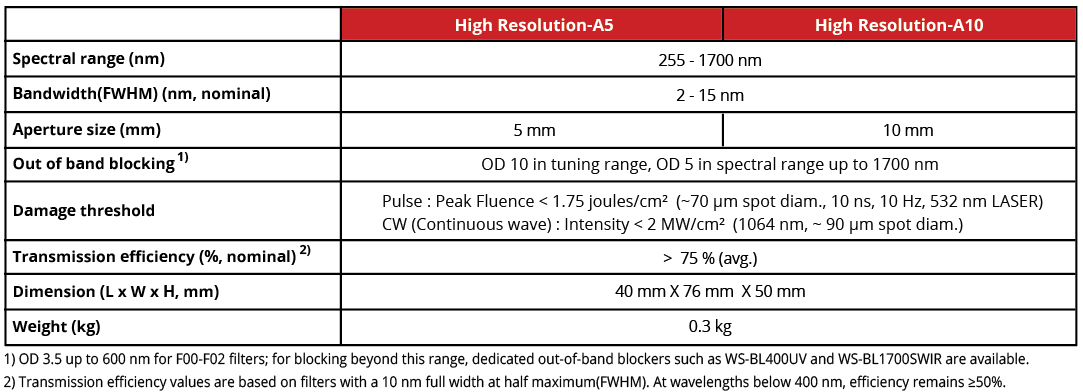

/ Optical Specification

  • Transmission : > 75% (in proportion to the input light power / FWHM > 10 nm)
  • Tunable spectral wavelength : 255 - 1700 nm
  • FWHM range
           - 255 - 700 nm : 2 - 15 nm
           - 690 - 890 nm : 3 - 15 nm
           - 880 - 1500 nm : 5 - 15 nm
           - 1475 - 1700 nm : 7 - 13 nm
  • Out-of-band blocking : OD 6 (0.0001 % Transmission)
  • F00 - F02 : Blocks up to 600 nm
  • F03 - F15 : Blocks up to 1700 nm
  • Stable operation span : 5 years

/ General Specifications

  • Aperture size : 10 mm






Broadband Tunable Spectral Wavelength and Adjustable Bandwidth

The broadband range of the wavelength and the transmission bandwidth can be adjusted by manual control.





Precise Manual Adjustment

Separate multi-rotation dials enable precise manual adjustment of both the center wavelength and the transmission bandwidth.

(Gear 27:1)





Imaging Detection

Simple integration into microscopes, telescopes, cameras, light sources and other common photonic instruments.









High Out-of-band Rejection

High (10-6) out of band rejection avoids unwanted spectral leakage

and associated background noise typical of liquid crystal based filtering systems.
