TLS-RED new

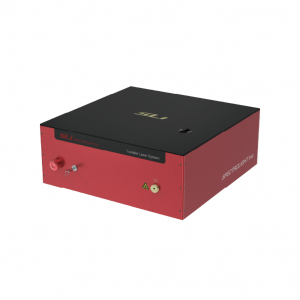

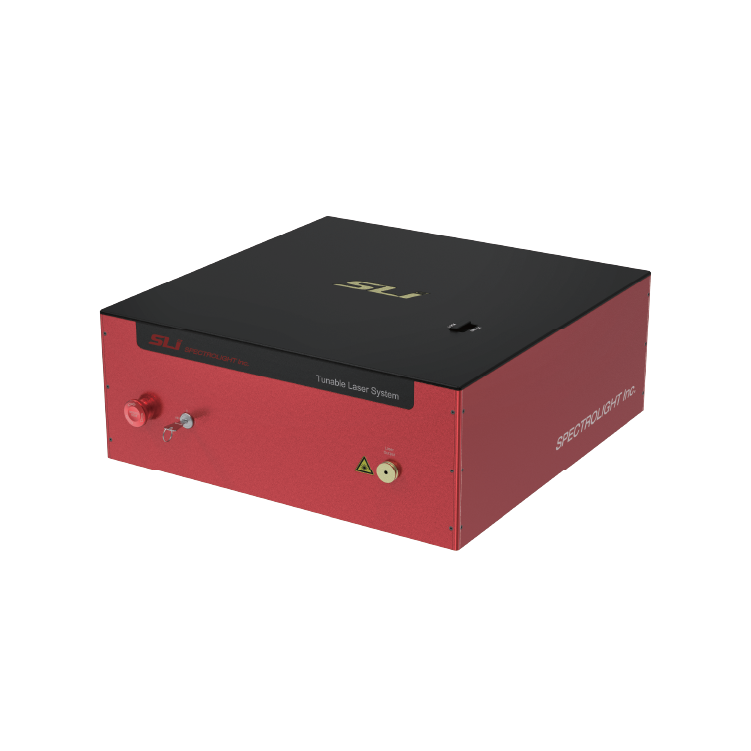

The Tunable Laser System is the all in one tunable light source system by Spectrolight. It enables easy yet precise selection of a broad spectral range of 410 - 1700 nm. TLS is a one-box system and requires no alignments or adjustments allowing instant application.



* For CUSTOM model orders, please state the required spectral wavelength and FWHM in the remarks column (during order process).



*Currency : US DOLLAR only
*CHECK the SPEC SHEET for the exact specifications of the products

Product Number Specific Description Product Size(mm) Availability Price(USD) Order
TSL10-RED-VIS Output power : 1 W VIS power : 0.1 W Repetition rate : 5 MHz Tunable CWL : 450 - 790 nm FWHM : 2 - 15 nm (450 - 700 nm), 3 - 15 nm (701 - 790 nm) Dimensions : 584.3 x 584.6 x 246 (mm) LEADTIME TBD
TSL10-RED-IR Output power : 1 W VIS power : 0.1 W Repetition rate : 5 MHz Tunable CWL : 775 - 1150 nm FWHM : 3 - 15 nm (775 - 890 nm), 5 - 15 nm (891 - 1150 nm) Dimensions : 584.3 x 584.6 x 246 (mm) LEADTIME TBD
TSL10-RED-SWIR Output power : 1 W VIS power : 0.1 W Repetition rate : 5 MHz Tunable CWL : 1140 - 1700 nm FWHM : 5 - 15 nm (1140 - 1500 nm), 7 - 13 nm (1501 - 1700 nm) Dimensions : 584.3 x 584.6 x 246 (mm) LEADTIME TBD
TSL10-RED-Custom Output power : 1 W VIS power : 0.1 W Repetition rate : 5 MHz Tunable CWL : USER SPECIFIED (Range selectable from 450 - 1700 nm) FWHM : 2 - 15 nm (nominal) Dimensions : 584.3 x 584.6 x 246 (mm) LEADTIME TBD
TSLM10-RED-VIS Output power : 1 W VIS power : 0.25 W Repetition rate : 10 MHz Tunable CWL : 410 - 790 nm FWHM : 2 - 15 nm (410 - 700 nm), 3 - 15 nm (701 - 790 nm) Dimensions : 584.3 x 584.6 x 246 (mm) LEADTIME TBD
TSLM10-RED-IR Output power : 1 W VIS power : 0.25 W Repetition rate : 10 MHz Tunable CWL : 775 - 1150 nm FWHM : 3 - 15 nm (775 - 890 nm), 5 - 15 nm (891 - 1150 nm) Dimensions : 584.3 x 584.6 x 246 (mm) LEADTIME TBD
TSLM10-RED-SWIR Output power : 1 W VIS power : 0.25 W Repetition rate : 10 MHz Tunable CWL : 1140 - 1700 nm FWHM : 5 - 15 nm (1140 - 1500 nm), 7 - 13 nm (1501 - 1700 nm) Dimensions : 584.3 x 584.6 x 246 (mm) LEADTIME TBD
TSLM10-RED-Custom Output power : 1 W VIS power : 0.25 W Repetition rate : 10 MHz Tunable CWL : USER SPECIFIED (Range selectable from 410 - 1700 nm) FWHM : 2 - 15 nm (nominal) Dimensions : 584.3 x 584.6 x 246 (mm) LEADTIME TBD
TSLM20-RED-VIS Output power : 2 W VIS power : 0.5 W Repetition rate : 20 MHz Tunable CWL : 410 - 790 nm FWHM : 2 - 15 nm (410 - 700 nm), 3 - 15 nm (701 - 790 nm) Dimensions : 584.3 x 584.6 x 246 (mm) LEADTIME TBD
TSLM20-RED-IR Output power : 2 W VIS power : 0.5 W Repetition rate : 20 MHz Tunable CWL : 775 - 1150 nm FWHM : 3 - 15 nm (775 - 890 nm), 5 - 15 nm (891 - 1150 nm) Dimensions : 584.3 x 584.6 x 246 (mm) LEADTIME TBD
TSLM20-RED-SWIR Output power : 2 W VIS power : 0.5 W Repetition rate : 20 MHz Tunable CWL : 1140 - 1700 nm FWHM : 5 - 15 nm (1140 - 1500 nm), 7 - 13 nm (1501 - 1700 nm) Dimensions : 584.3 x 584.6 x 246 (mm) LEADTIME TBD
TSLM20-RED-Custom Output power : 2 W VIS power : 0.5 W Repetition rate : 20 MHz Tunable CWL : USER SPECIFIED (Range selectable from 410 - 1700 nm) FWHM : 2 - 15 nm (nominal) Dimensions : 584.3 x 584.6 x 246 (mm) LEADTIME TBD
TSLM40-RED-VIS Output power : 4 W VIS power : 1 W Repetition rate : 40 MHz Tunable CWL : 410 - 790 nm FWHM : 2 - 15 nm (410 - 700 nm), 3 - 15 nm (701 - 790 nm) Dimensions : 584.3 x 584.6 x 246 (mm) LEADTIME TBD
TSLM40-RED-IR Output power : 4 W VIS power : 1 W Repetition rate : 40 MHz Tunable CWL : 775 - 1150 nm FWHM : 3 - 15 nm (775 - 890 nm), 5 - 15 nm (891 - 1150 nm) Dimensions : 584.3 x 584.6 x 246 (mm) LEADTIME TBD
TSLM40-RED-SWIR Output power : 4 W VIS power : 1 W Repetition rate : 40 MHz Tunable CWL : 1140 - 1700 nm FWHM : 5 - 15 nm (1140 - 1500 nm), 7 - 13 nm (1501 - 1700 nm) Dimensions : 584.3 x 584.6 x 246 (mm) LEADTIME TBD
TSLM40-RED-Custom Output power : 4 W VIS power : 1 W Repetition rate : 40 MHz Tunable CWL : USER SPECIFIED (Range selectable from 410 - 1700 nm) FWHM : 2 - 15 nm (nominal) Dimensions : 584.3 x 584.6 x 246 (mm) LEADTIME TBD
TSLM35V-RED-VIS Output power : 3.5 W VIS power : 1 W Repetition rate : 0.01 - 40 MHz adjustable Tunable CWL : 410 - 790 nm FWHM : 2 - 15 nm (410 - 700 nm), 3 - 15 nm (701 - 790 nm) Dimensions : 584.3 x 584.6 x 246 (mm) LEADTIME TBD
TSLM35V-RED-IR Output power : 3.5 W VIS power : 1 W Repetition rate : 0.01 - 40 MHz adjustable Tunable CWL : 775 - 1150 nm FWHM : 3 - 15 nm (775 - 890 nm), 5 - 15 nm (891 - 1150 nm) Dimensions : 584.3 x 584.6 x 246 (mm) LEADTIME TBD
TSLM35V-RED-SWIR Output power : 3.5 W VIS power : 1 W Repetition rate : 0.01 - 40 MHz adjustable Tunable CWL : 1140 - 1700 nm FWHM : 5 - 15 nm (1140 - 1500 nm), 7 - 13 nm (1501 - 1700 nm) Dimensions : 584.3 x 584.6 x 246 (mm) LEADTIME TBD
TSLM35V-RED-Custom Output power : 3.5 W VIS power : 1 W Repetition rate : 0.01 - 40 MHz adjustable Tunable CWL : USER SPECIFIED (Range selectable from 410 - 1700 nm) FWHM : 2 - 15 nm (nominal) Dimensions : 584.3 x 584.6 x 246 (mm) LEADTIME TBD
TSL80V-RED-VIS Output power : 8 W VIS power : 1 W Repetition rate : 0.01 - 200 MHz adjustable Tunable CWL : 430 - 790 nm FWHM : 2 - 15 nm (430 - 700 nm), 3 - 15 nm (701 - 790 nm) Dimensions : 584.3 x 584.6 x 246 (mm) LEADTIME TBD
TSL80V-RED-IR Output power : 8 W VIS power : 1 W Repetition rate : 0.01 - 200 MHz adjustable Tunable CWL : 775 - 1150 nm FWHM : 3 - 15 nm (775 - 890 nm), 5 - 15 nm (891 - 1150 nm) Dimensions : 584.3 x 584.6 x 246 (mm) LEADTIME TBD
TSL80V-RED-SWIR Output power : 8 W VIS power : 1 W Repetition rate : 0.01 - 200 MHz adjustable Tunable CWL : 1140 - 1700 nm FWHM : 5 - 15 nm (1140 - 1500 nm), 7 - 13 nm (1501 - 1700 nm) Dimensions : 584.3 x 584.6 x 246 (mm) LEADTIME TBD
TSL80V-RED-Custom Output power : 8 W VIS power : 1 W Repetition rate : 0.01 - 200 MHz adjustable Tunable CWL : USER SPECIFIED (Range selectable from 430 - 1700 nm) FWHM : 2 - 15 nm (nominal) Dimensions : 584.3 x 584.6 x 246 (mm) LEADTIME TBD
TSLM70-RED-VIS Output power : 7 W VIS power : 2 W Repetition rate : 80 MHz Tunable CWL : 410 - 790 nm FWHM : 2 - 15 nm (410 - 700 nm), 3 - 15 nm (701 - 790 nm) Dimensions : 584.3 x 584.6 x 246 (mm) LEADTIME TBD
TSLM70-RED-IR Output power : 7 W VIS power : 2 W Repetition rate : 80 MHz Tunable CWL : 775 - 1150 nm FWHM : 3 - 15 nm (775 - 890 nm), 5 - 15 nm (891 - 1150 nm) Dimensions : 584.3 x 584.6 x 246 (mm) LEADTIME TBD
TSLM70-RED-SWIR Output power : 7 W VIS power : 2 W Repetition rate : 80 MHz Tunable CWL : 1140 - 1700 nm FWHM : 5 - 15 nm (1140 - 1500 nm), 7 - 13 nm (1501 - 1700 nm) Dimensions : 584.3 x 584.6 x 246 (mm) LEADTIME TBD
TSLM70-RED-Custom Output power : 7 W VIS power : 2 W Repetition rate : 80 MHz Tunable CWL : USER SPECIFIED (Range selectable from 410 - 1700 nm) FWHM : 2 - 15 nm (nominal) Dimensions : 584.3 x 584.6 x 246 (mm) LEADTIME $0

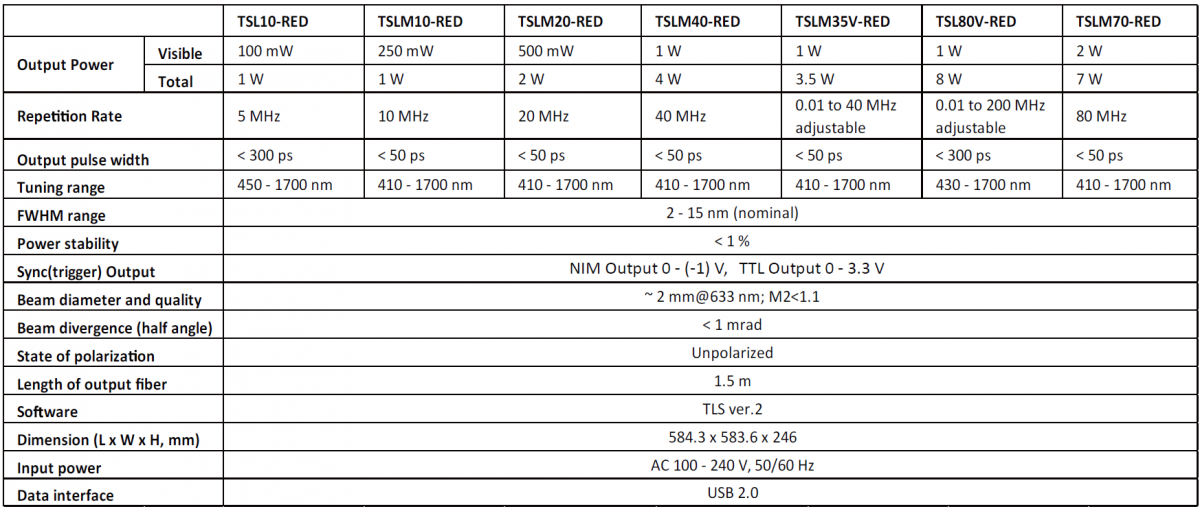

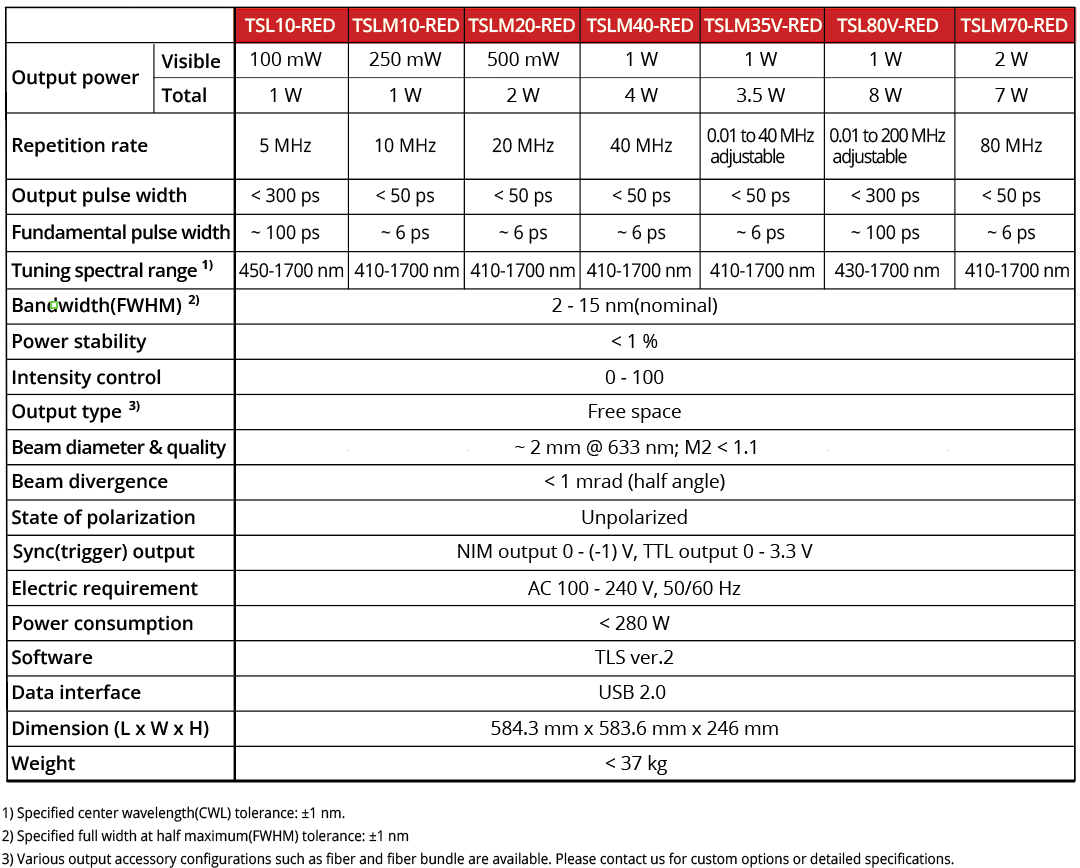

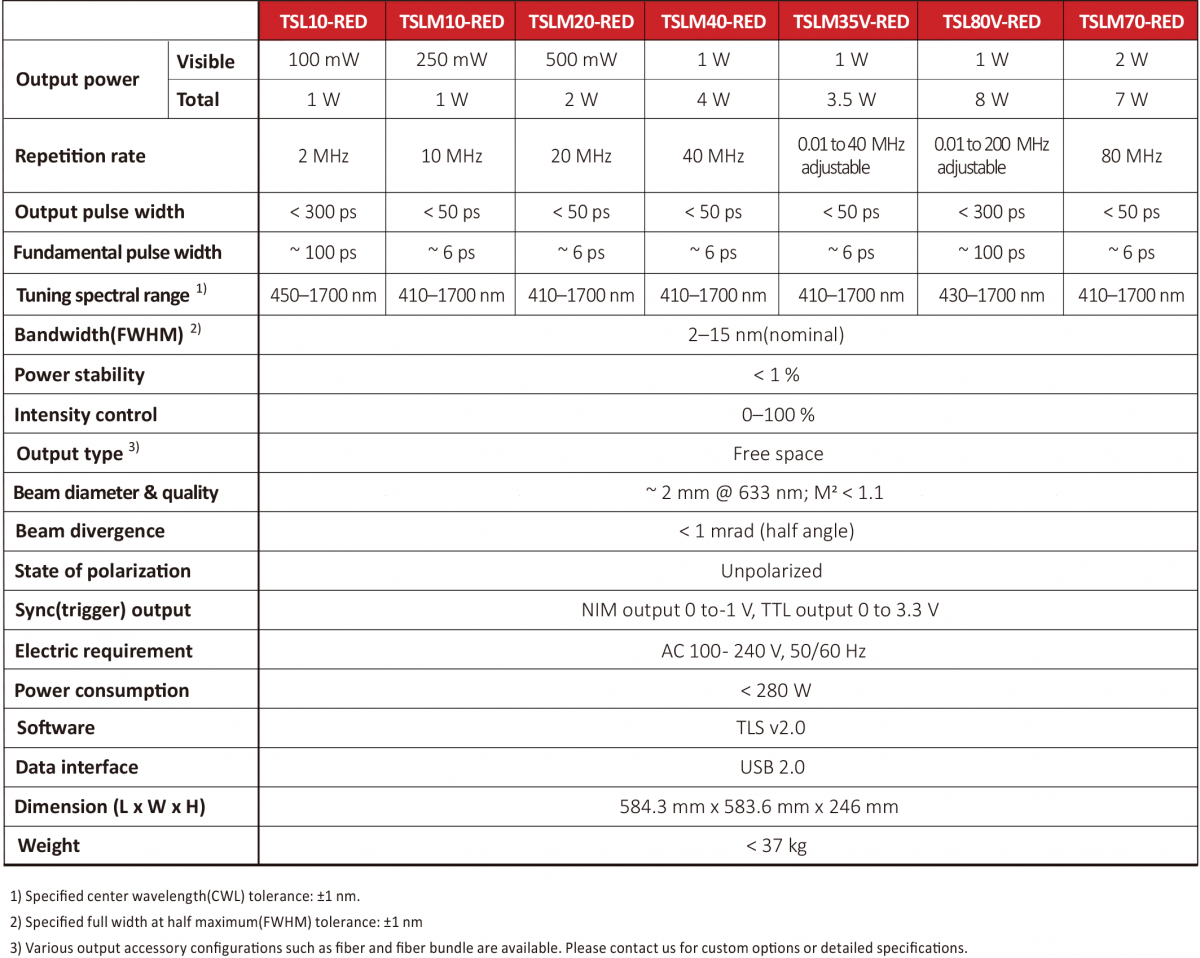

/ TLS-RED Specifications







/ TLS-RED Custom Model

For the Custom models, users can select a supercontinuum laser model and variable wavelength ranges according to the user’s applications. Please refer to the table below for supercontinuum laser models and wavelength ranges. For example, if the user selects the supercontinuum laser model as SL10 and the wavelength range of 690 – 1310 nm, then the model name of the TLS will be TSL10-RED-Custom (690 -1310 nm).



The supercontinuum laser model table

SP-Pico : Supercontiuum laser



Wavelength range table

User specified custom wavelength range selectable from 410 - 1700 nm (nominal)











The world's one and only UV, VIS, SWIR continuous laser

For more information, CLICK HERE

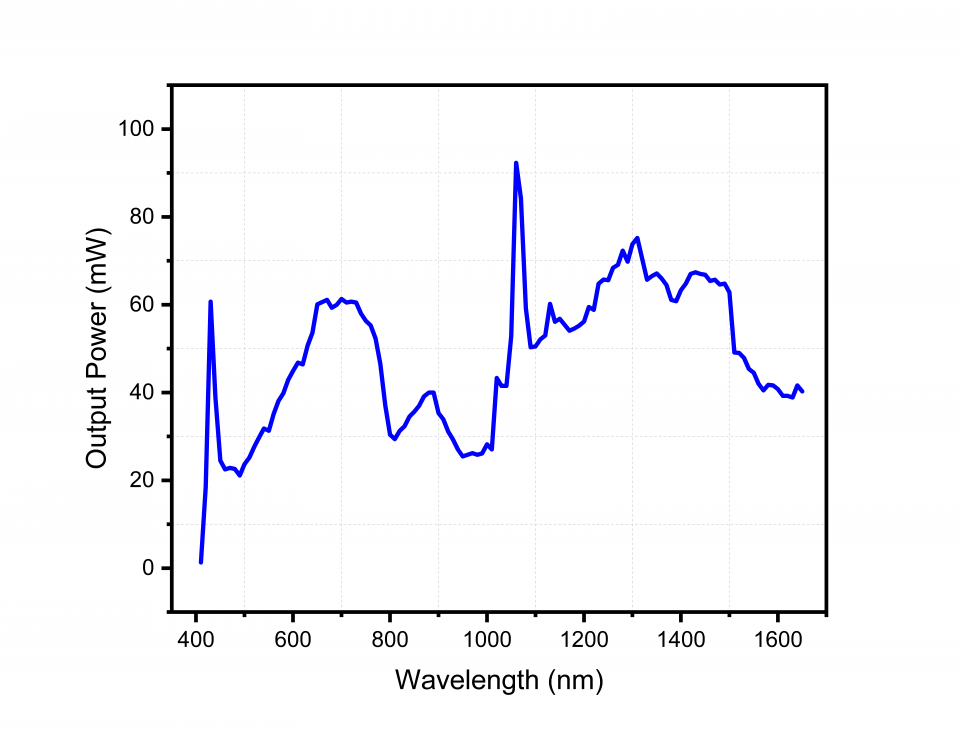

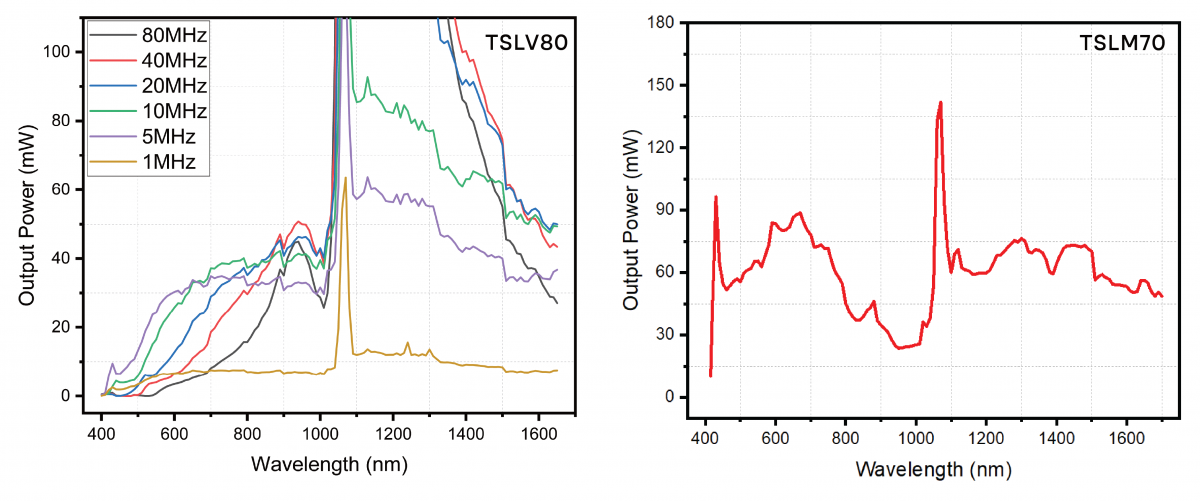

High Output Power of TLS

> 40 mW (Maximum power at 10 nm FWHM)

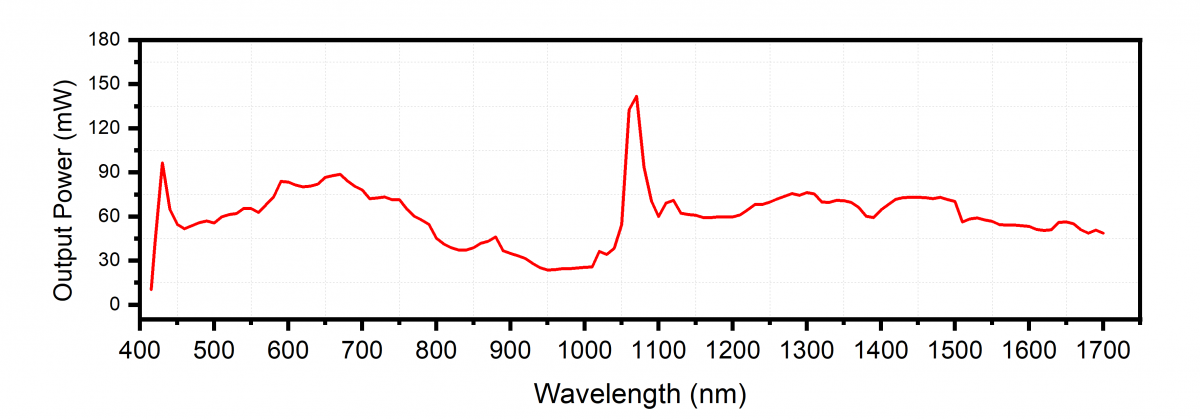

*Graphs measured at 15 nm bandwidth (FWHM)





Broadband Tunable Spectral Wavelength and Adjustable Bandwidth

The broadband spectral range of the wavelength and the transmission bandwidth can be adjusted via quick and easy software control





High Out-of-band Blocking

High out-of-band blocking (OD 10) avoids unwanted spectral leakage and associated background noise typical of liquid crystal-based filtering systems





Stable Long-term Power Fluctuation

RSD is < 1 % at 650/15 nm

*RSD = Relative Standard Deviation





Speckle reduced Laser

TLS products are designed to reduce laser speckle noise, which is commonly found as a noise pattern in lasers, ensuring compatibility with imaging applications. Additionally, image segmentation is shown to be stable across a range of intensity levels.





Application Example : Si wafer inspection

Depending on the wavelength of the light source, you can check the image transmitted thgough the silicon wafer.

Acting as a comprehensive and tunable light source, TLS significantly simplifies the imaging process, reducing reliance on miltuple expensive instrument adjustments.









Spec Sheet User’s Manual
