FWS-Mono [Old Ver.]

The Flexible Wavelength Selector Mono (FWS-Mono) is a tunable filter which utilizes TwinFilm™ technology to provide a simple software control (scanning or setting) of the center wavelength and the bandwidth via a USB connector. The bandwidth can be adjusted from around 3 to 15 nm (nominal) also depending on the specific model(spectral range).



FWS-Mono is compatible with any type of broadband lamps or supercontinuum sources. Accessories are available here. For more information about compatibility please contact us at info@spectrolightinc.com.



FWS-Mono can also be used to convert a commercial fluorescence microscope into a hyperspectral imaging microscope. For more details click here.





*Note : For the optimal performance of Wavelength Selectors, the incident light should be collimated.

*Currency : US DOLLAR only
*CHECK the SPEC SHEET for the exact specifications of the products

Product Number Product Size(mm) Spectral Range FWHM Aperture Size Transmission Availability Price(USD) Order
FWS-MONO-380 48 x 92 x 64 358 ~ 400 nm 3 ~ 15 nm 10 mm > 75 % IN STOCK $4,785
FWS-MONO-425 48 x 92 x 64 395 ~ 447 nm 3 ~ 15 nm 10 mm > 75 % IN STOCK $4,176
FWS-MONO-475 48 x 92 x 64 447 ~ 501 nm 3 ~ 15 nm 10 mm > 75 % IN STOCK $4,176
FWS-MONO-530 48 x 92 x 64 496 ~ 561 nm 3 ~ 15 nm 10 mm > 75 % IN STOCK $4,176
FWS-MONO-595 48 x 92 x 64 555 ~ 628 nm 3 ~ 15 nm 10 mm > 75 % IN STOCK $4,176
FWS-MONO-665 48 x 92 x 64 621 ~ 703 nm 3 ~ 15 nm 10 mm > 75 % IN STOCK $4,176
FWS-MONO-745 48 x 92 x 64 700 ~ 790 nm 3 ~ 15 nm 10 mm > 75 % IN STOCK $4,176
FWS-MONO-845 48 x 92 x 64 784 ~ 900 nm 4 ~ 15 nm 10 mm > 75 % IN STOCK $4,176

/ Key Product Advantages

  • Fast software-controlled wavelength tuning
  • Software bandwidth adjustment (FWHM 3 ~ 15 nm, nominal)
  • Circular aperture (10 mm)
  • High (10-6) out of band rejection
  • Compact size

/ Optical Specifications

  • Transmission: > 75% (in proportion to the input light power / FWHM > 10 nm)
  • Total product range (nominal): 358 ~ 892 nm
  • Center wavelength accuracy: ± 0.5 nm
  • FWHM accuracy: ± 0.5 nm
  • Out-of-band blocking : OD 6 (0.00001 % Transmission)
  • Minumum step size of center wavelength: 0.5 nm
  • Minimum step size of bandwidth: 1 nm
  • Wavelength switching speed (nominal): 70 ~ 200 ms

/ General Specifications

  • Dimensions: 48 x 92 x 64 mm
  • Aperture size: 10 mm
  • Input power: 12 V, 2A
  • Data interface: USB 2.0

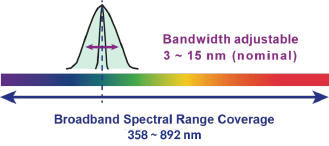

Broadband Wavelength and Adjustable Bandwidth

Wavelength becomes tunable in the broadband range and the transmission bandwidth becomes adjustable.





Applications with Various Light Sources

- NKT, LEUKOS, YSL Supercontinuum lasers
- Energetiq, ISTEQ Laser-Driven Light Source
- LED, Xenon and other lamp types













High Out-of-band Rejection

High (10-6) out-of-band extinction avoids unwanted spectral leakage and

associated background noise typical of liquid crystal-based filtering systems.







Simple Software Control

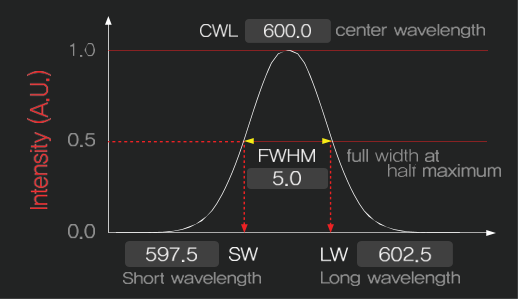

Simple and Easy control of the center wavelength and the transmission bandwidth with the automated software.

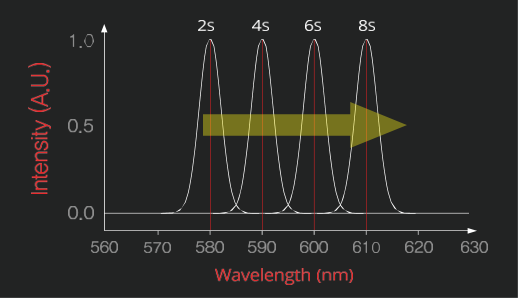

Custom wavelength scanning, setting and stepping are supported.

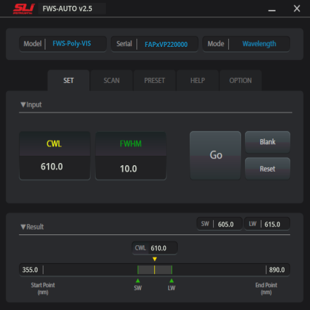

SET

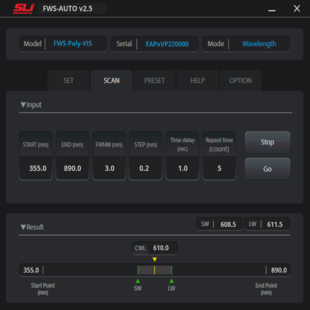

SCAN
