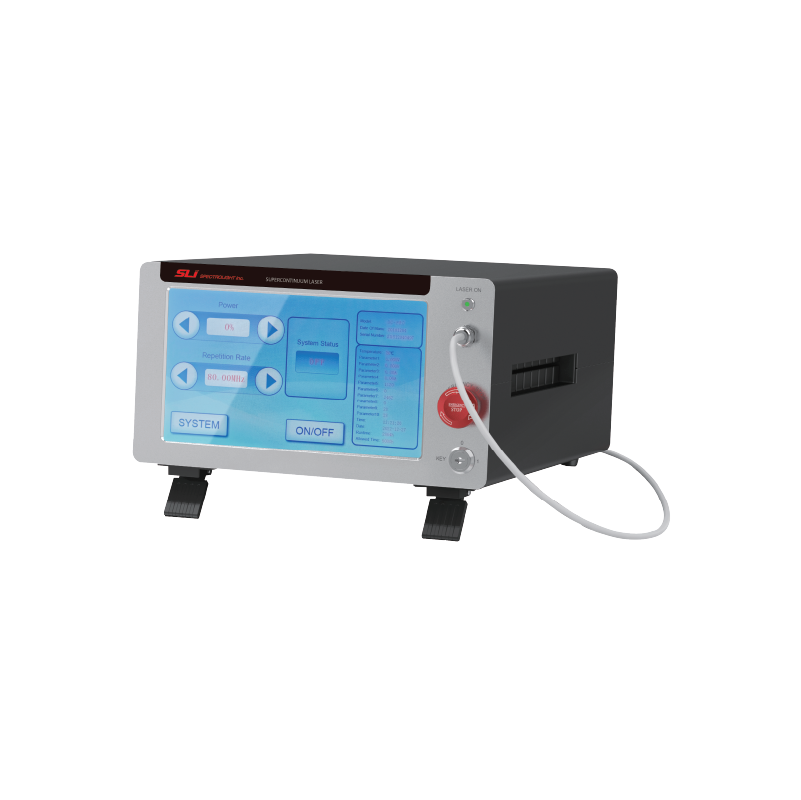

SL-Pico new

SL-Pico is Spectrolight's latest high-power pico-second pulsed supercontinuum light source with variable repetition rate from 0.01 - 80 MHz. It delivers a wide spectral output ranging from 430 - 2400 nm with 8 W total power (10 - 20 W optional). It has the unique feature of 1 - 80 MHz external triggerable range which could be very useful for locking to the mode-locked laser for pump-probe application. SC-Pro offers > 1 μJ pulse energy (@1 MHz), making it the ideal source for super resolution microscopy. Also, the 0.01 - 80 MHz repetition rate capability makes it an ideal source for the applications such as low noise OCT, fluorescence microscopy, nanophotonics and etc.



/ Key Product Advantages

- Spectral wavelength : 430 - 2400 nm

- Total power : > 8 W

- Visible power : > 1 W

- Internal repetition rate : 0.01 - 80 MHz (adjustable)

- Output pulse width : < 300 ps



For more information about compatibility please contact us at info@spectrolightinc.com



*Currency : US DOLLAR only
*CHECK the SPEC SHEET for the exact specifications of the products

Product Number Specific Description Product Size(mm) Availability Price(USD) Order
SL-Pico Total power : >8 W Visible power : > 1 W Spectral wavelength : 430 - 2400 nm Output pulse width : < 300 ps Internal repetition rate : 0.01 - 80 MHz (adjustable) 400 x 300 x 180 LEADTIME TBD

/ Specifications

  • Total power : >8 W
  • Spectral wavelength : 430 - 2400 nm
  • Visible power : > 1 W
  • Power stability : < 1%
  • Output pulse width : < 300 ps
  • Internal repetition rate : 0.01 ~ 80 MHz (adjustable)
  • External trigger (Optional) (SMA) : 100 kHz - 2 MHz or 1 MHz - 80 MHz, External trigger range 0 - 5V
  • Sync(trigger) Output : (Optional) NIM Output 0 - (-1) V or TTL Output 0 - 3.3 V
  • Beam diameter and quality : ~ 2 mm@633 nm;M2<1.1
  • Beam divergence (Half angle) : < 1 mrad
  • State of polarization : Unpolarized
  • Length of output fiber : 1.5 m
  • Dimension and weight : 400 x 300 x 180 mm, < 20 kg
  • Input power: 100 - 240 V, 50/60 Hz
  • Data interface : USB

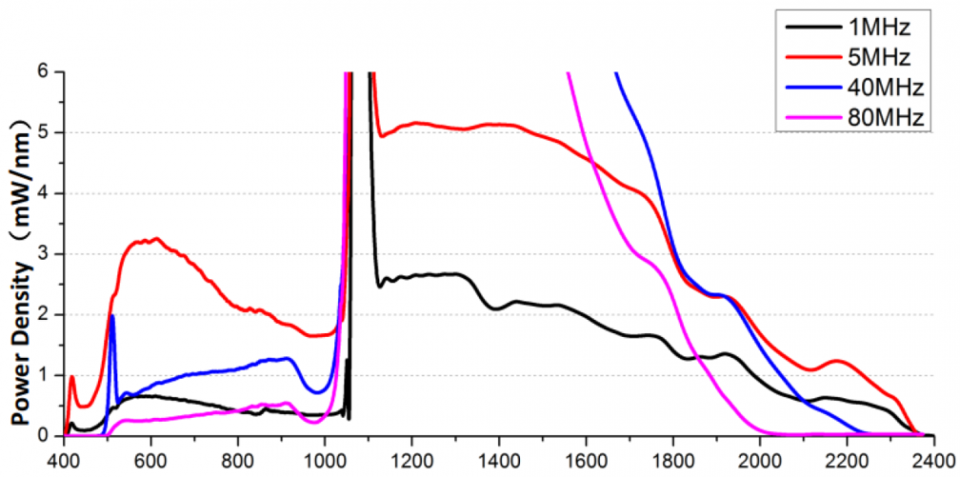

Typical Spectrum

Spectrum at each repetition rate using SL-Pico

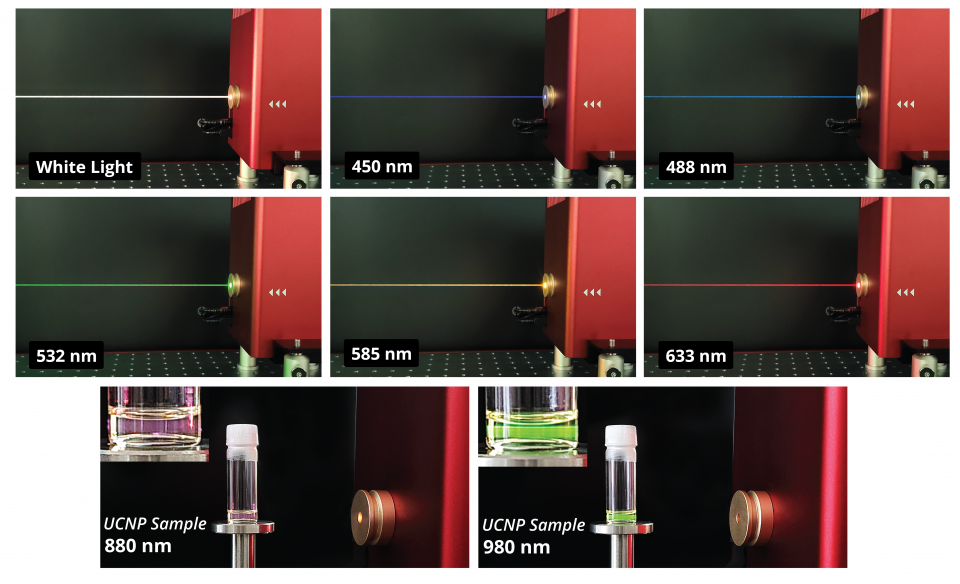

Application with FWS

For UCNPs, absorption occurs in the infrared and emission occurs in the visible or ultraviolet region of the electromagnetic spectrum
