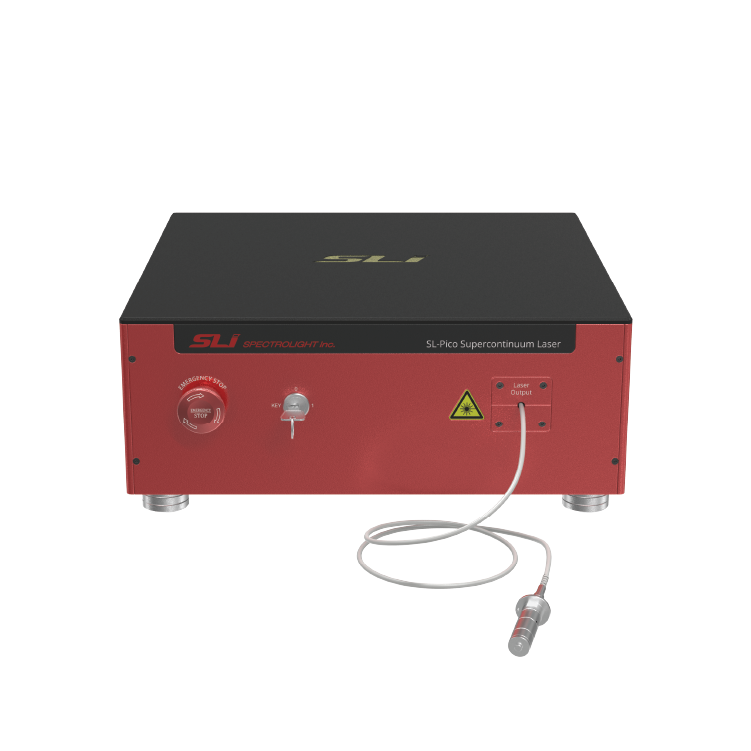

SL-Pico

SL-Pico-V and SL-Pico-F are the newest picosecond pulsed supercontinuum laser sources. These lasers are high-power, very stable, capable of delivering up to 20 W of power, and have a broad spectral range from 410 to 2400 nm. The SL-Pico-F series is a mode-locked fiber laser with a fixed repetition rate, and the SL-Pico V series has a tunable repetition rate.



*Currency : US DOLLAR only
*CHECK the SPEC SHEET for the exact specifications of the products

Product Number Specific Description Product Size(mm) Availability Price(USD) Order
SLF10 Total power : 1 W Visible power : 0.1 W Internal repetition rate : 5 MHz Spectral range : 450 - 2400 nm Fundamental pulse width : ~ 100 ps Output pulse width : < 300 ps Dimensions : 340 x 370 x 150 (mm) LEADTIME TBD
SLF15 Total power : 1.5 W Visible power : 0.5 W Internal repetition rate : 20 MHz Spectral range : 410 - 2400 nm Fundamental pulse width : ~ 6 ps Output pulse width : < 50 ps Dimensions : 440 x 470 x 150 (mm) LEADTIME TBD
SLV80 Total power : 8 W Visible power : 1 W Internal repetition rate : 0.01 to 200 MHz (adjustable) Spectral range : 430 - 2400 nm Fundamental pulse width : ~ 100 ps Output pulse width : < 300 ps Dimensions : 440 x 470 x 150 (mm) LEADTIME TBD
SLF70 Total power : 7 W Visible power : 2 W Internal repetition rate : 80 MHz Spectral range : 410 - 2400 nm Fundamental pulse width : ~ 6 ps Output pulse width : < 50 ps Dimensions : 440 x 470 x 150 (mm) LEADTIME TBD

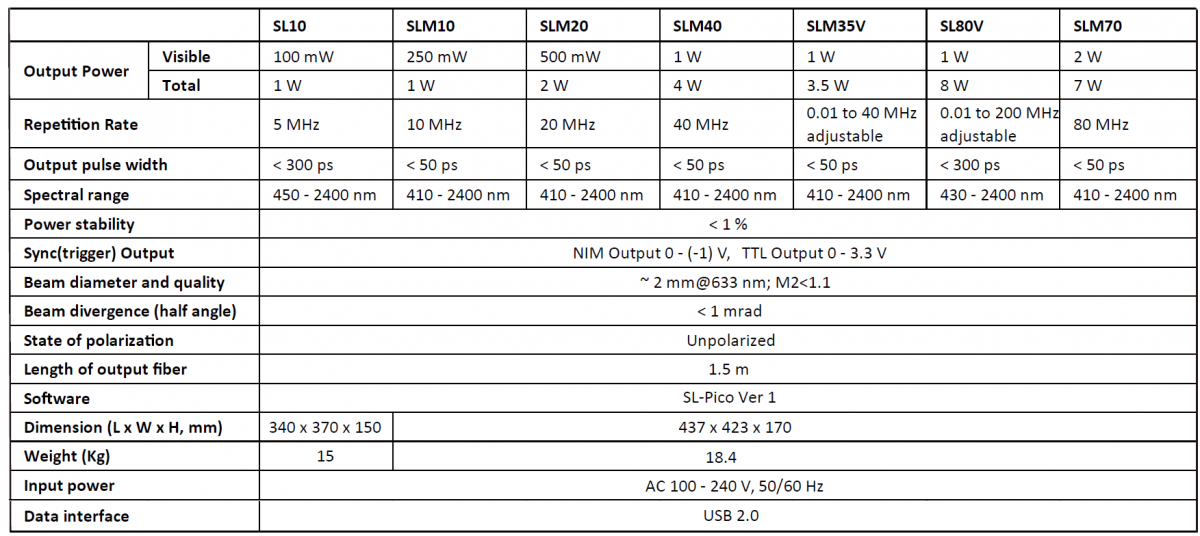

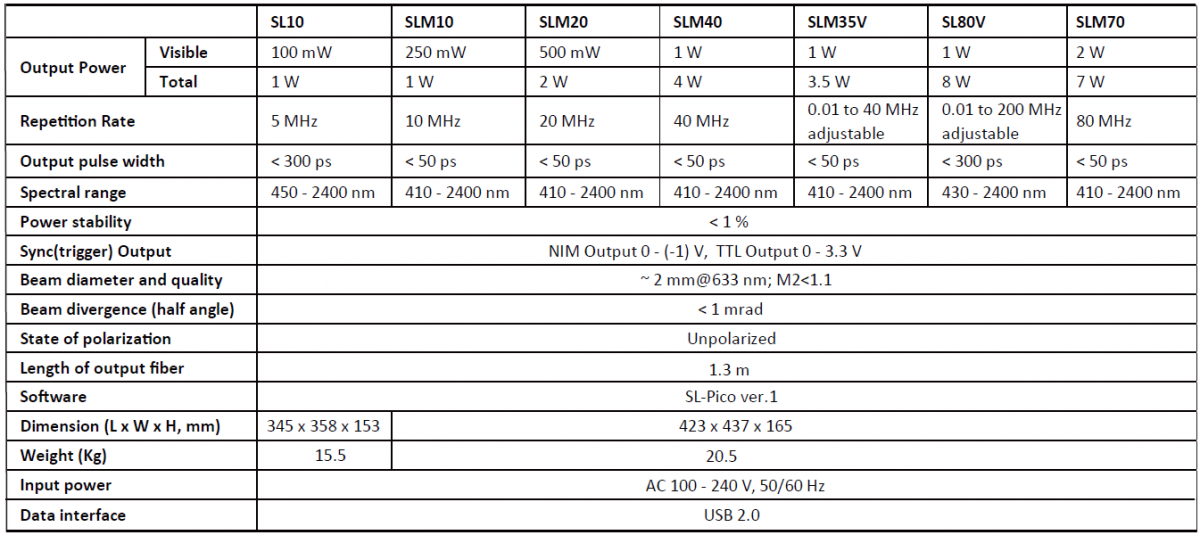

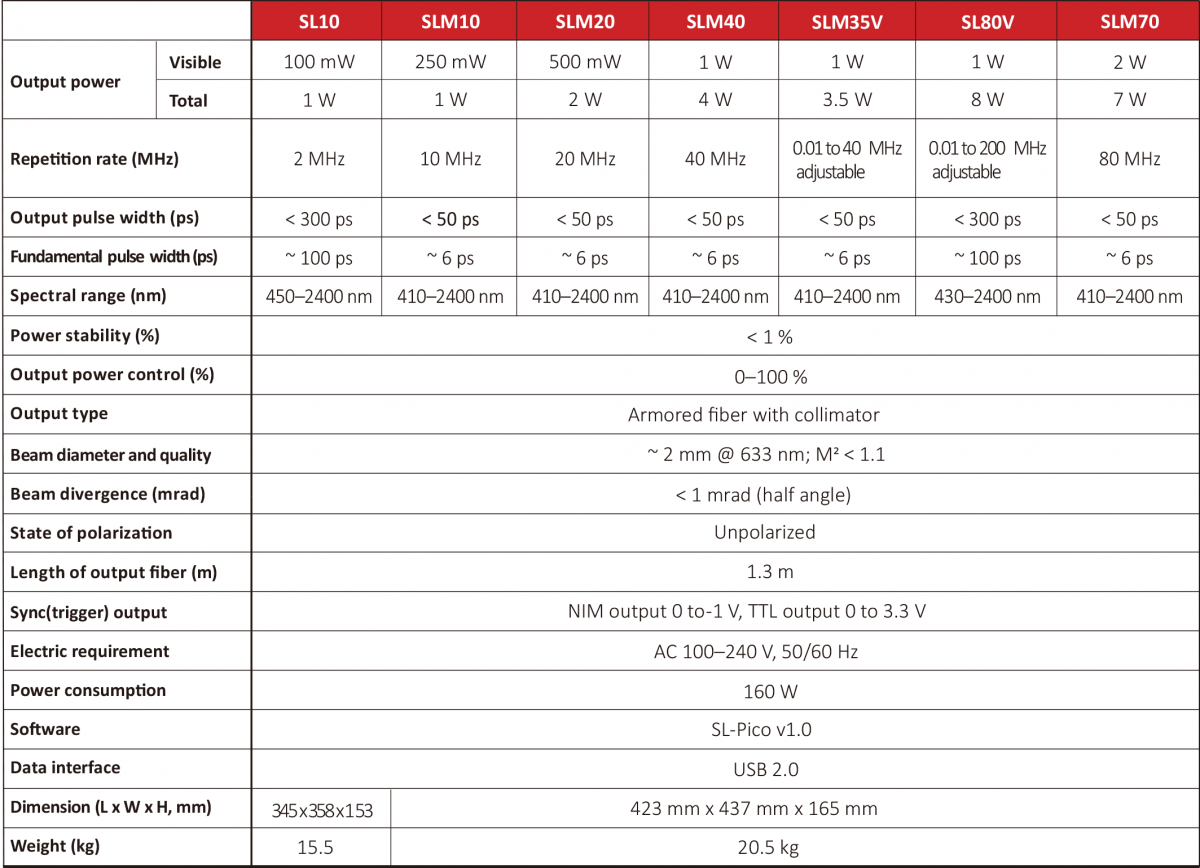

/ General Specifications





SL-Pico V Series

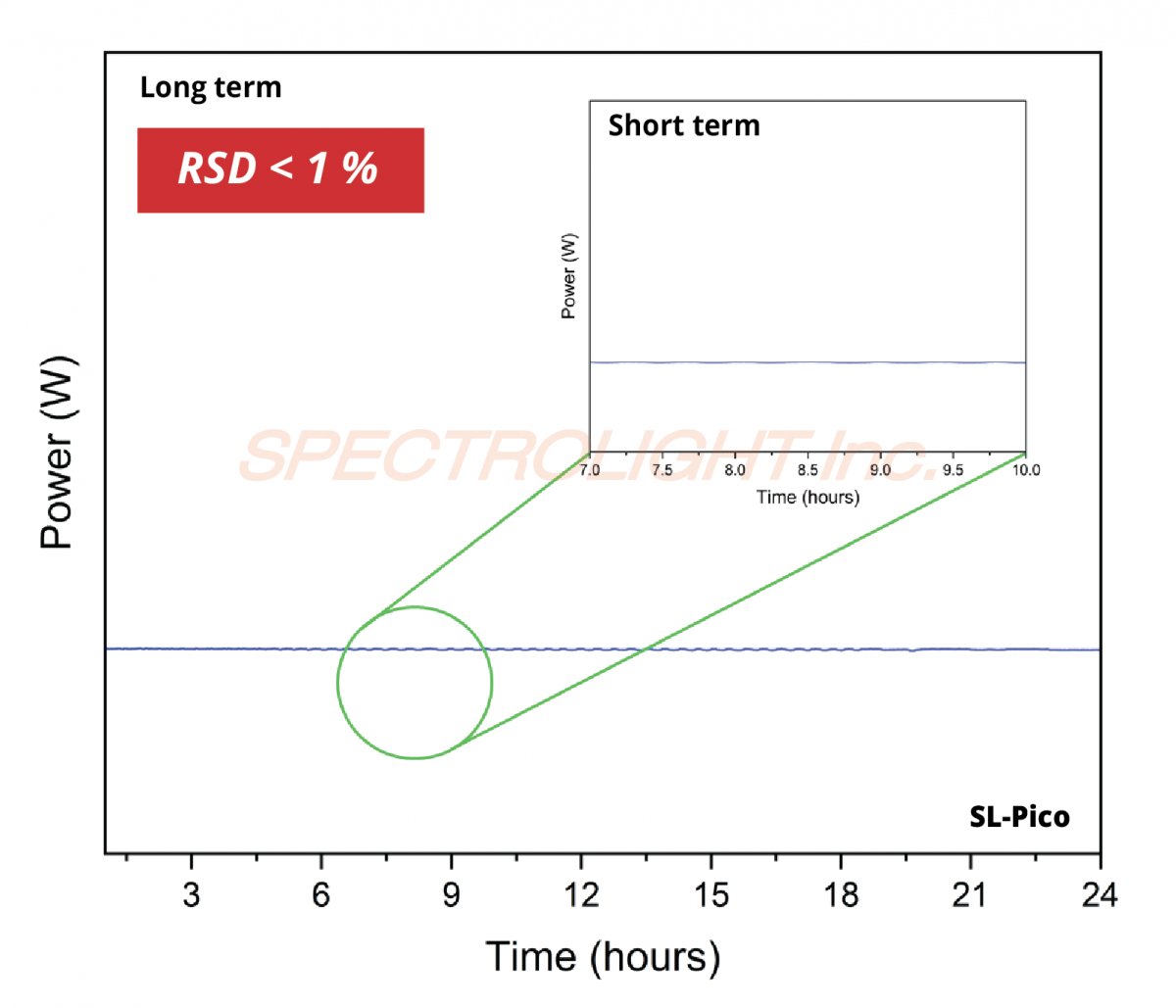

  • Power stability : < 1 %
  • Output pulse width : < 300 ps
  • Internal repetition rate : 0.01- 200 MHz adjustable
  • Sync(trigger) Output : (Optional) NIM Output 0 - (-1) V or TTL Output 0 - 3.3 V
  • Beam diameter and quality : ~ 2 mm@633 nm;M2<1.1
  • Beam divergence (Half angle) : < 1 mrad
  • State of polarization : Unpolarized
  • Length of output fiber : 1.5 m
  • Input power : AC 100 - 240 V, 50/60 Hz
  • Data interface : USB



SL-Pico F Series

  • Power stability : < 1 %
  • Output pulse width : < 50 ps (SLF10 : < 300 ps)
  • Internal repetition rate : SLF10 : 5 MHz, SLF15 : 20 MHz, SLF70 : 80 MHz (fixed)
  • Sync(trigger) Output : (Optional) NIM Output 0 - (-1) V or TTL Output 0 - 3.3 V
  • Beam diameter and quality : ~ 2 mm@633 nm;M2<1.1
  • Beam divergence (Half angle) : < 1 mrad
  • State of polarization : Unpolarized
  • Length of output fiber : 1.5 m
  • Input power : AC 100 - 240 V, 50/60 Hz
  • Data interface : USB

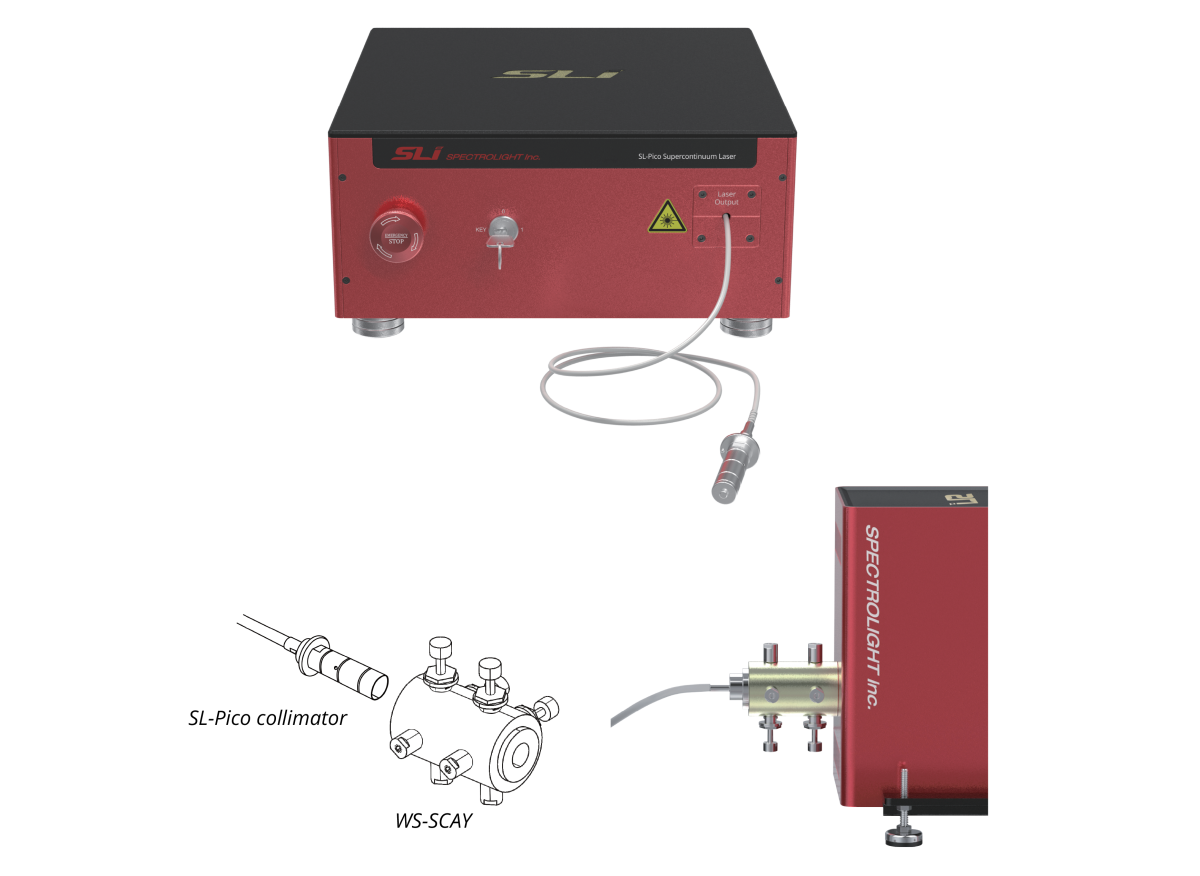

Easy Connection with Tunable Bandpass Filters

All models compatible and tunable with the Flexible Wavelength Selector

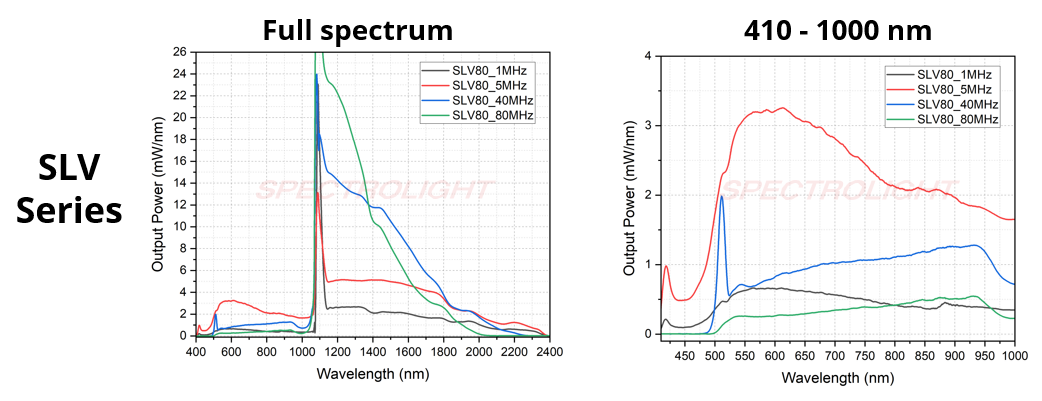

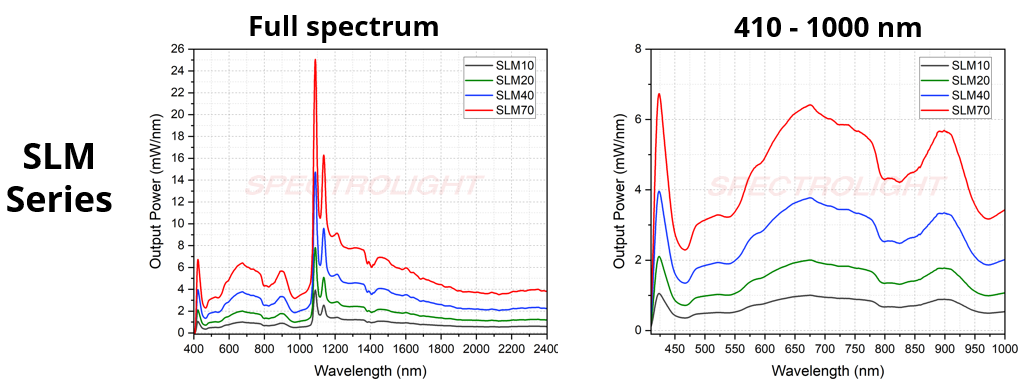

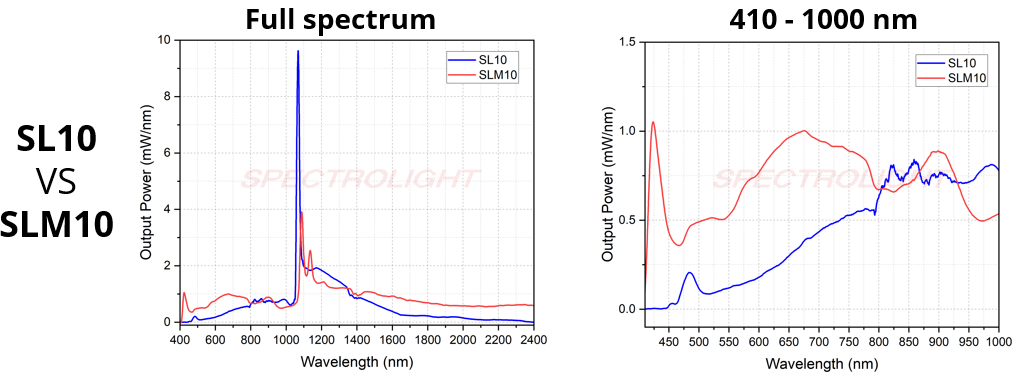

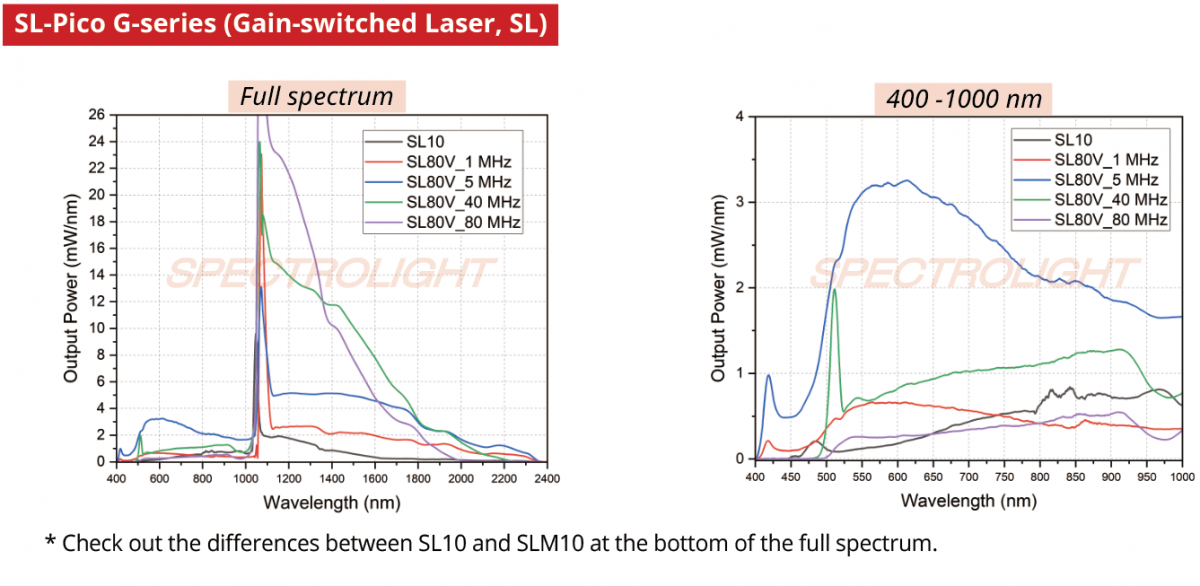

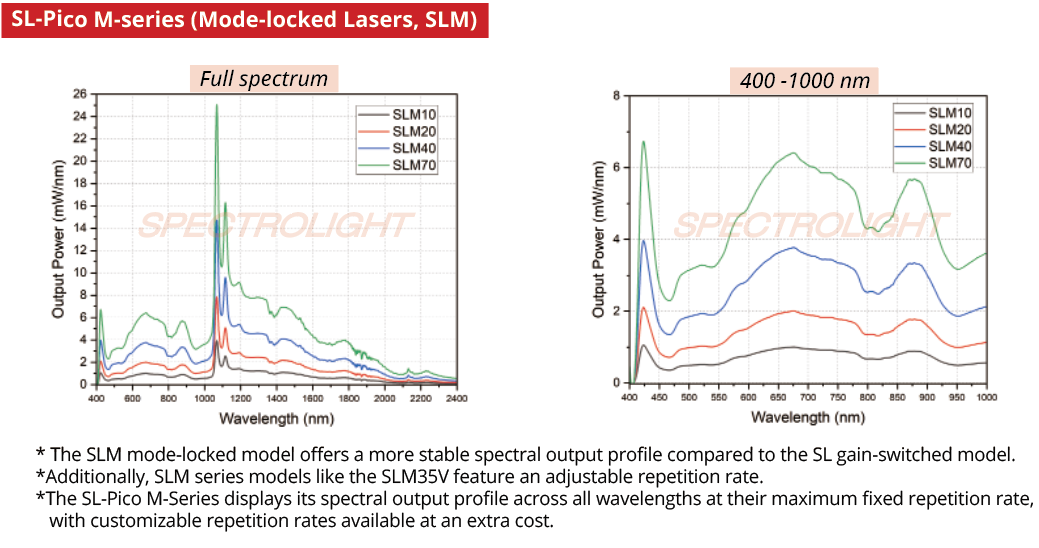

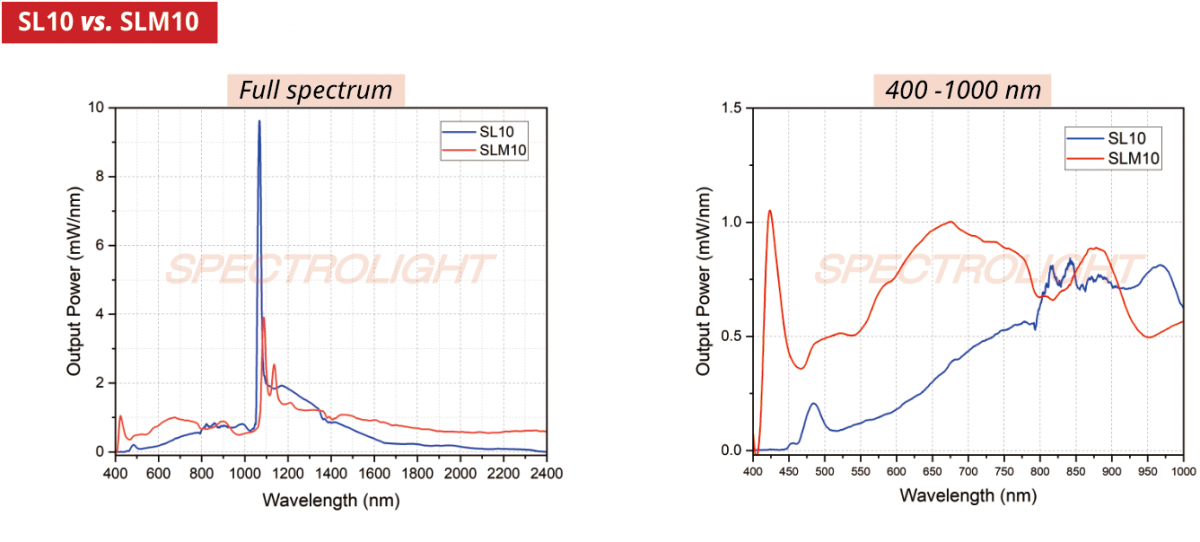

Typical Spectrum of SL-Pico
