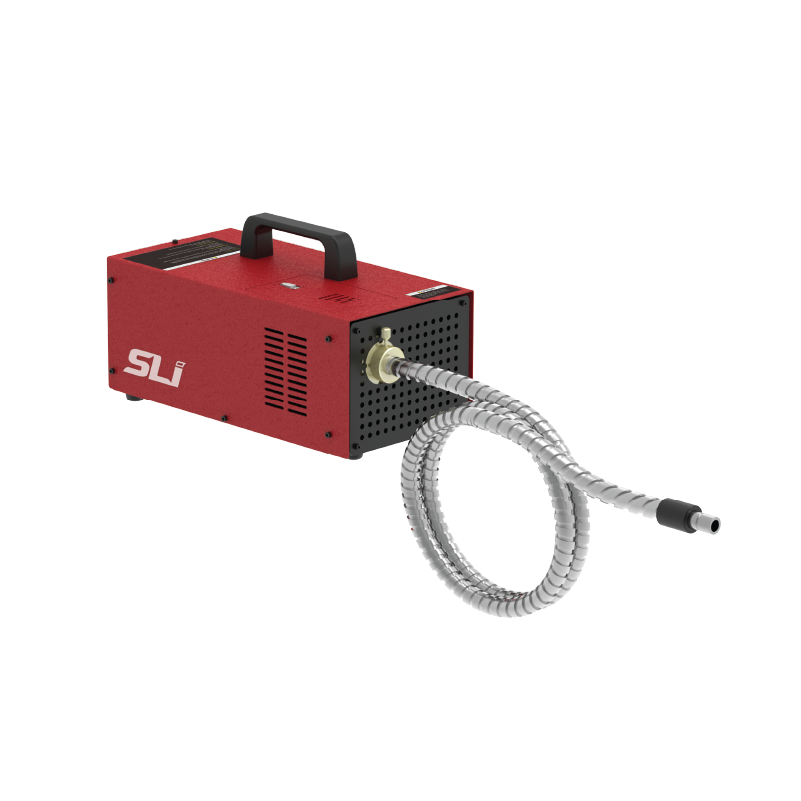

Mighty Light Plus - Tungsten Halogen new

The Mighty Light Plus (MLP-TH) is a broadband light source that provides 10X higher spatial brightness than competitive sources: delivering up to 7 W of collimated output from a 10 mm diameter flexible light guide. Useful output spans 300 to 2500 nm and the low-noise output power is smoothly adjustable from 0 - 100 %. Applications include microscopy, white light interferometry, machine vision, and precision inspection.



/ Key Product Advantages

- Lamp power consumption : 250 W

- Bulb Lifetime : ~ 500 hours

- Type of Lamp : Tungsten Halogen

- Spectral Wavelength : 300 - 2500 nm



For more information about compatibility please contact us at info@spectrolightinc.com



*Currency : US DOLLAR only
*CHECK the SPEC SHEET for the exact specifications of the products

Product Number Specific Description Product Size(mm) Availability Price(USD) Order

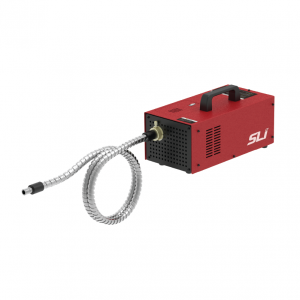

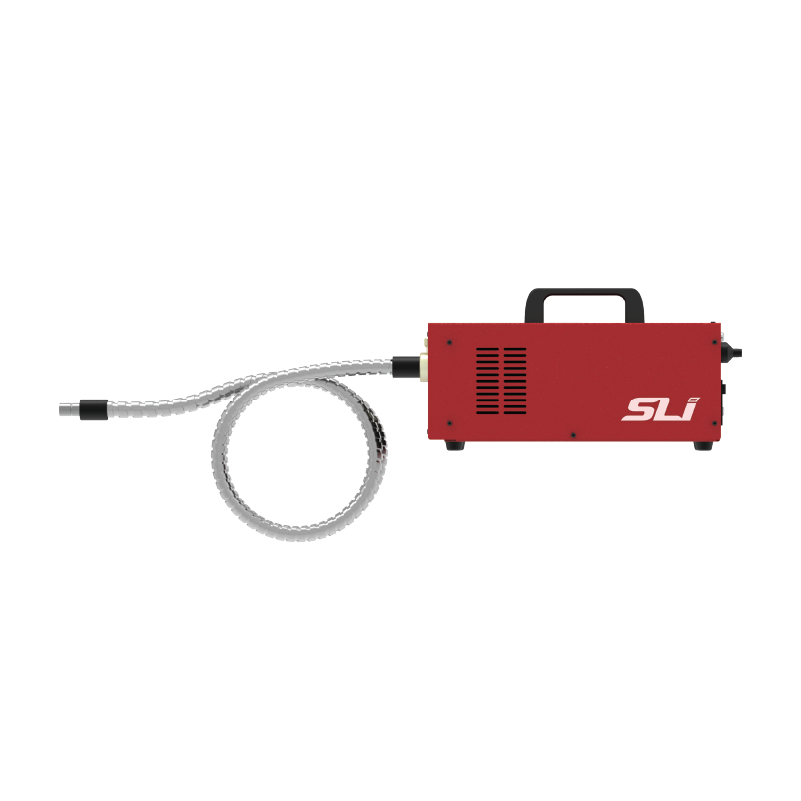

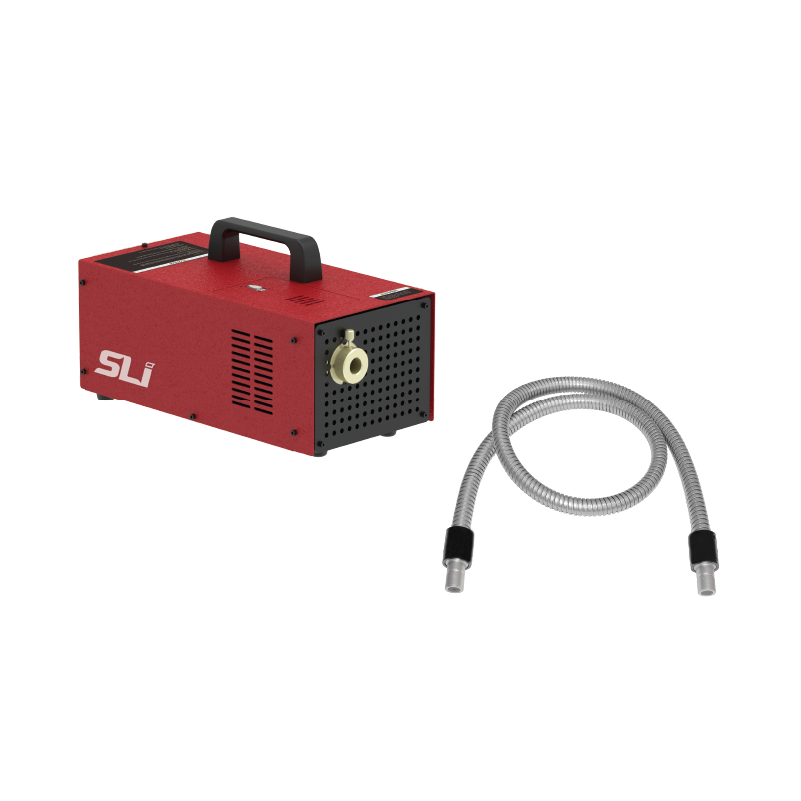

Mighty Light PLUS - Tungsten Halogen Broadband light source, Spectral wavelength : 300 - 2500 nm, Color temperature : 3400 K 320 x 160 x 130 LEADTIME $4,999

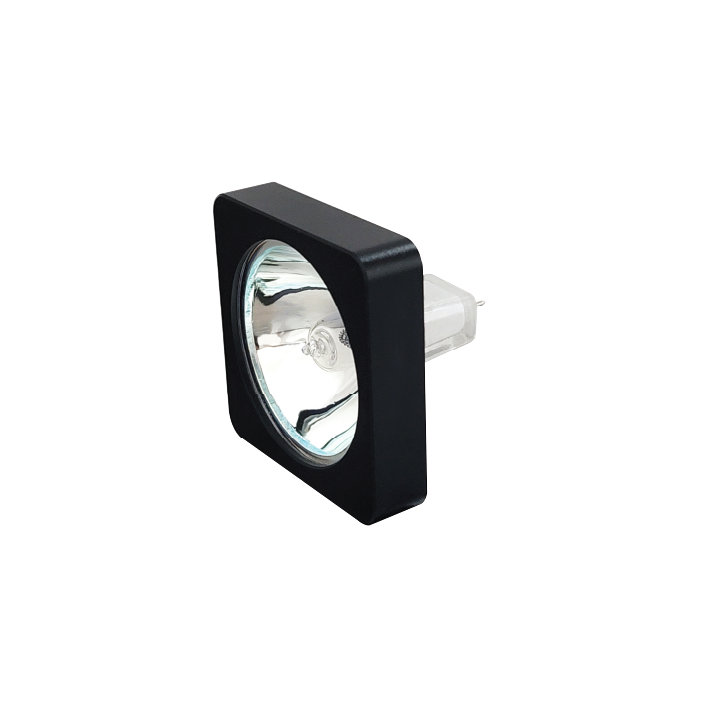

MLP-TH Bulb Spare bulb for Mighty Light Plus Tungsten Halogen LEADTIME $300

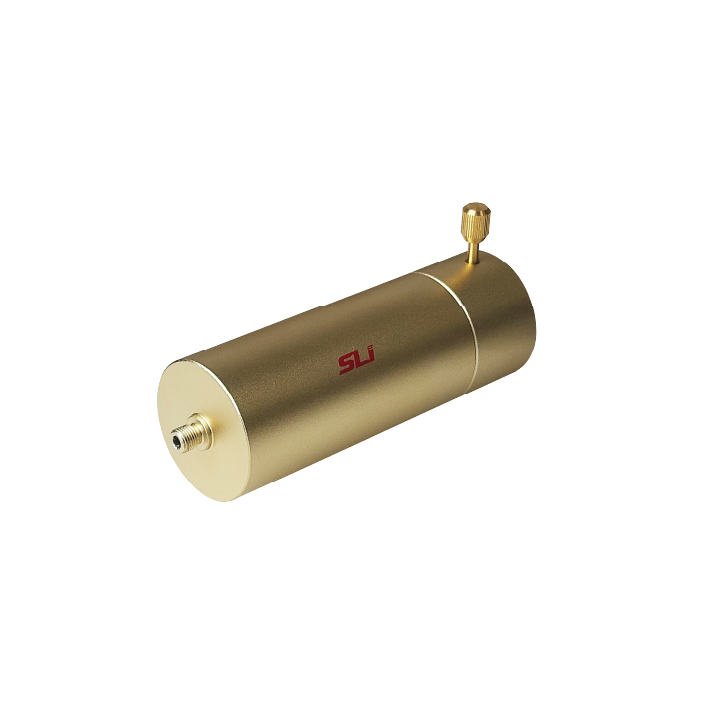

MLP-FA SMA type connector for Mighty Light Plus Tungsten Halogen LEADTIME $500

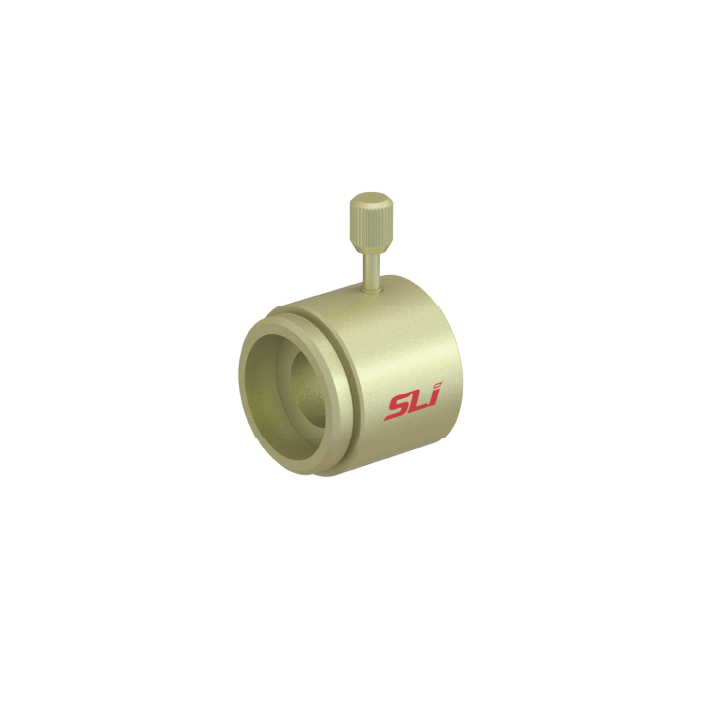

MLP-LGA Light guide adapter for Mighty Light Plus Tungsten Halogen LEADTIME $300

/ Specifications

  • Type of lamp : Tungsten Halogen
  • Lamp power consumption : 250 W
  • Power stability : < 0.7 %
  • Bulb lifetime : ~ 500 hours
  • Color temperature : 3400 K
  • Dimensions : 340 x 160 x 140 mm
  • Power control knob : 0 - 100 %
  • Power supply : DC 24 V at 13 A
  • Electrical requirements : 100 - 240 V AC, 50 - 60 Hz
  • Spectral wavelength : 300 - 2500 nm
  • Effective electrical angle : 300 °



Color Temperature

The Mighty Light tungsten- halogen lamp is operated at a color temperature of 3400 K.

This temperature delivers output from ~ 300 nm while also providing usable power beyond 2500 nm.

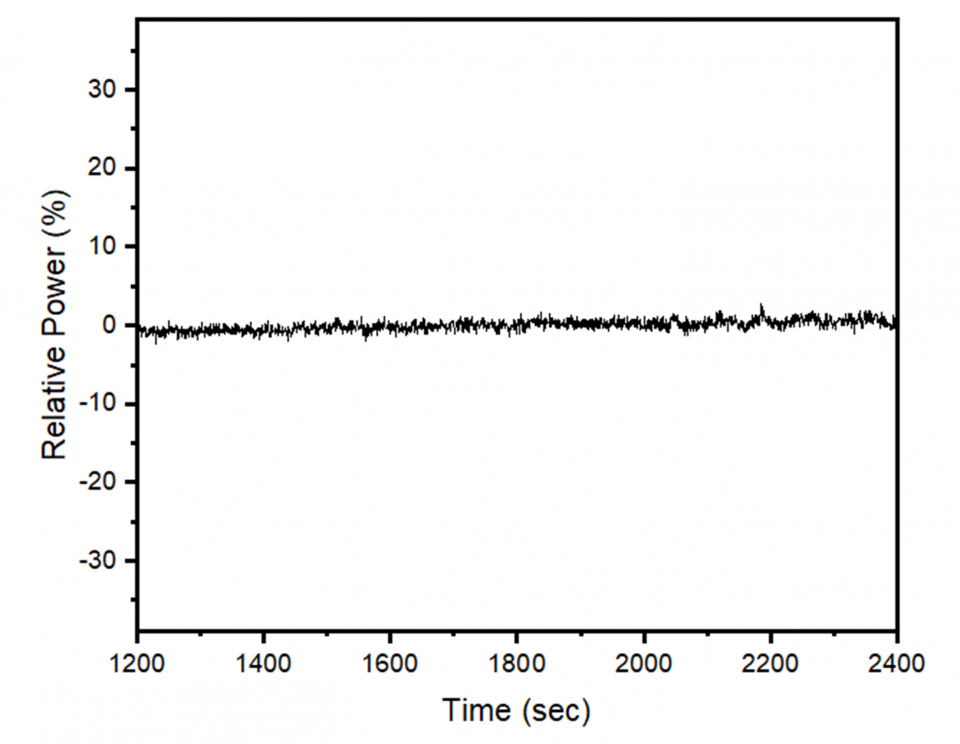

Stable Tunable Light Source

The Mighty light power supply is operated closed loop by a custom control board.

This tight current control results in very low output noise (< 0.7 %, above power 50 %)
