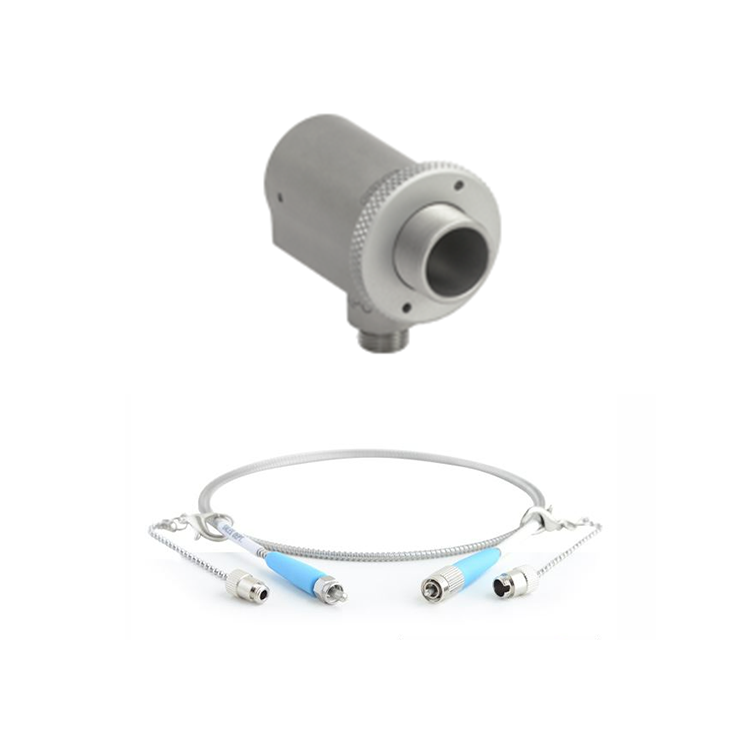

Laser-Driven Light Source Accessories

EQ’s fiber optic cable assemblies must be used with the EQ-99X-FC LDLS. There are two types of fibers available: UV-Vis Solarization Resistant (UV) and Broadband (BB).



Both the UV and BB fibers transmit from 190 nm – 2500 nm. However, the UV fibers are constructed using silica with a high concentration of hydroxyl groups (OH) and are engineered to withstand ultraviolet solarization. The UV fibers are ideal for applications benefiting from enhanced radiance from 190 nm – 350 nm and the BB fibers are preferable for applications that benefit from enhanced radiance from 350 nm – 2500 nm.



*Currency : US DOLLAR only
*CHECK the SPEC SHEET for the exact specifications of the products

Product Number Specific Description Product Size(mm) Availability Price(USD) Order
EQ-99-COL-11-FC EQ-99FC/99XFC Fiber Collimator with FC termination,11 mm diameter beam IN STOCK $2,177
EQ-99-COL-11-SMA EQ-99FC/99XFC Fiber Collimator with SMA termination, 11 mm diameter beam IN STOCK $2,177
EQ-99-COL-6-FC EQ-99FC/99XFC Fiber Collimator with FC termination, 6.6 mm diameter beam IN STOCK $2,177
EQ-99-COL-6-SMA EQ-99FC/99XFC Fiber Collimator with SMA termination, 6.6 mm diameter beam IN STOCK $2,177
BBFIBERX-100-1M-FC-FC Broadband Fiber FC to FC, 100 um core diameter, 1 meter long IN STOCK $956
BBFIBERX-100-1M-FC-SMA Broadband Fiber FC to SMA, 100 um core diameter, 1 meter long IN STOCK $956
BBFIBERX-100-2M-FC-FC Broadband Fiber FC to FC, 100 um core diameter, 2 meters long IN STOCK $1,083
BBFIBERX-100-2M-FC-SMA Broadband Fiber FC to SMA, 100 um core diameter, 2 meters long IN STOCK $1,083
BBFIBERX-200-1M-FC-FC Broadband Fiber FC to SMA, 200 um core diameter, 1 meter long IN STOCK $956
BBFIBERX-200-2M-FC-FC Broadband Fiber FC to FC, 200 um core diameter, 2 meters long IN STOCK $1,083
BBFIBERX-200-2M-FC-SMA Broadband Fiber FC to SMA, 200 um core diameter, 2 meters long IN STOCK $1,083
BBFIBERX-400-1M-FC-FC Broadband Fiber FC to FC, 400 um core diameter, 1 meter long IN STOCK $956
BBFIBERX-400-1M-FC-SMA Broadband Fiber FC to SMA, 400 um core diameter, 1 meter long IN STOCK $956
BBFIBERX-400-2M-FC-FC Broadband Fiber FC to FC, 400 um core diameter, 2 meters long IN STOCK $1,083
BBFIBERX-400-2M-FC-SMA Broadband Fiber FC to SMA, 400 um core diameter, 2 meters long IN STOCK $1,083
BBFIBERX-600-1M-FC-FC Broadband Fiber FC to FC, 600 um core diameter, 1 meter long IN STOCK $956
BBFIBERX-600-1M-FC-SMA Broadband Fiber FC to SMA, 600 um core diameter, 1 meter long IN STOCK $956
BBFIBERX-600-2M-FC-FC Broadband Fiber FC to FC, 600 um core diameter, 2 meters long IN STOCK $1,083
BBFIBERX-600-2M-FC-SMA Broadband Fiber FC to SMA, 600 um core diameter, 2 meters long IN STOCK $1,083
UVFIBERX-115-1M-FC-FC UV Fiber FC to FC, 115 um core diameter, 1 meter long IN STOCK $873
UVFIBERX-115-1M-FC-SMA UV Fiber FC to SMA, 115 um core diameter, 1 meter long IN STOCK $873
UVFIBERX-115-2M-FC-FC UV Fiber FC to FC, 115 um core diameter, 2 meters long IN STOCK $989
UVFIBERX-115-2M-FC-SMA UV Fiber FC to SMA, 115 um core diameter, 2 meters long IN STOCK $989
UVFIBERX-230-1M-FC-FC UV Fiber FC to FC, 230 um core diameter, 1 meter long IN STOCK $873
UVFIBERX-230-1M-FC-SMA UV Fiber FC to SMA, 230 um core diameter, 1 meter long IN STOCK $873
UVFIBERX-230-2M-FC-FC UV Fiber FC to FC, 230 um core diameter, 2 meters long IN STOCK $1,164
UVFIBERX-230-2M-FC-SMA UV Fiber FC to SMA, 230 um core diameter, 2 meters long IN STOCK $1,164
UVFIBERX-455-1M-FC-FC UV Fiber FC to SMA, 455 um core diameter, 1 meter long IN STOCK $1,164
UVFIBERX-455-1M-FC-SMA UV Fiber FC to SMA, 455 um core diameter, 1 meter long IN STOCK $1,164
UVFIBERX-455-2M-FC-FC UV Fiber FC to FC, 455 um core diameter, 2 meters long IN STOCK $1,397
UVFIBERX-455-2M-FC-SMA UV Fiber FC to SMA, 455 um core diameter, 2 meters long IN STOCK $1,397

/ Specifications

  • Wavelength Range : 190 nm – 2500 nm
  • Core Size : Refer to the Data sheet for details
  • Cable Length : 1 meter or 2 meter
  • Output Termination : FC or SMA 905
  • Minimum Bend Radius : 30 mm
  • Core Material : Silica
  • Length : 1 meter or 2 meter
  • Type : Step-Index
  • Mode : Multimode
  • Numerical Aperture : 0.22 NA
  • Jacket/Armor Material : Stainless Steel
  • Outer Diameter : 3.25 mm
  • Operating Temperature : 15-35°C
  • Lifetime : 10,000 hours

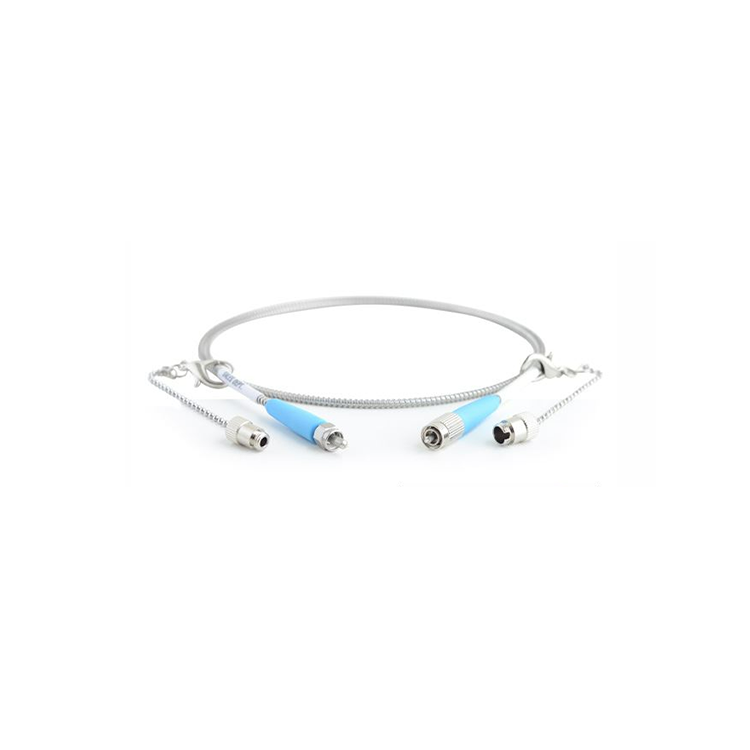

/ Fiber: Key Features and Benefits

  • High transmission from 190nm – 2500nm
  • Solarization resistant
  • 100μm through 600μm core sizes available
  • 1 meter and 2 meter cable lengths available
  • High damage threshold
  • Combined with the EQ-99X-FC-S, the cables provide a turn-key system for demanding, high brightness applications

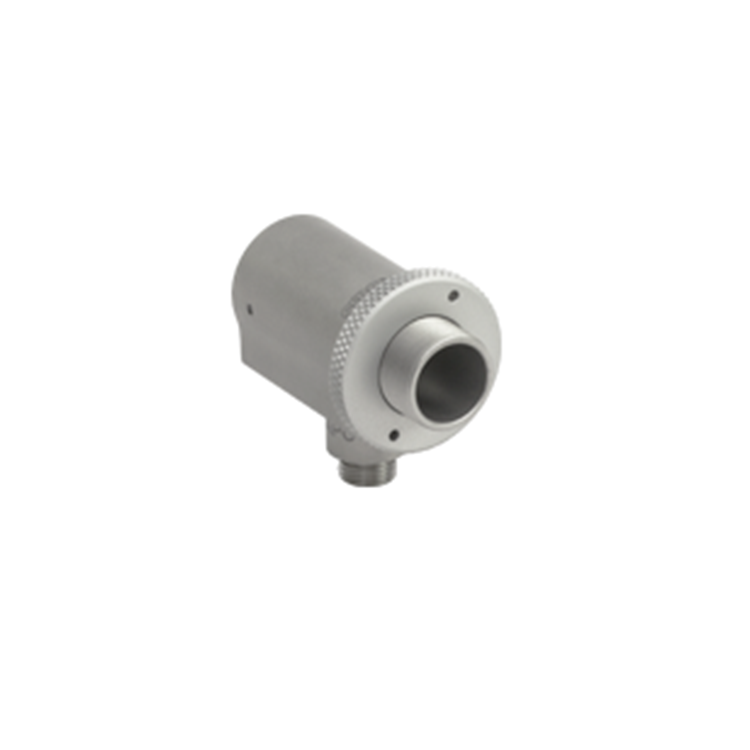

/ Fiber Collimator: Key Features and Benefits

  • Designed to collimate EQ-99FC fiber output
  • Reflective mirror assembly
  • Efficiently collimate from 200 – 2400 nm
  • Two output beam sizes available (6.7 mm, 11 mm diameter)
  • SMA, FC fiber connection
  • Low divergence (depends on fiber size)

Broadband Optical Power

The UV fibers are made of high OH silica and are ideal for transmitting UV wavelengths without suffering from solarization/degradation. There are characteristic dips spectral power in the near-infrared range due to the OH absorption. (1m)





Tunable Light Source

Energetiq LDLS light sources & SLi Wavelength Selector application becomes Tunable Light Source.

They are connected via fiber optics and fiber collimators.
